Ultra-Compact, Slim Type Photoelectric Sensors BTS Series
DESCRIPTION
Product Overview
The BTS Series ultra-compact, slim type photoelectric sensors are perfect for installations in restricted spaces and compact applications. With a width of only 7.2 mm, these sensors feature built-in amplifiers and are designed to detect even the smallest objects, such as metallic wires and semiconductor chips. The BTS Series is constructed with an IP67-rated protection structure and stainless steel mounting brackets, offering durable and reliable sensing solutions across various environments.
Key Features
Compact and Slim Design
- Ultra-Slim Width: At just 7.2 mm wide, the BTS Series sensors are ideal for applications where space is at a premium.
- Built-In Amplifiers: These sensors are equipped with built-in amplifiers, making them easy to install and integrate into your systems.
Precision Detection
- Detect Tiny Target Objects: Capable of detecting minuscule objects, including Ø 0.15 mm semiconductor chips, ensuring high-precision sensing in critical applications.
- Multiple Detection Methods: Available in Through-beam, Retroreflective, and Convergent Reflective types to suit different sensing requirements.
Durable and Reliable
- Stainless Steel Mounting Brackets: Constructed with SUS304 stainless steel, these sensors provide robust installation and long-term durability.
- IP67 Protection Rating: Designed to withstand dust and water immersion, making them suitable for harsh industrial environments.
Fast and Accurate Performance
- Quick Response Time: With a response time of ≤ 1 ms, the BTS Series ensures rapid and accurate detection of fast-moving objects.
- Dual Indicators: The sensors feature both operation (red) and stability (green) indicators for easy monitoring of sensor status.
Applications
The BTS Series photoelectric sensors are suited for a wide range of applications, including:
- Industrial Automation: Detecting small components on production lines.
- Electronics Manufacturing: Sensing tiny objects like semiconductor chips and metallic wires.
- Compact Machinery: Integration into machines where space is limited.
Available Models
Through-Beam Type (BTS1M)
- Sensing Distance: Up to 1 meter.
- Min. Target Size: Detects objects as small as Ø 2 mm.
- Applications: Ideal for long-distance sensing where a clear line of sight is available.
Retroreflective Type (BTS200)
- Sensing Distance: 10 to 200 mm.
- Min. Target Size: Detects objects as small as Ø 2 mm.
- Applications: Suitable for reflective target detection with a reflector.

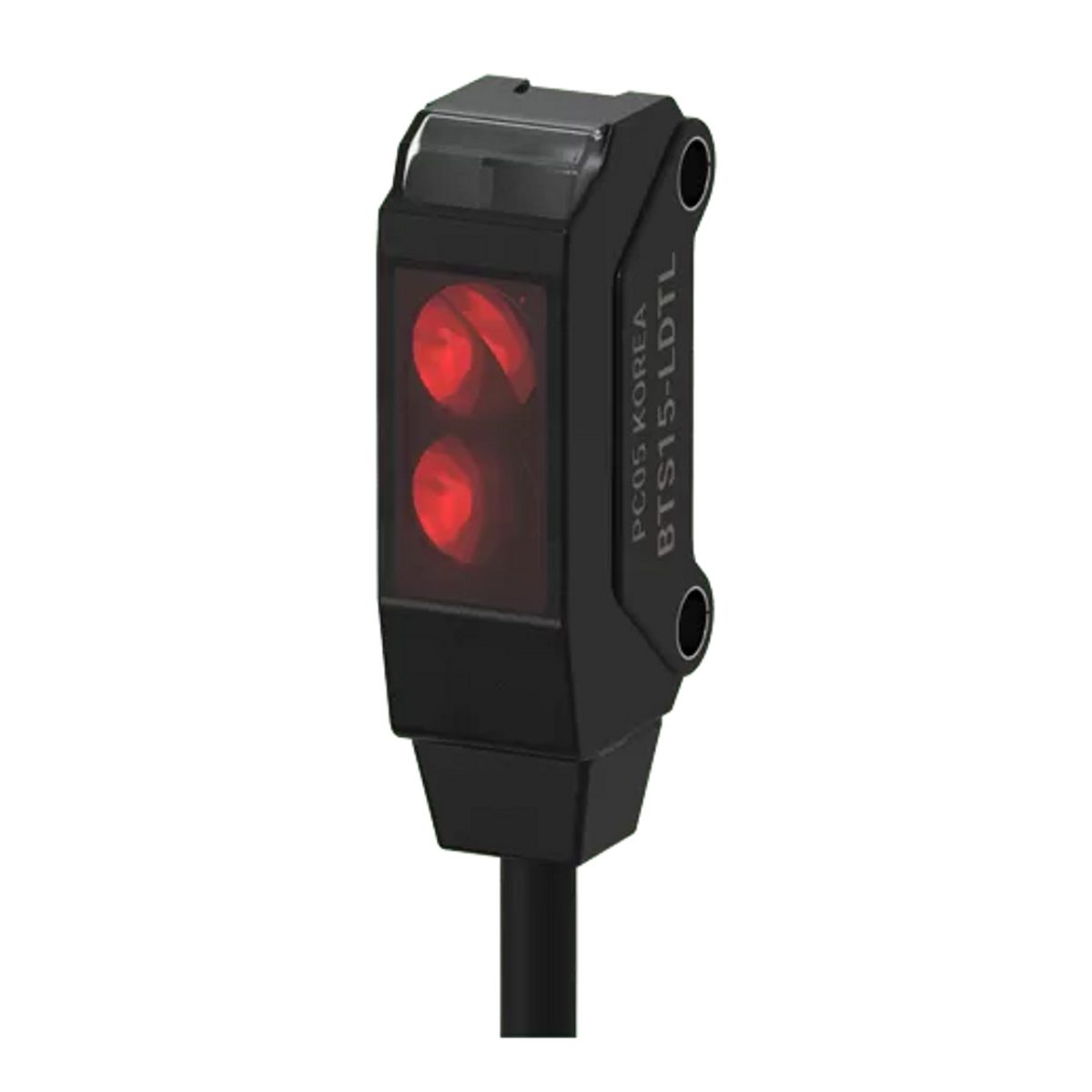

Convergent Reflective Type (BTS15/BTS30)
- Sensing Distance: 5 to 15 mm or 5 to 30 mm.
- Min. Target Size: Detects objects as small as Ø 0.15 mm.
- Applications: Perfect for short-distance, high-precision detection of tiny objects.
Accessories
Sold Separately
- Reflectors: MS Series, ideal for enhancing retroreflective sensing.
- Retroreflective Tape: MST Series, for use in reflective applications.
- Bracket B: Additional mounting brackets for versatile installation.
- Slits for Through-Beam Type: Available in sticker (BTS1M-ST) and SUS material (BTS1M-ST-T) versions, allowing for finer control over sensing parameters.
Installation and Setup
Mounting
- Stainless Steel Brackets: Ensure secure and stable installation, resistant to environmental wear.
- Compact Size: The ultra-slim design allows for easy integration into space-constrained setups.
Electrical Connection
- Power Supply: Operates on 12-24 VDC, accommodating various industrial power setups.
- Control Output: Available in NPN or PNP open collector output configurations, offering flexibility in system integration.
