Shaft Coupling 6mm Bore Diameter, Set Screw Connection – ERB-A-19S-06/06
DESCRIPTION

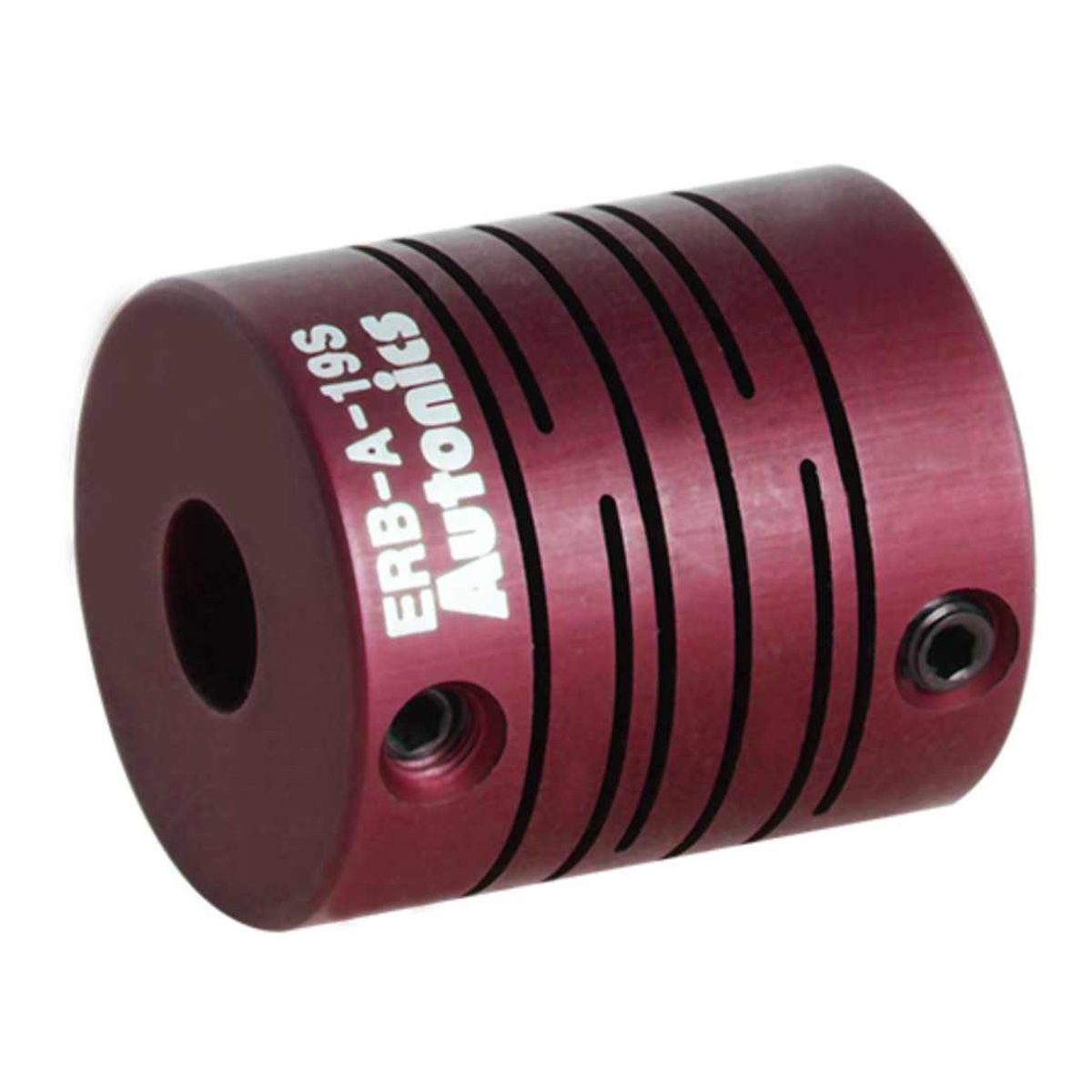

Autonics Flexible Shaft Coupling, ERB-A-19S-06/06
19 mm External diameter, Set screw type connection, 6 mm Bore diameter
The Autonics rotary encoder ERB-A-19S-06/06 is an aluminum coupling that has high strength and elasticity which protects the rotary encoders. This rotary encoder comes in a round cylindrical shape, maximum torque of 1.2N.m, external diameter of 19mm and rated torque is 0.6N.m.
As a quick report, this rotary encoder provides:
- Set screw connection method
- 20000rpm Max. allowable revolution
- 1.2N.m (12.17kgf.cm) Max. torque
- 0.6N.m (6.08kgf.cm) Rated torque
- M3 Mounting bolt
- 0.7N.m Mounting torque
- Zero (0) Backlash
Body
This Autonics rotary encoder’s case is made of Aluminum(AL 7075-T6), Alumite surface.
Connection
The Autonics rotary encoder ERB-A-19S-06/06 features Set screw type connection.
Allowable misalignment
The ERB-A-19S-06/06 features Min allowable misalignment is Ø4mm as well as Max allowable misalignment is Ø8mm.
Industries / applications
- Potato chip manufacturing and packaging process
- Box Labeling
