Shaft Coupling 6 & 10 mm Bore Diameter, Set Screw Connection – ERB-A-26S-06/10
DESCRIPTION

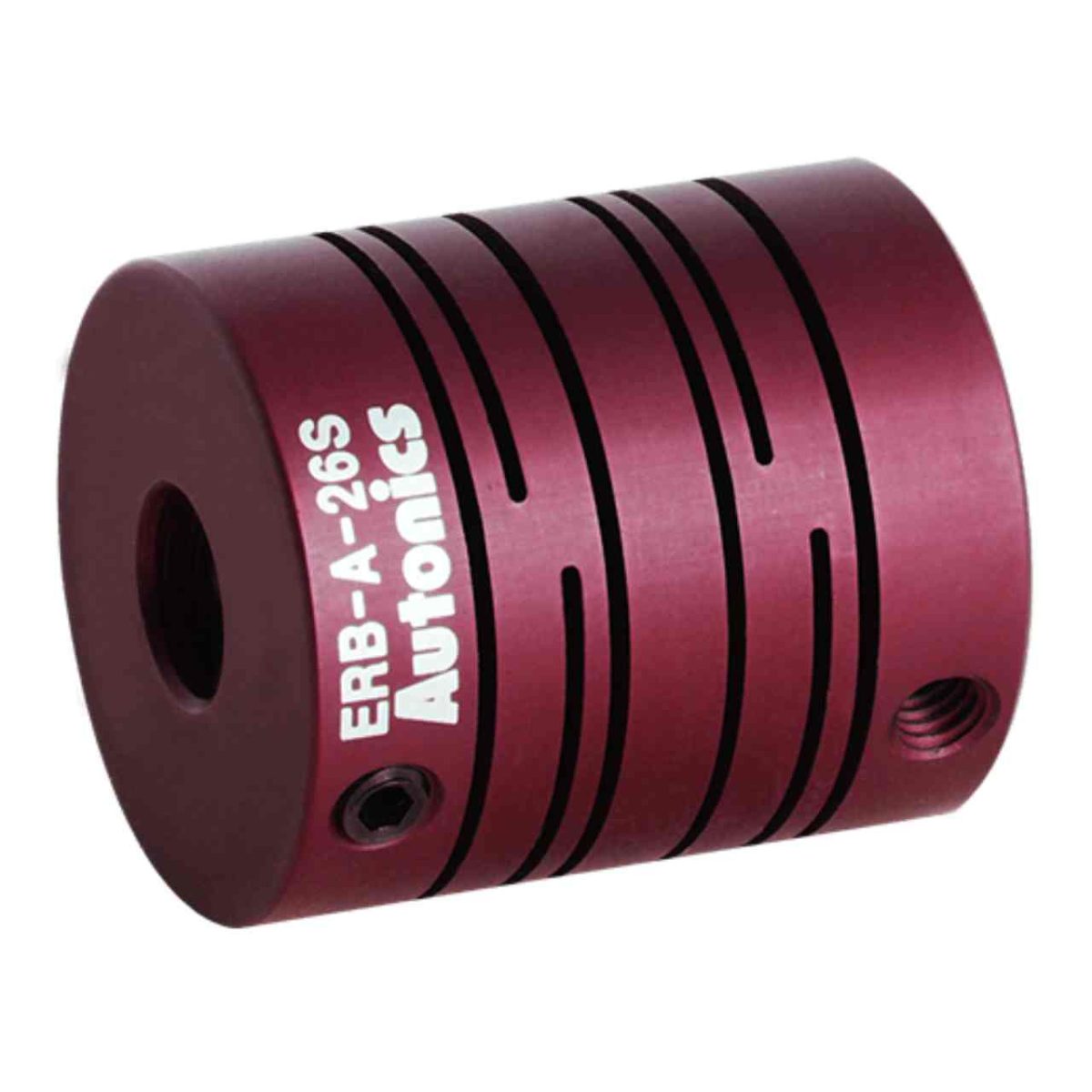

Autonics Flexible Shaft Coupling, ERB-A-26S-06/10
26 mm External diameter, Set screw type connection, 6/10 mm Bore diameter
The Autonics rotary encoder ERB-A-26S-06/10 is an aluminum coupling that has high strength and elasticity which protects the rotary encoders. This rotary encoder comes in a round cylindrical shape, maximum torque of 3.0N.m, external diameter of 26mm and rated torque is 1.5N.m.
As a quick report, this rotary encoder provides:
- Set screw connection method
- 15000rpm Max. allowable revolution
- 3.0N.m (30.42kgf.cm) Max. torque
- 1.5N.m (15.21kgf.cm) Rated torque
- Ø6mm/Ø10mm Inner diameter of both ends
- M4 Mounting bolt
- 1.7N.m Mounting torque
- Zero (0) Backlash
Body
This Autonics rotary encoder’s case is made of Aluminum(AL 7075-T6), Alumite surface.
Connection
The Autonics rotary encoder ERB-A-26S-06/10 features Set screw type connection.
Allowable misalignment
The ERB-A-26S-06/10 features Min allowable misalignment is Ø5mm as well as Max allowable misalignment is Ø12mm.
Industries / applications
- Potato chip manufacturing and packaging process
- Box Labeling
