Rectangular Proximity Sensor 5 mm, PNP NO – DW-AD-603-C5
DESCRIPTION

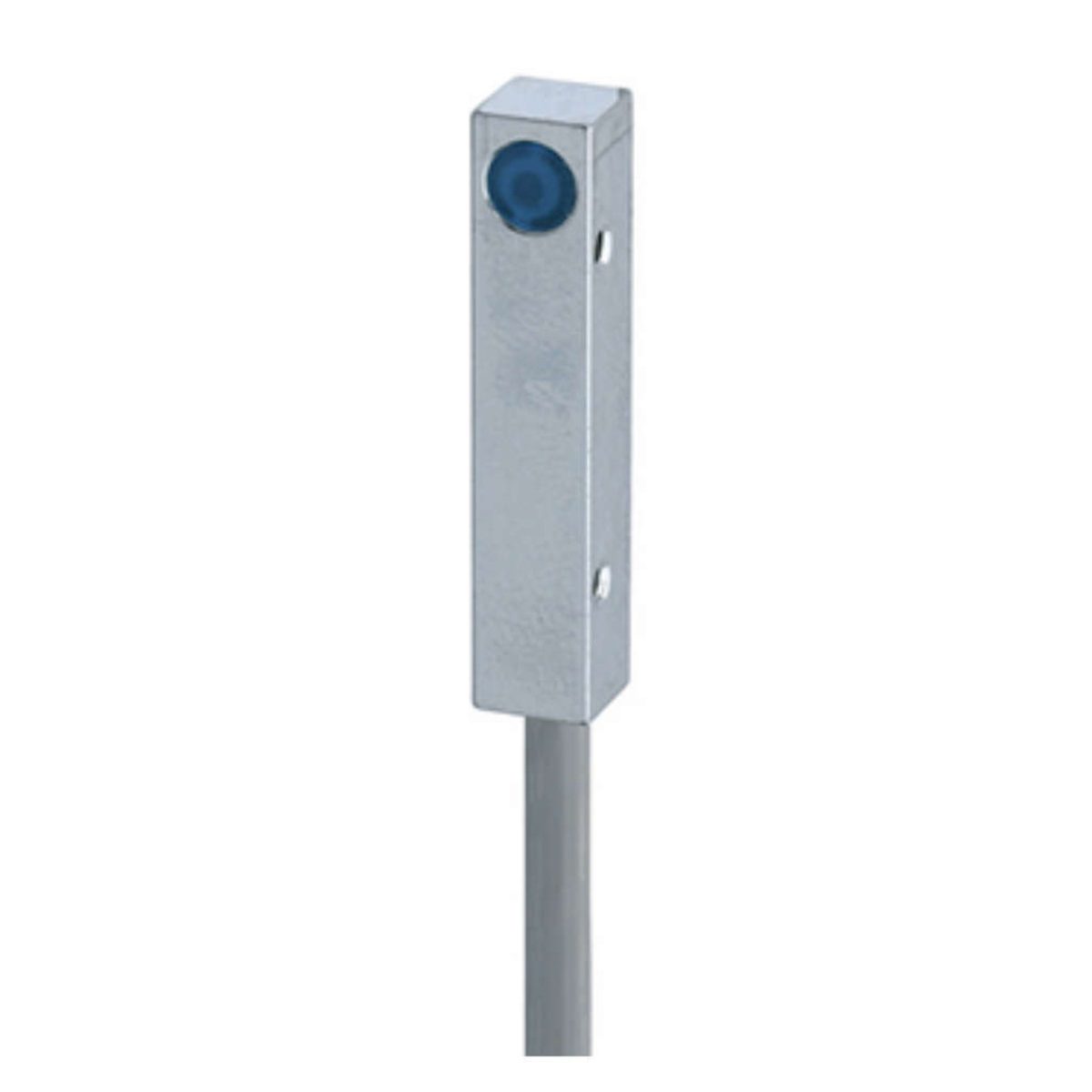

Contrinex inductive proximity sensor 5×5 C5, PNP NO DW-AD-603-C5
Embeddable, 0.8 mm Sensing distance, IO-Link, 3 wire type
Body
The DW-AD-603-C5 has housing size of 5 x 5 C5 and the mounting type is embeddable. This proximity sensor has Nickel-chrome-plated brass housing material and has the enclosure rating IP 67.
Connection
Connection of the DW-AD-603-C5 inductive proximity sensor is 2 m cable. This cable material is made of PUR and it is a 3 wire connection.
Sensing specifications
The diameter of DW-AD-603-C5 sensing side is 5 x 5 mm and the sensing distance of this small proximity switch is 0.8 mm.
Control output
The control output of this products is Normally open PNP with switching frequency of 5000 Hz and the input for this proximity sensor is 10 to 30 VDC.
Temperature
Ambient operating temperature for DW-AD-603-C5 proximity sensor is from -25 to +70°C and temperature drift is ≤ 10% Sr.
Industries / applications:
- Precise motion control.
- Optical switches.
- Hard drive control.
- Semiconductor lithography.
- Semiconductor measurements.
- Movement mechanisms.
- Medical diagnosis.
- MEMS accelerometer.
- Measuring rotating axis.
- Seismic monitoring.
