Rectangular Proximity Sensor 17 mm, PNP NO – PSN17-5DP

Autonics proximity sensor 17mm, PNP NO PSN17-5DP

Rectangular, Cable type connection, 5 mm Sensing distance

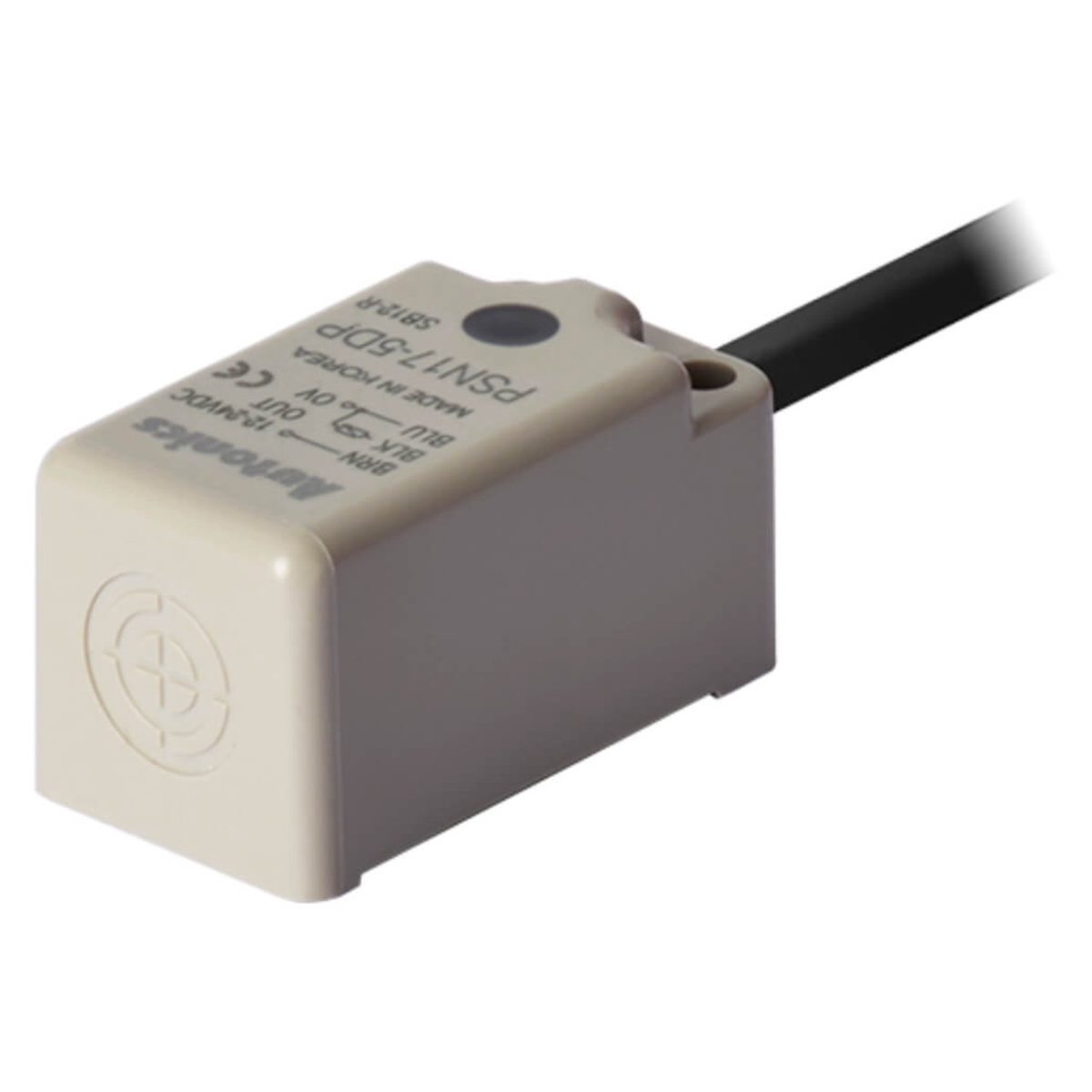

The Autonics rectangular proximity sensor PSN17-5DP features outstanding noise protection and stable sensing performance due to its specialized sensor IC developed by Autonics. This proximity sensor comes in a Rectangular shape, sensing distance of 5mm, sensing side diameter and frame size 17mm and rectangular installation. The standard rectangular inductive sensor can be used in diverse applications requiring non-contact detection of metallic objects.

As a quick report, this inductive proximity sensor provides:

• 17 mm frame size

• PNP Normally Open control output

• 5 mm sensing distance

• Rectangular installation

• Improved noise resistance

• Long life cycle and high reliability

• Reverse polarity, surge, and over-current protection

• IP67 ingress protection structure according to IEC standards

• Red LED status indicator

• Alternative to micro switches and limit switches

• Shorten the time of maintenance with the body

Body

This Autonics PS Series proximity sensor’s case and nut parts are made of Heat-resistant ABS. The PSN17-5DP features IP67 ingress protection.

The red LED on its body acts as the process indicator.

Connection

The Autonics rectangular proximity sensor PSN17-5DP features standard cable type connection. This cable covers the sensor’s 3 wires. It is 4 mm in diameter and 2 meters in length.

Sensing specifications

This inductive sensor’s frame size is 17mm. The maximum distance that this sensor can detect its standard sensing target, which is an 18×18×1 mm piece of iron, is 5 mm. This so-called sensing distance differs from one sensing target to another, based on their material, size, etc.

Although almost no one talks about the setting distance of an inductive sensor, it is a big deal to know this concept. Every sensor can detect its standard sensing target in a specified range, no matter what changes occur in ambient temperature, voltage fluctuations, etc. This distance, which is called the setting distance, is from 0 to 3.5 mm for this proximity sensor.

Control output

The PSN17-5DP features PNP Normally Open control output. PNP stands for Positive-Negative-Positive transistors.

Temperature

There are limitations in temperature and humidity in which PSN17-5DP rectangular proximity sensor is used:

• Storage temperature: -30 … 80°C

• Storage humidity: 35 to 95%RH

• Ambient temperature: -25 … 70°C

• Ambient humidity: 35 to 95%RH

Environment resistance is rated at no freezing or condensation.

Industries / applications

• Elevator industry

• Rubber Extrusion / Plastic Injection Molding Process

• Automation system example of an elevator, escalator, and parking system
