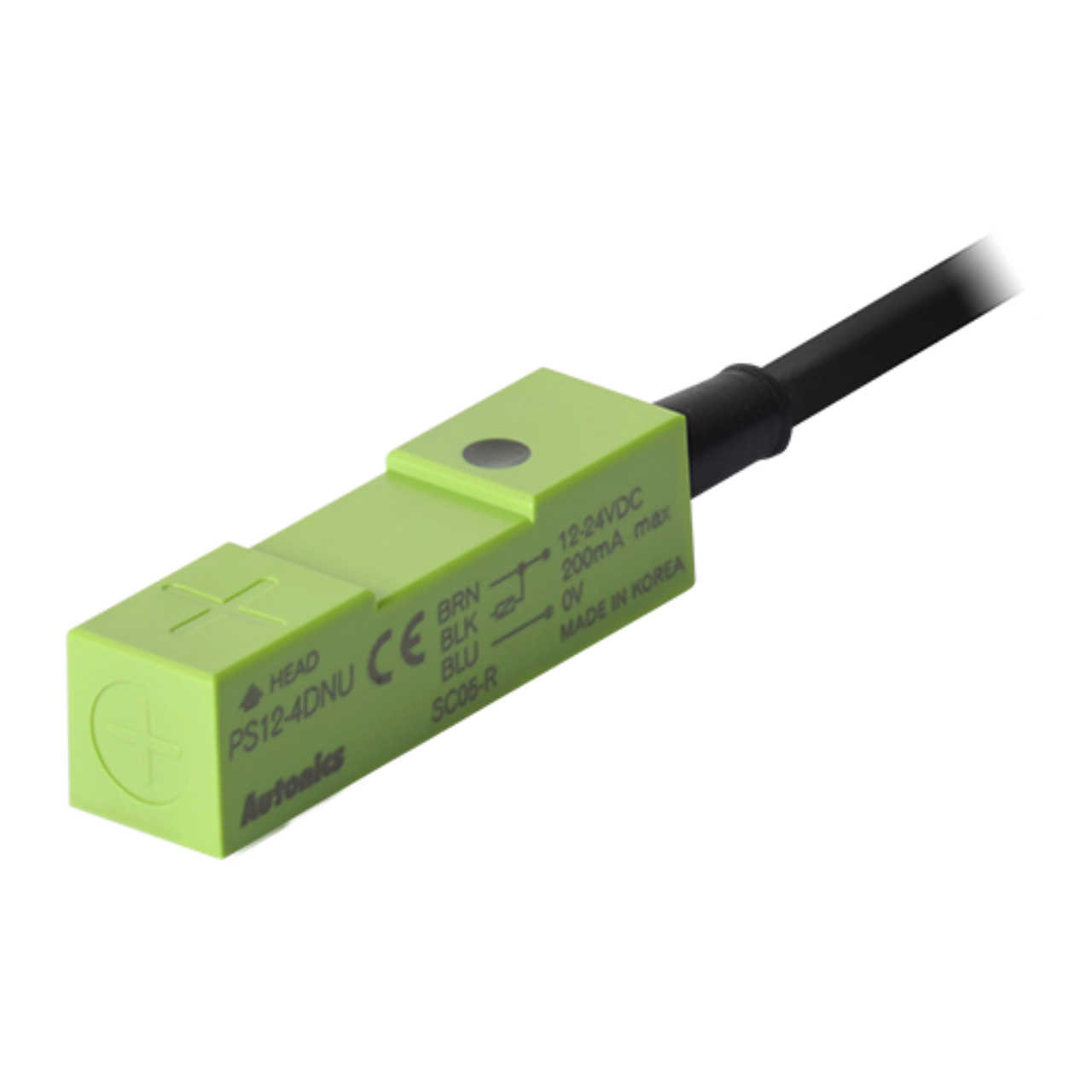

Rectangular Proximity Sensor 12 mm, NPN NO – PS12-4DNU

Autonics proximity sensor 12mm, NPN NO PS12-4DNU

Rectangular, Cable type connection, 4 mm Sensing distance

The Autonics proximity sensor PS12-4DNU features outstanding noise protection and stable sensing performance due to its specialized sensor IC developed by Autonics. This NPN proximity switch comes in a Rectangular shape, sensing distance of 4mm, sensing side diameter and frame size 12mm and rectangular installation. The standard rectangular inductive sensor can be used in diverse applications requiring non-contact detection of metallic objects.

As a quick report, this inductive proximity sensor provides:

• 12 mm frame size

• NPN Normally Open control output

• 4 mm sensing distance

• Rectangular installation

• Shorten the time of maintenance with the body

• Improved noise resistance

• Long life cycle and high reliability

• Reverse polarity, surge, and over-current protection

• IP67 ingress protection structure according to IEC standards

• Red LED status indicator

• Alternative to micro switches and limit switches

Body

This Autonics proximity sensor’s case and nut parts are made of Heat-resistant ABS.

The PS12-4DNU features IP67 ingress protection.

The red LED on its body acts as the process indicator.

Connection

The Autonics NPN proximity switch PS12-4DNU features standard cable type connection. This black cable covers the sensor’s 3 wires. It is 4 mm in diameter and 2 meters in length.

Sensing specifications

This inductive sensor’s frame size is 12mm. The maximum distance that this sensor can detect its standard sensing target, which is a 12×12×1 mm piece of iron, is 4 mm. This so-called sensing distance differs from one sensing target to another, based on their material, size, etc.

Although almost no one talks about the setting distance of an inductive sensor, it is a big deal to know this concept. Every sensor can detect its standard sensing target in a specified range, no matter what changes occur in ambient temperature, voltage fluctuations, etc. This distance, which is called the setting distance, is from 0 to 2.8 mm for this Autonics PS Series proximity sensor.

Control output

The PS12-4DNU features NPN Normally Open control output. NPN stands for Negative-Positive-Negative transistors.

Temperature

There are limitations in temperature and humidity in which PS12-4DNU NPN proximity switch is used:

• Storage temperature: -30 … 80°C

• Storage humidity: 35 to 95%RH

• Ambient temperature: -25 … 70°C

• Ambient humidity: 35 to 95%RH

Environment resistance is rated at no freezing or condensation.

Industries / applications

• Elevator industry

• Rubber Extrusion / Plastic Injection Molding Process

• Automation system example of an elevator, escalator, and parking system
