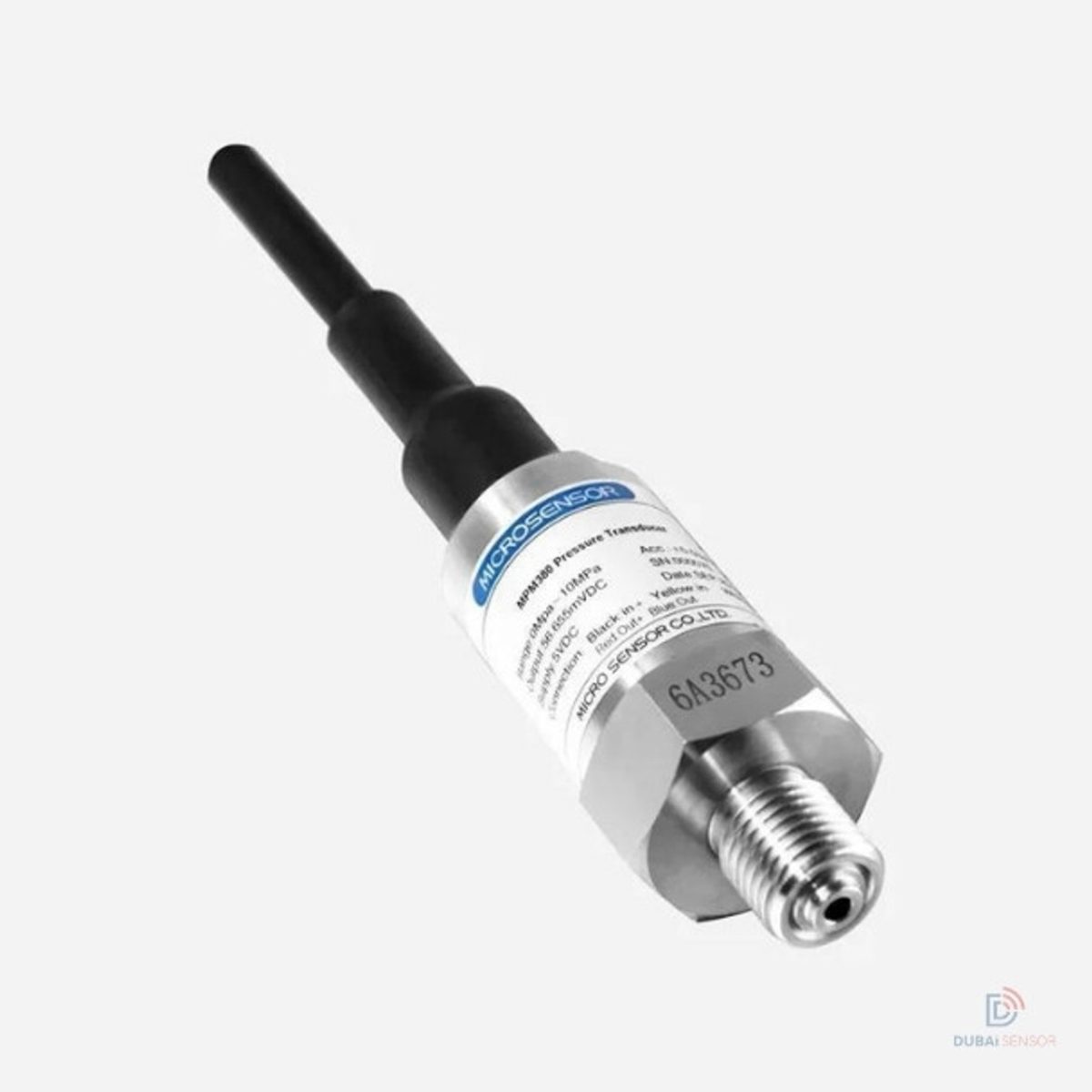

Piezoresistive Pressure Transducer MPM380 Series
DESCRIPTION
Introduction
The Piezoresistive Pressure Transducer MPM380 Series is engineered for high accuracy and stability, featuring an OEM piezoresistive pressure sensor encased in a robust stainless steel housing. This device is ideal for applications in food, medicine, and sanitation fields, where easy cleaning and compatibility with various media are required.
Features
- Material: Full stainless steel construction ensures durability and reliability under varied environmental conditions.
- Connection Types: Options for either thread or plug connections cater to diverse installation requirements.
- Calibration: Utilizes laser trimming to compensate for zero and full-scale thermal errors.
- Sensor Type: Features a solid piezoresistive pressure cell, renowned for its stability and reliability.
- Connection Mode: Available with either cable or plug connections, allowing for flexible setup depending on application needs.
Specifications
- Pressure Range: From vacuum up to 100 MPa, accommodating a wide array of industrial applications.
- Overpressure Limit: Capable of withstanding up to two times the full-scale range or 110 MPa, ensuring safety and device integrity.
Optimized Power and Signal Output
- Power Supply: Requires a minimal 1.5 mA DC, optimizing energy consumption.
- Signal Output: Ensures strong signal integrity with outputs exceeding 70 mV DC.
Precision and Reliability
- Accuracy: Offers high precision with accuracy as low as ±0.1% of full scale.
- Stability: Long-term stability marked at ±0.3% FS per year, guaranteeing consistent performance.
Operating Conditions
- Temperature Suitability: Operates effectively within a broad temperature range from -30°C up to 80°C.
- Response Time: Rapid response time of ≤1ms for real-time monitoring.
Electrical and Physical Construction
The MPM380 series is designed with a user-friendly interface, including a standardized plug connection and an optional cable connection. Each connection point is color-coded for easy installation.
Customization and Ordering
- Special Requirements: Customers can contact the company directly for any specific needs or custom configurations.
- Ordering Options: Choose from a variety of configurations including pressure range, connection type, and cable length.
