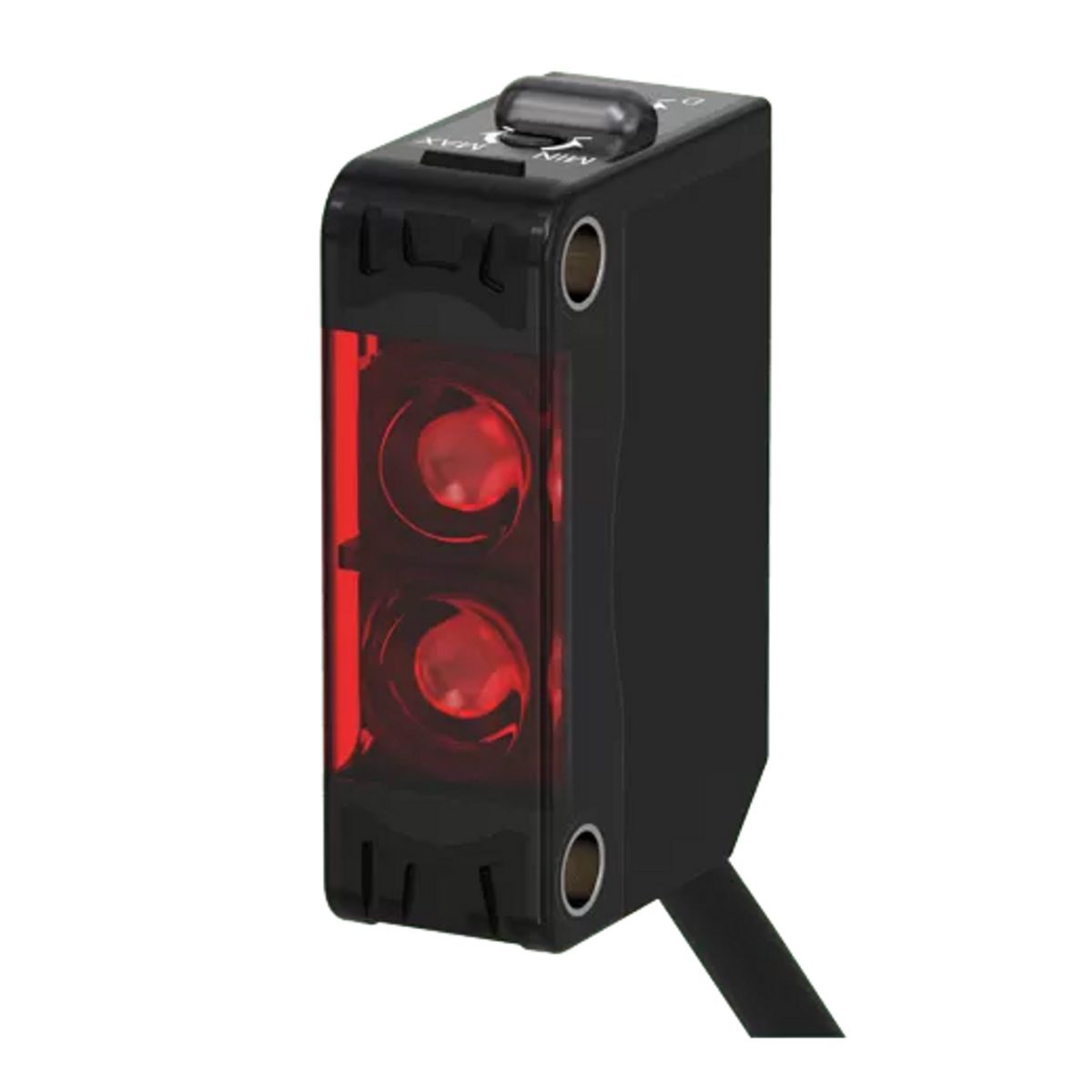

Photoelectric Sensors for PCB Detection BJP Series
DESCRIPTION
Product Overview
The BJP series photoelectric sensors are specifically designed to detect printed circuit boards (PCBs) with unmatched accuracy. These sensors feature a 30 mm x 3 mm rectangular light beam and utilize a Background Suppression (BGS) sensing method, ensuring reliable detection even in the presence of PCB irregularities such as holes, protrusions, or intrusions. With an easy-to-use operation mode switch and adjustable sensing distances, the BJP series offers both precision and versatility in various PCB detection applications.
Key Features
- Rectangular Light BeamThe BJP series sensors are equipped with a 30 mm x 3 mm rectangular light beam that guarantees precise detection of PCBs, regardless of the board’s surface conditions or imperfections.
- Background Suppression (BGS) SensingBy employing BGS technology, these sensors can accurately detect objects without interference from the background, ensuring consistent performance across different environments.
- Adjustable Sensing DistanceUsers can fine-tune the sensing distance between 10 mm and 100 mm, with a specific adjustment range of 20 mm to 100 mm, allowing for flexible adaptation to various PCB sizes and detection needs.
- Light ON/Dark ON Mode SelectionThe BJP series sensors offer selectable operation modes (Light ON or Dark ON), enabling users to customize sensor behavior according to their specific requirements.
- Status IndicatorsEquipped with both red operation and green stability indicators, the sensors provide immediate visual feedback on the sensor’s current operational status, simplifying monitoring and troubleshooting.
- Robust Protection CircuitsThese sensors feature built-in protection circuits, including reverse power protection and output short overcurrent protection, safeguarding the sensors from potential damage and ensuring long-term reliability.
- IP65 Protection RatingWith an IP65 protection rating, the BJP series sensors are well-protected against dust and water, making them suitable for use in challenging industrial environments.
Product Components
The BJP series package includes all essential components for quick and straightforward installation:
- BJP Series Photoelectric Sensor
- Bracket A for mounting
- Two M3 bolts and two M3 nuts
- Instruction manual for easy setup
- Adjustment screwdriver for fine-tuning
Ordering Information
To meet various application needs, the BJP series offers two control output options:
- NPN Open Collector Output: Default option
- PNP Open Collector Output: Available by selecting the “P” model variant
For detailed model selection, visit the Autonics website or contact the sales team.
Additional Accessories
The BJP series is compatible with Bracket B (sold separately), which can be ordered to enhance the sensor’s mounting flexibility and stability in specific setups.
