Photo Sensor M18, Dark ON, Connector Type – LRS-1180-304
DESCRIPTION

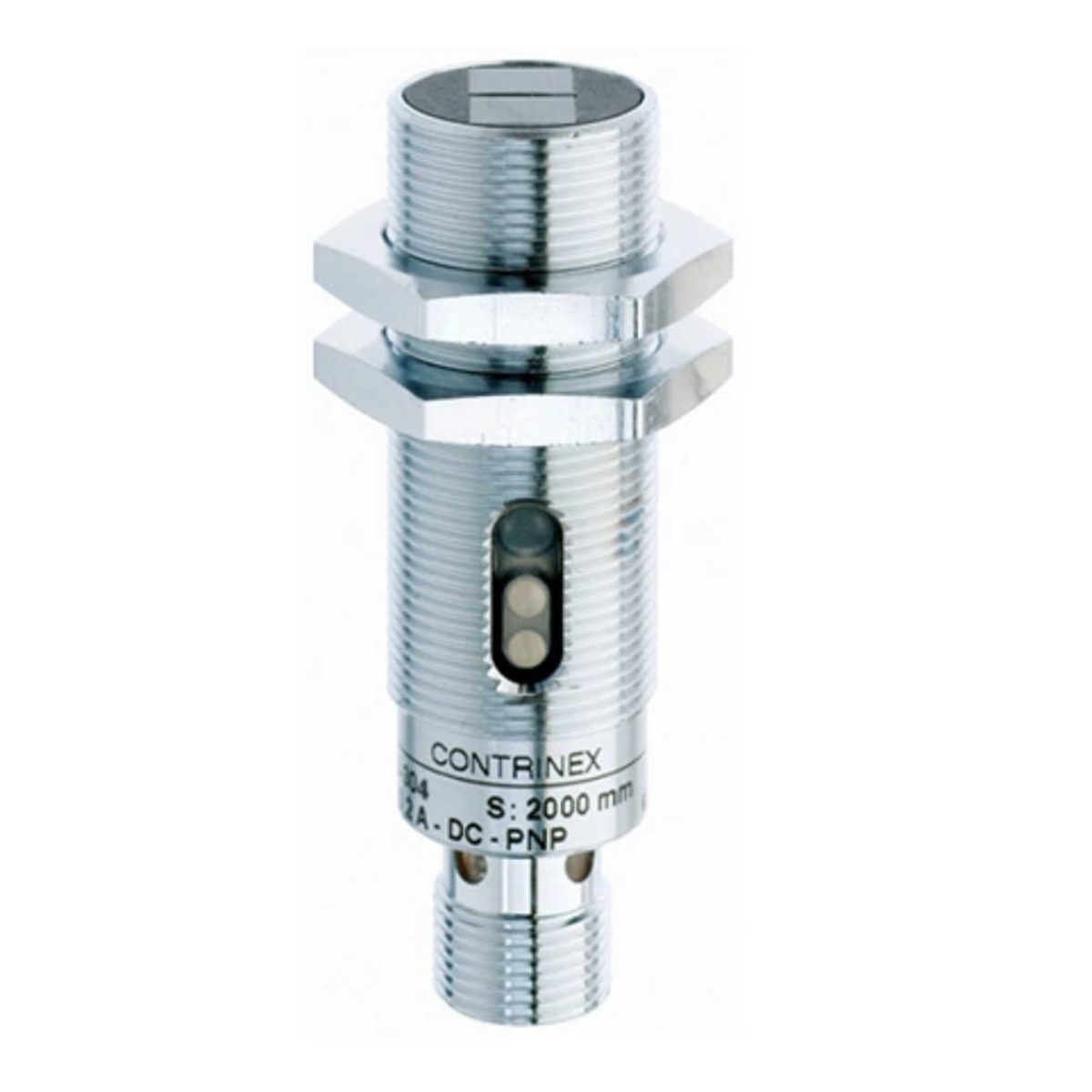

Contrinex Photoelectric Proximity Switch M18 – LRS-1180-304
Glass window, S12 4p. Connector, Standard output, PNP
As a quick report, this photoelectric sensor provides:
- Long operating distance: 2,000 mm
- High switching frequency: 1000 Hz
- Light source: LED, red 660 nm
- Polarity and Mounting Type: PNP | Straight
- Sensing range max.: 0
- Window material: glass
- Switching time: ≤ 0,5 msec
- Sensitivity adjustment: NO
Body
The photoelectric sensor LRS-1180-304 has housing size of M18 and the operating principle is Reflex. This proximity switch has Chrome-plated brass housing material and has the enclosure rating IP 67. The interface is standard output (dark-on) with PNP polarity (normally open).
Connection
Connection of the LRS-1180-304 photoelectric proximity sensor is M12 4-pin.
Sensing specifications
The diameter of LRS-1180-304 sensing side is 18 mm and the operating range of this is 2000 mm.
Control output
The output of this reflex sensor is Dark-on PNP with switching frequency of 1000 Hz and the supply voltage range for this proximity switch is 10 to 36 VDC.
Temperature
Ambient operating temperature for LRS-1180-304 proximity switch is from -25 to +55°C and temperature drift is 0,5 % / °C.
Industries / applications:
- Industrial automation lines
- Elevators
- Parking facilities
- Logistics services
- Semiconductor devices
- Packaging machines
- Construction areas
