Photo Sensor 700mm Sensing Distance, Relay Output – BX700-DFR
DESCRIPTION

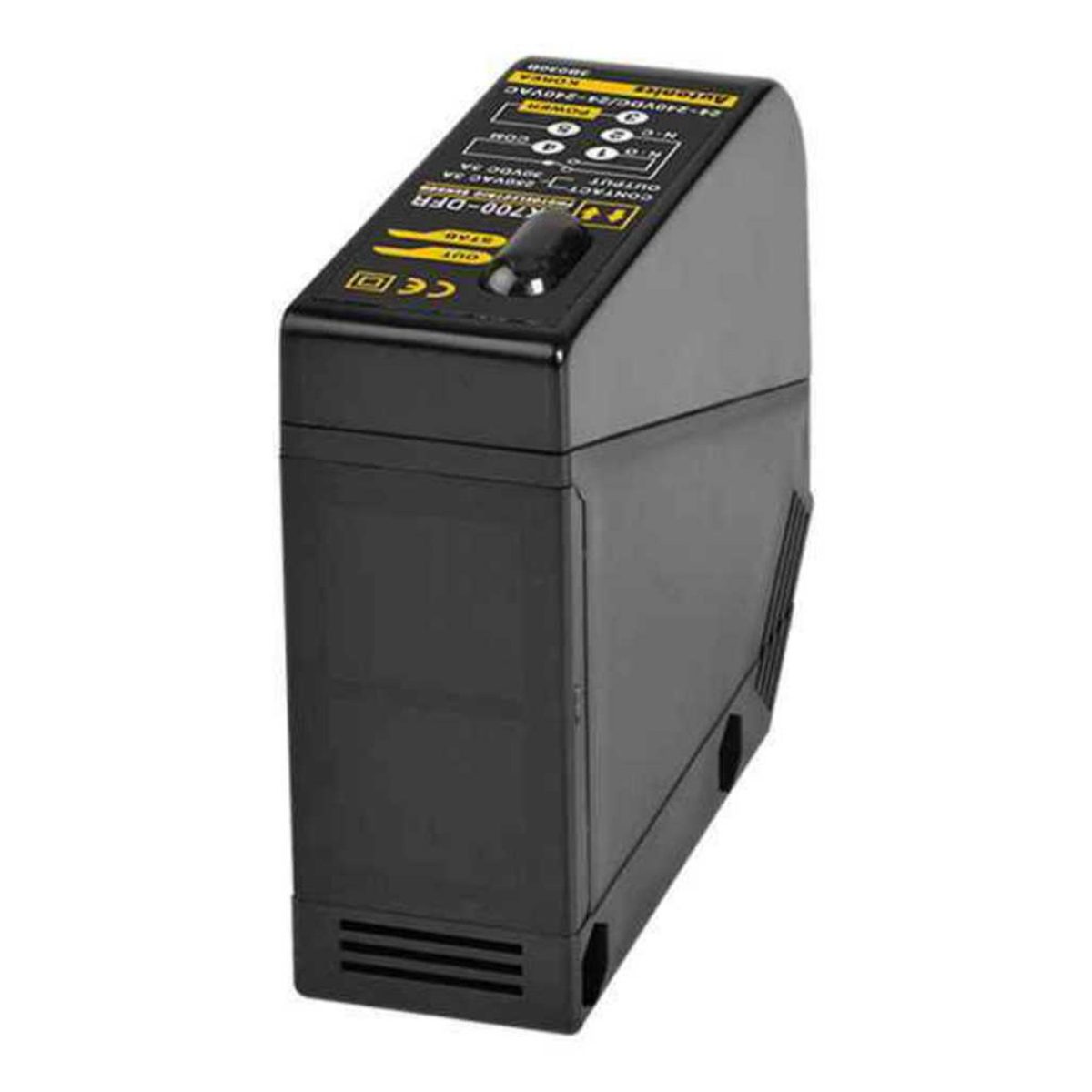

Autonics Photoelectric Sensor 700mm – BX700-DFR
NPN/PNP open collector Output, Terminal type connection, Sensitivity adjuster
The Autonics photoelectric sensor BX700-DFR with built-in amplifiers is available in universal DC type. This sensor which is Diffuse reflective type, comes in a rectangular shape, sensing distance of 700mm and Rectangular installation. The standard rectangular photo sensor can be used in diverse applications requiring non-contact detection of Opaque, translucent material.
As a quick report, this photoelectric sensor provides:
- 700mm sensing side diameter
- Relay control output
- Opaque, translucent material sensing target
- Infrared LED (940nm) Light source
- Sensitivity adjuster built-in type.
- Light ON/Dark ON mode selectable by switch.
- IP65 ingress protection structure according to IEC standards
- Output method: AC/DC power, relay contact output
Body
This Autonics photoelectric sensor’s case and lens cover are made of Polycarbonate, its sensing part is made of Acrylic.
The BX700-DFR features IP65 ingress protection.
The green and yellow LED on its body acts as the process indicator.
Connection
The Autonics sensor BX700-DFR features standard terminal type.
Sensing specifications
The sensing target for this photoelectric sensor is Opaque, translucent material. The maximum distance that this sensor can detect its standard sensing target is from 700 mm.
Control output
The BX700-DFR features Relay output.
Temperature
There are limitations in temperature and humidity in which BX700-DFR photoelectric sensor is used:
- Storage temperature: -25 … 70°C
- Storage humidity: 35 to 85%RH
- Ambient temperature: -20 … 55°C
- Ambient humidity: 35 to 85%RH
Environment resistance is rated at no freezing or condensation.
Industries / applications
- Parking Tower Entry/Exit
