Photo Sensor 300mm Sensing Distance, Solid State Output – BEN300-DDT
DESCRIPTION

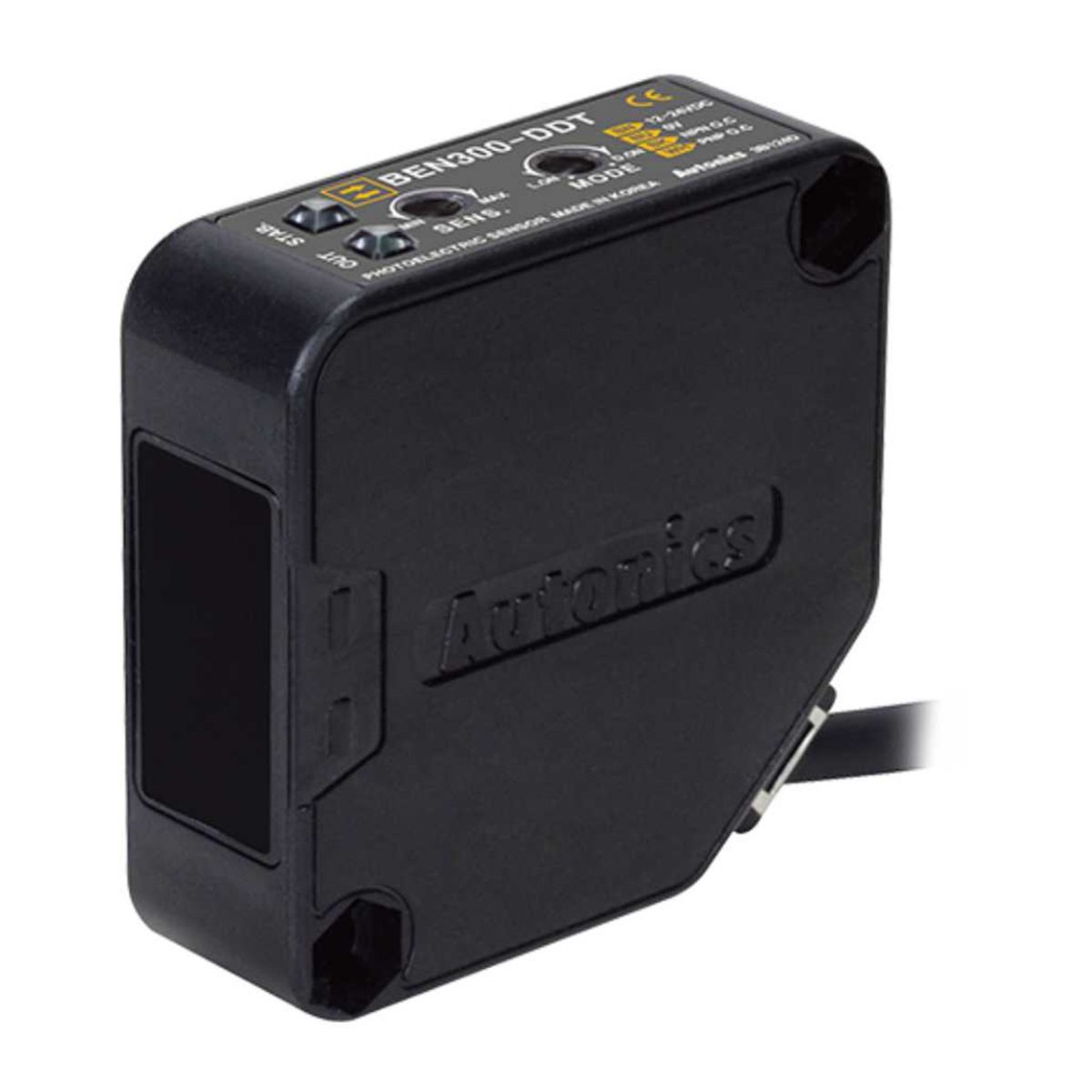

Autonics Universal AC/DC Photoelectric Sensor – BEN300-DDT
Cable type connection, Sensitivity adjuster, Diffuse reflective
The Autonics photoelectric sensor BEN300-DDT with built-in IC photo diode can sense objects without the ambient light and electrical noise affecting the process. This sensor which is diffuse reflective, comes in a rectangular shape, sensing distance of 300mm and Rectangular installation. The standard rectangular photo sensor can be used in diverse applications requiring non-contact detection of Opaque, translucent material.
As a quick report, this photoelectric sensor provides:
- 300mm sensing distance
- NPN, PNP Open Collector Output
- Infrared LED (940nm) Light source
- Small and power supply built-in type.
- Easy installation with indicators on product.
- Light ON/Dark ON mode selectable by switch.
- IP50 ingress protection structure according to IEC standards
- Status and output indication.
- Built-in IC photo diode for disturbing light and electrical noise.
- ≤ 1 ms Response time
- Reverse power protection circuit, output short overcurrent protection circuit
Body
This Autonics photoelectric sensor’s case and case cover are made of heat resistant ABS, its sensing part is made of PC.
The BEN300-DDT features IP50 ingress protection.
Connection
The Autonics sensor BEN300-DDT features standard cable type connection. This cable covers the sensors 4 wires is 5 mm in diameter and 2 meters in length.
Sensing specifications
The sensing target for this photoelectric sensor is Opaque, translucent material. The maximum distance that this sensor can detect its standard sensing target is from 300 mm.
Control output
The BEN300-DDT features NPN, PNP open collector simultaneous output.
Temperature
There are limitations in temperature and humidity in which BEN300-DDT photoelectric sensor is used:
- Storage temperature: -20 … 70°C
- Storage humidity: 35 to 85%RH
- Ambient temperature: -20 … 65°C
- Ambient humidity: 35 to 85%RH
Environment resistance is rated at no freezing or condensation.
Industries / applications
- Automated Automotive Manufacturing Process
- Application example of automation system: elevator, escalator, and parking system, …
- Parking Tower Entry/Exit
