Photo Sensor 300 mm Sensing Distance, PNP, Cable Type – BJ300-DDT-P

Autonics Rectangular Photoelectric Sensor – BJ300-DDT-P

PNP open collector, Cable type connection, General type

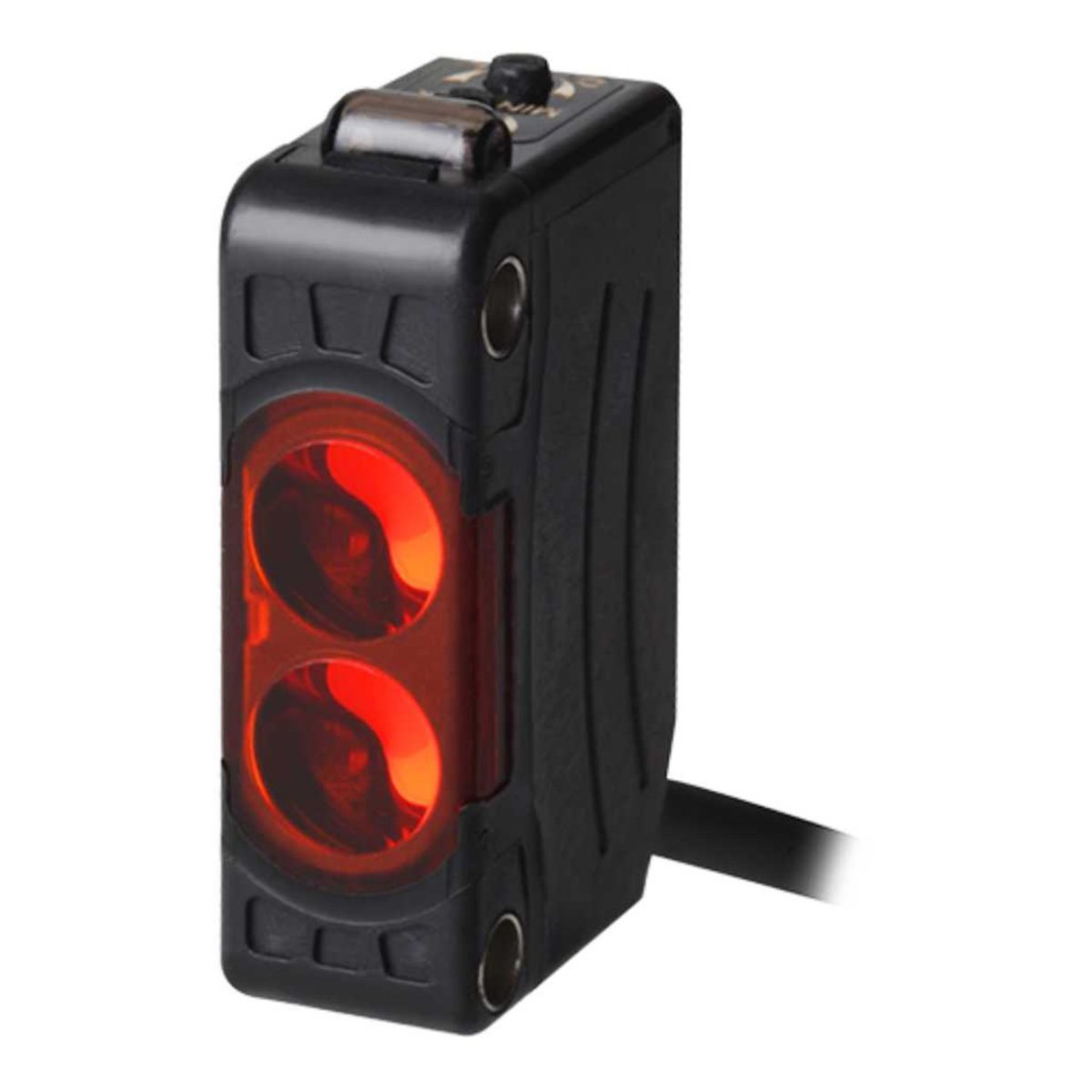

The Autonics photoelectric sensor BJ300-DDT-P is Diffuse reflective sensing type, comes in a rectangular shape, sensing distance of 300mm, Response time of Max. 1ms and rectangular installation. The standard rectangular photo sensor can be used in diverse applications requiring non-contact detection of Opaque, Translucent material.

As a quick report, this photoelectric sensor provides:

• Diffuse reflective sensing type

• 300mm sensing distance

• Opaque, Translucent sensing target

• Red LED (660nm) Light source

• 12-24 VDC ±10% (ripple P-P: max. 10%) power supply

• PNP open collector control output

• Operation mode: Light ON/Dark ON (set by switch)


• Sensitivity adjuster

• Compact size: W 10.6 × H 32 × L 20 mm

• IP65 ingress protection structure according to IEC standards

Body

This Autonics photoelectric sensor’s case is made of Polycarbonate + Acrylonitrile butadiene styrene, its LED Cap is made of Polycarbonate and its Sensing part is Polymethyl methacrylate made.

The BJ300-DDT-P features IP65 ingress protection.

Connection

The Autonics sensor BJ300-DDT-P features standard cable type connection. This cable covers the sensor’s 3 wires. It is Ø3.5mm in diameter and 2 meters in length.

Sensing specifications

The sensing target for this photoelectric sensor is Opaque, Translucent material. The maximum distance that this sensor can detect its standard sensing target is 300mm. This so-called sensing distance differs from one sensing target to another, based on their material.

Control output

The BJ300-DDT-P features PNP open collector control output. PNP stands for Positive-Negative-Positive transistors.

Temperature

There are limitations in temperature and humidity in which BJ300-DDT-P photoelectric sensor is used:

• Storage temperature: -40 … 70°C

• Storage humidity: 35 to 85%RH

• Ambient temperature: -25 … 55°C

• Ambient humidity: 35 to 85%RH

Environment resistance is rated at no freezing or condensation.

Industries / Applications

• Automatic Warehouse Rack

• Application example of automation system

• Rubber Extrusion / Plastic Injection Molding Process(Video)

• Potato chip manufacturing and packaging process

• Transfer of Packaged Goods

• Glass Manufacturing

• Beverage Can Transport Conveyors

• Parking Tower Entry/Exit
