Photo Sensor 3 m Sensing Distance, PNP, Cable Type – BPS3M-TDT-P

Autonics L 7.5 mm Flat Photoelectric Sensor – BPS3M-TDT-P

PNP open collector, Cable type Connection, Dark ON

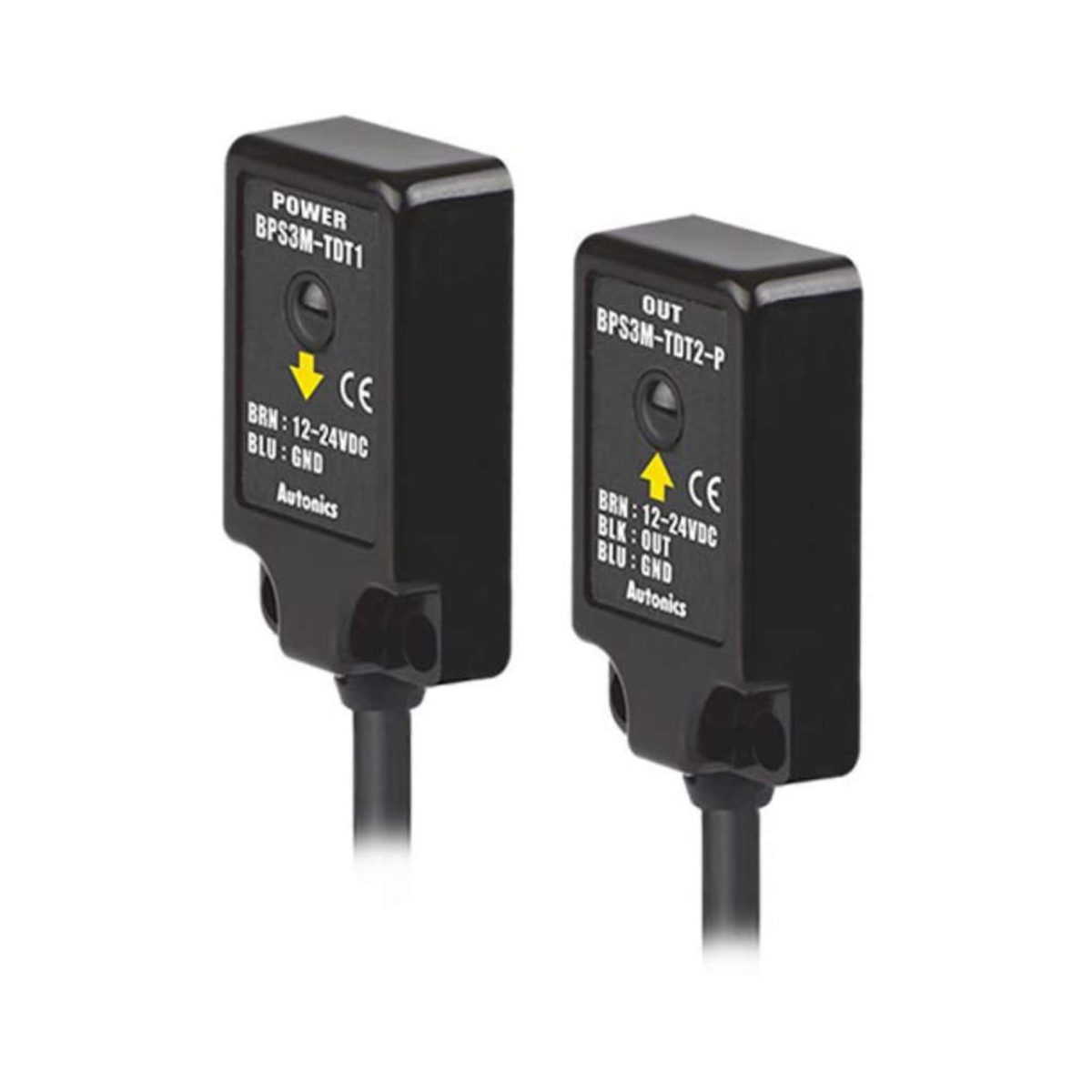

The Autonics photoelectric sensor BPS3M-TDT-P is Through-beam sensing type, comes in a rectangular shape, sensing distance of 3m, Response time of Max. 1ms and rectangular installation. The standard rectangular photo sensor can be used in diverse applications requiring non-contact detection of Opaque material.

As a quick report, this photoelectric sensor provides:

• Through-beam sensing type

• 3m sensing distance

• Opaque material of min. Ø5mm sensing target

• Infrared LED (850nm) Light source

• 12-24 VDC ±10% (ripple P-P: max. 10%) power supply

• PNP open collector control output

• Operation mode: Dark ON


• IP67 (IEC standard)

Body

This Autonics photoelectric sensor’s case is made of Polycarbonate, its bolt and nut are made of Steel chromium molybdenum.

The BPS3M-TDT-P features IP67 ingress protection.

Connection

The Autonics sensor BPS3M-TDT-P features standard cable type connection. This cable covers the sensor’s 3 wires. It is Ø3mm in diameter and 2 meters in length.

Sensing specifications

The sensing target for this photoelectric sensor is Opaque material of min. Ø5mm. The maximum distance that this sensor can detect its standard sensing target is 3m. This so-called sensing distance differs from one sensing target to another, based on their material.

Control output

The BPS3M-TDT-P features PNP open collector control output. PNP stands for Positive-Negative-Positive transistors.

Temperature

There are limitations in temperature and humidity in which BPS3M-TDT-P photoelectric sensor is used:

• Storage temperature: -25 … 70°C

• Storage humidity: 35 to 90%RH

• Ambient temperature: -25 … 65°C

• Ambient humidity: 35 to 85%RH

Environment resistance is rated at no freezing or condensation.
