Photo Sensor 3 m, NPN Open Collector Output – BYD3M-TDT
DESCRIPTION
Autonics Photoelectric Sensor with Built-in Timer, BYD3M-TDT
NPN Open collector, Cable type connection, Front operation indicator

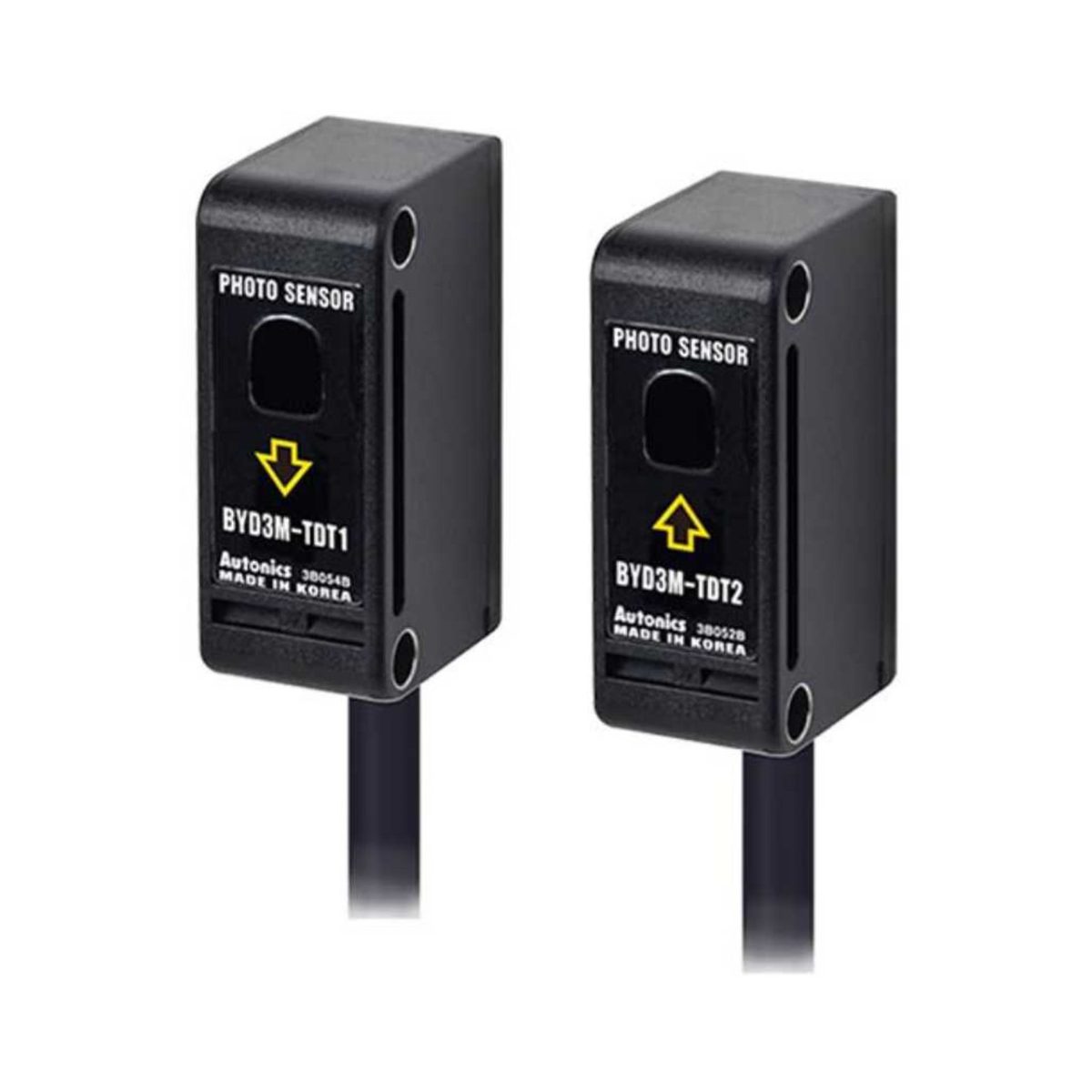

The Autonics photoelectric sensor BYD3M-TDT is through-beam sensing type, comes in a rectangular shape, sensing distance of 3m, Response time of Max. 1ms and rectangular installation. The standard rectangular photo sensor can be used in diverse applications requiring non-contact detection of Opaque material.
As a quick report, this photoelectric sensor provides:
- Through-beam sensing type
- 3m sensing distance
- Opaque material of min. Ø6mm sensing target
- Infrared LED Light source
- 12-24VDC ±10% (ripple P-P: max. 10%) power supply
- NPN open collector control output
- Operation mode: Dark ON (option: Light ON)
- Fixed Sensitivity adjustment
- Operation indicator (red)
- IP64 ingress protection structure according to IEC standards
- W12×H32×L18 mm
Body
This Autonics photoelectric sensor’s case is made of acrylonitrile butadiene styrene and its Sensing part is made of acrylic.
The BYD3M-TDT features IP64 ingress protection.
Connection
The Autonics sensor BYD3M-TDT features standard cable type connection. This cable covers the sensor’s 3 wires. It is Ø3.5mm in diameter and 2 meters in length.
Sensing specifications
The sensing target for this photoelectric sensor is Opaque material of min. Ø6mm. The maximum distance that this sensor can detect its standard sensing target is 3m. This so-called sensing distance differs from one sensing target to another, based on their material.
Control output
The BYD3M-TDT features NPN open collector control output. NPN stands for Negative-Positive-Negative transistors.
Temperature
There are limitations in temperature and humidity in which BYD3M-TDT photoelectric sensor is used:
- Storage temperature: -25 … 70°C
- Storage humidity: 35 to 85%RH
- Ambient temperature: -25 … 65°C
- Ambient humidity: 35 to 85%RH
Environment resistance is rated at no freezing or condensation.
Still want to know more? Click here to find out about Autonics Photoelectric Sensors working principles.
