Photo Sensor 2m Sensing Distance, PNP Open Collector Output – BMS2M-MDT-P
DESCRIPTION

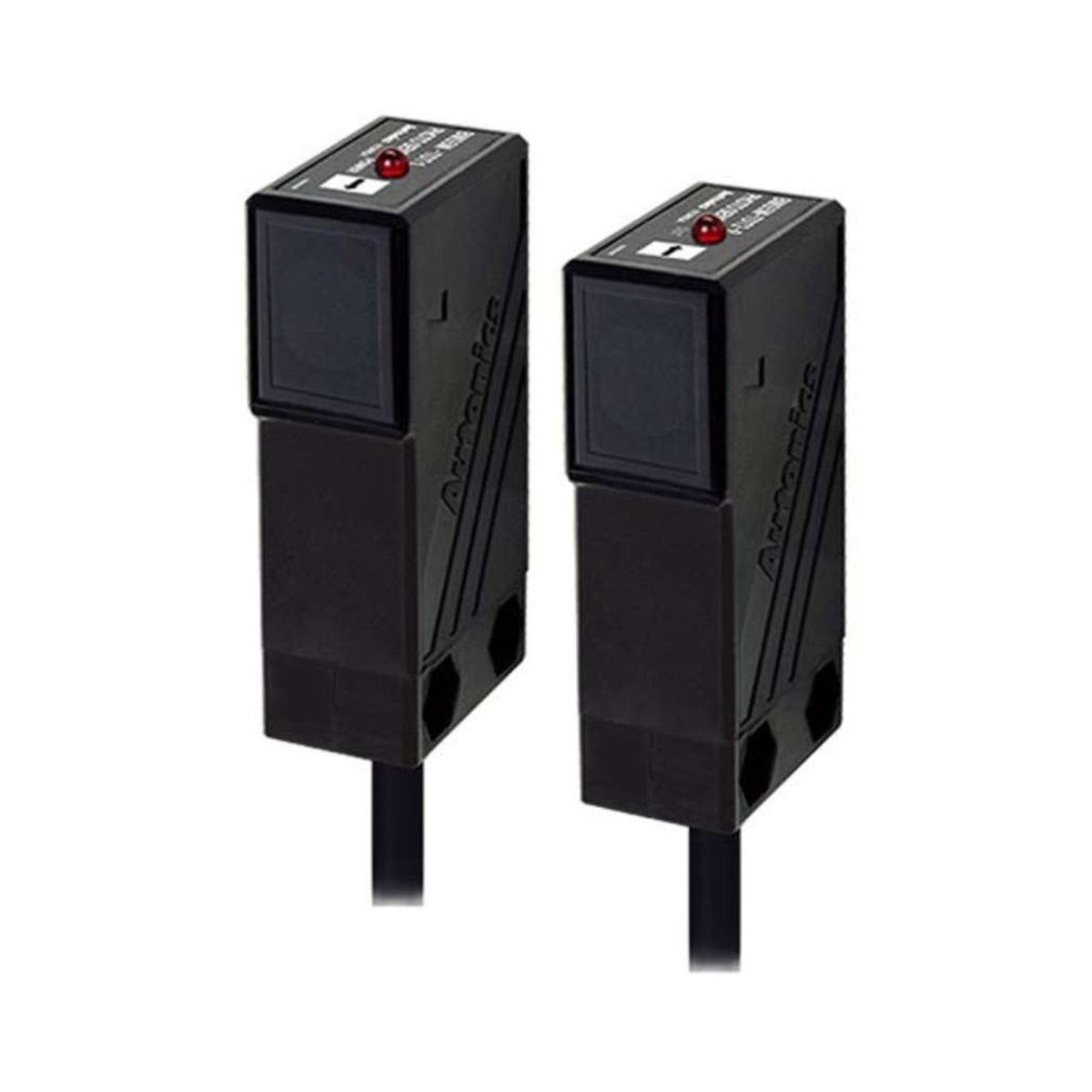

Autonics Side Sensing Photoelectric Sensor – BMS2M-MDT-P
Retroreflective, Cable type connection, Sensitivity adjuster
The Autonics photoelectric sensor BMS2M-MDT-P with built-in reverse polarity protection circuit. This sensor which is Retroreflective type, comes in a rectangular shape, sensing distance of 2m, Sensing target of min Ø60mm and Rectangular installation. The standard rectangular photo sensor can be used in diverse applications requiring non-contact detection of Opaque material.
As a quick report, this photoelectric sensor provides:
- 2m (MS-2) sensing distance
- PNP Open collector
- ≥ Ø 60 mm min. sensing target
- Infrared LED (940nm) Light source
- Light ON mode – Dark ON mode selectable (control wire)
- ≤ 1 ms Response time
- Operation indicator (red)
Body
This Autonics photoelectric sensor’s case is made of Acrylonitrile butadiene styrene, its sensing part is made of Acryl.
The BMS2M-MDT-P features Reverse power protection circuit, output short overcurrent protection circuit
The red on its body acts as the operation indicator.
Connection
The Autonics sensor BMS2M-MDT-P features standard cable type connection. This cable is 5 mm in diameter and 2 meters in length and covers the sensor’s 4-wires.
Sensing specifications
The sensing target for this photoelectric sensor is Opaque material. This material should have a minimum size of Ø60 mm.
Control output
The BMS2M-MDT-P features PNP open collector control output.
Temperature
There are limitations in temperature and humidity in which BMS2M-MDT-P photoelectric sensor is used:
- Storage temperature: -25 … 70°C
- Storage humidity: 35 to 85%RH
- Ambient temperature: -10 … 60°C
- Ambient humidity: 35 to 85%RH
Environment resistance is rated at no freezing or condensation.
