Photo Sensor 1m Sensing Distance, Dark ON, PNP Open Collector – BTF1M-TDTD-P

Autonics L 3.7 mm Flat Photoelectric Sensor – BTF1M-TDTD-P

PNP Open collector, Cable type connection, Dark ON

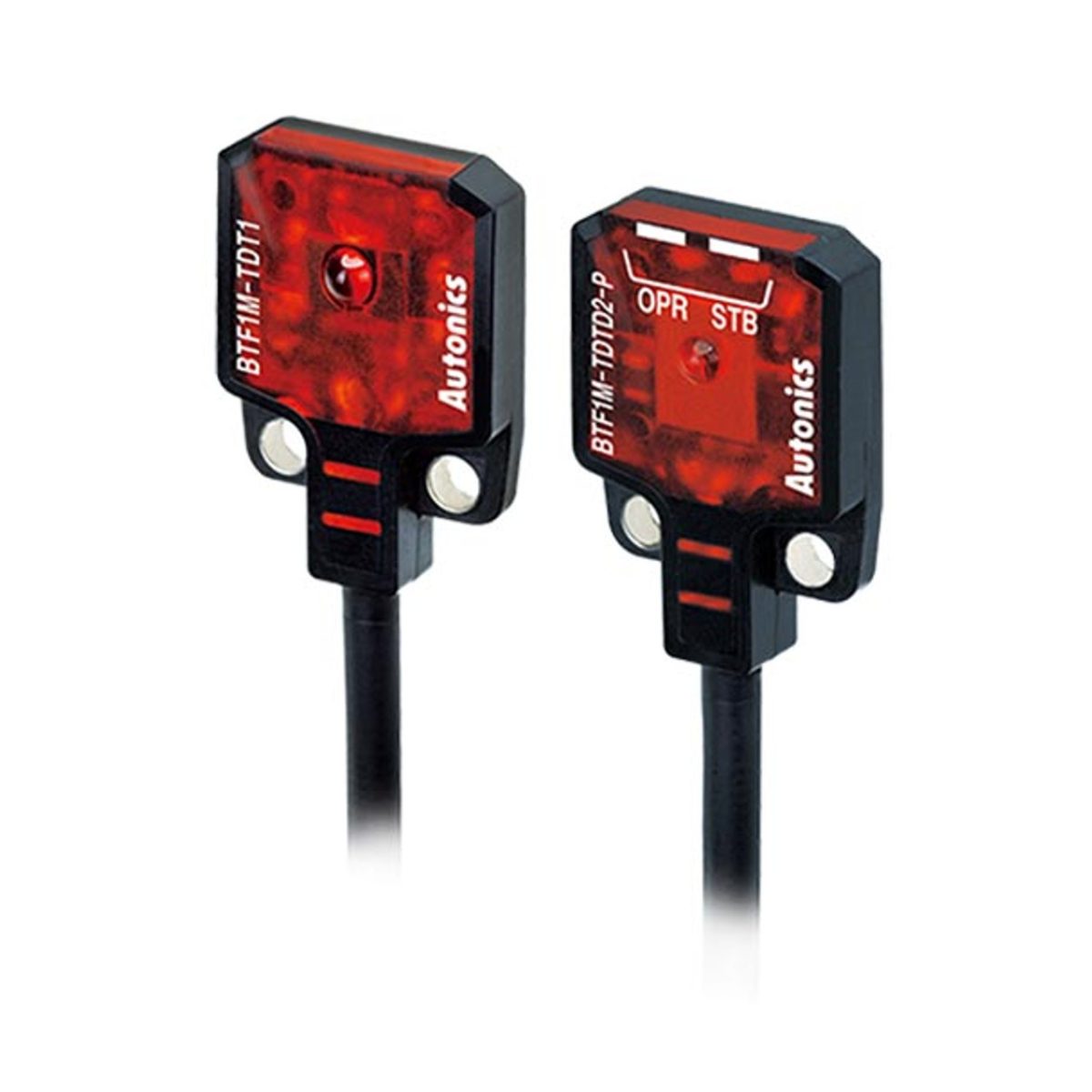

The Autonics photoelectric sensor BTF1M-TDTD-P is Through-beam sensing type, sensing distance of 1m, Response time of Max. 1ms. The L 3.7 mm photo sensor can be used in diverse applications requiring non-contact detection of Opaque material.

As a quick report, this photoelectric sensor provides:

• Through-beam sensing type

• 1m sensing distance

• Opaque material of min. Ø2mm sensing target

• Red LED (650nm) Light source

• 12-24 VDC ±10% (ripple P-P: max. 10%) power supply

• PNP open collector control output

• Operation mode: Dark ON


• W 13 × H 19 × L 3.7 mm

• IP67 ingress protection structure according to IEC standards

Body

This Autonics photoelectric sensor’s case is made of Polybutylene terephthalate and its Sensing part is made of Polymethyl methacrylate.

The BTF1M-TDTD-P features IP67 ingress protection.

Connection

The Autonics sensor BTF1M-TDTD-P features standard cable type connection. This cable covers the sensor’s 3 wires. It is Ø2.5mm in diameter and 2 meters in length.

Sensing specifications

The sensing target for this photoelectric sensor is Opaque material of min. Ø2mm. The maximum distance that this sensor can detect its standard sensing target is 1m. This so-called sensing distance differs from one sensing target to another, based on their material.

Control output

The BTF1M-TDTD-P features PNP open collector control output. PNP stands for Positive-Negative-Positive transistors.

Temperature

There are limitations in temperature and humidity in which BTF1M-TDTD-P photoelectric sensor is used:

• Storage temperature: -40 … 70°C

• Storage humidity: 35 to 85%RH

• Ambient temperature: -25 … 55°C

• Ambient humidity: 35 to 85%RH

Environment resistance is rated at no freezing or condensation.

Industries / Applications

• Potato chip manufacturing and packaging process

• Box Labeling

Still want to know more? Click here to find out about Autonics Photoelectric Sensors working principles.
