Photo Sensor 1m Sensing Distance, Dark ON, NPN Open Collector – BTS1M-TDTD

Autonics W 7.2 mm Photoelectric Sensor, BTS1M-TDTD

NPN open collector, Cable type connection, Dark ON

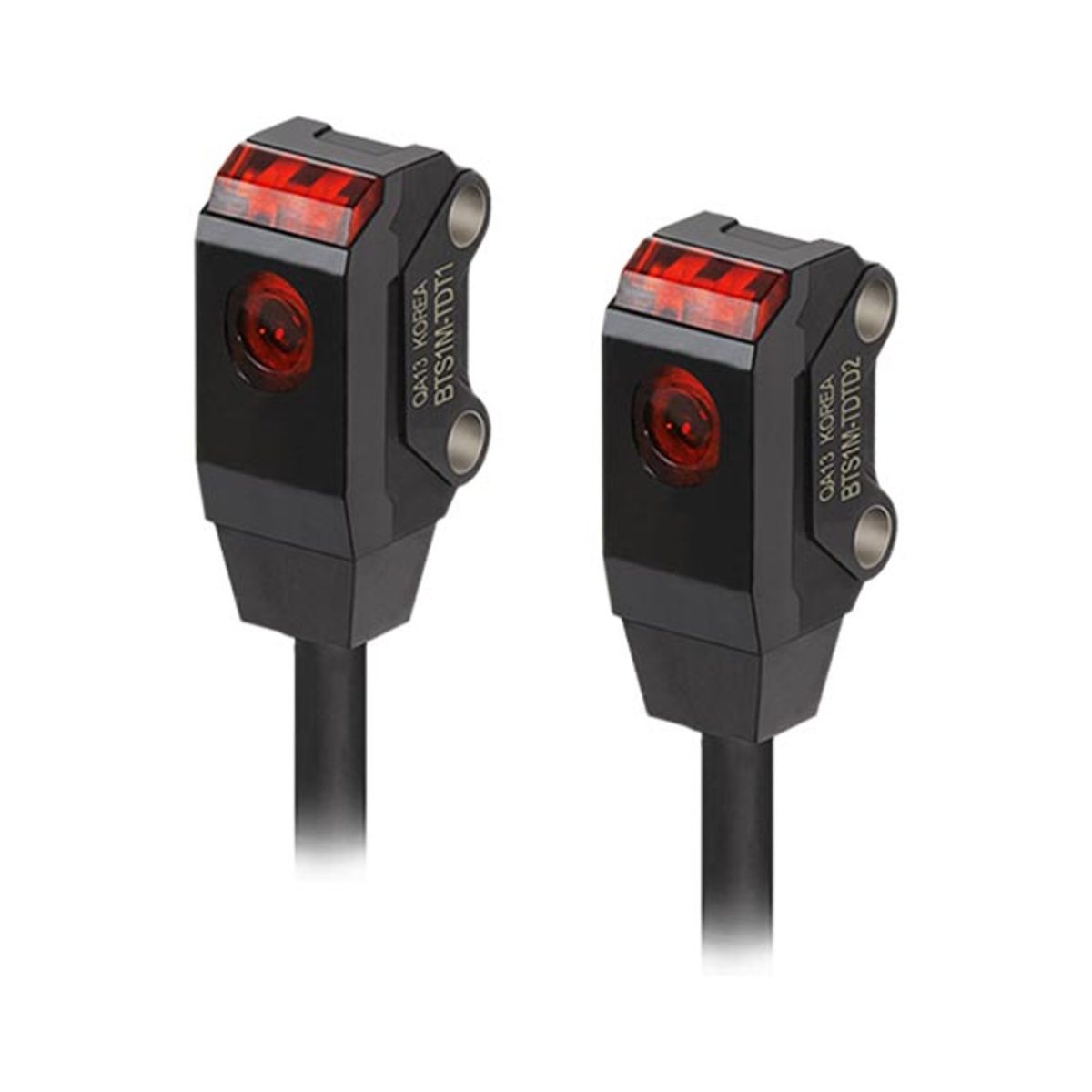

The Autonics photoelectric sensor BTS1M-TDTD is Through-beam sensing type, sensing distance of 1m, Response time of Max. 1ms. The W 7.2 mm photo sensor can be used in diverse applications requiring non-contact detection of Opaque material.

As a quick report, this photoelectric sensor provides:

• Through-beam sensing type

• 1m sensing distance

• Opaque material of min. Ø2mm sensing target

• Red LED (650nm) Light source

• 12-24 VDC ±10% (ripple P-P: max. 10%) power supply

• NPN open collector control output

• Operation mode: Dark ON


• W 7.2 × H 18.6 × L 9.5

• IP67 ingress protection structure according to IEC standards

Body

This Autonics photoelectric sensor’s case is made of Polybutylene terephthalate and its Sensing part is made of Polymethyl methacrylate.

The BTS1M-TDTD features IP67 ingress protection.

Connection

The Autonics sensor BTS1M-TDTD features standard cable type connection. This cable covers the sensor’s 3 wires. It is Ø2.5mm in diameter and 2 meters in length.

Sensing specifications

The sensing target for this photoelectric sensor is Opaque material of min. Ø2mm. The maximum distance that this sensor can detect its standard sensing target is 1m. This so-called sensing distance differs from one sensing target to another, based on their material.

Control output

The BTS1M-TDTD features NPN open collector control output. NPN stands for Negative-Positive-Negative transistors.

Temperature

There are limitations in temperature and humidity in which BTS1M-TDTD photoelectric sensor is used:

• Storage temperature: -30 … 70°C

• Storage humidity: 35 to 85%RH

• Ambient temperature: -20 … 55°C

• Ambient humidity: 35 to 85%RH

Environment resistance is rated at no freezing or condensation.

Industries / Applications

• Potato chip manufacturing and packaging process

• Brake Disc Manufacturing

• Transfer of Packaged Goods

Still want to know more? Click here to find out about Autonics Photoelectric Sensors working principles.
