Photo Sensor 100 mm Sensing Distance, PNP, Cable Type -BRQP100-DDTA-P

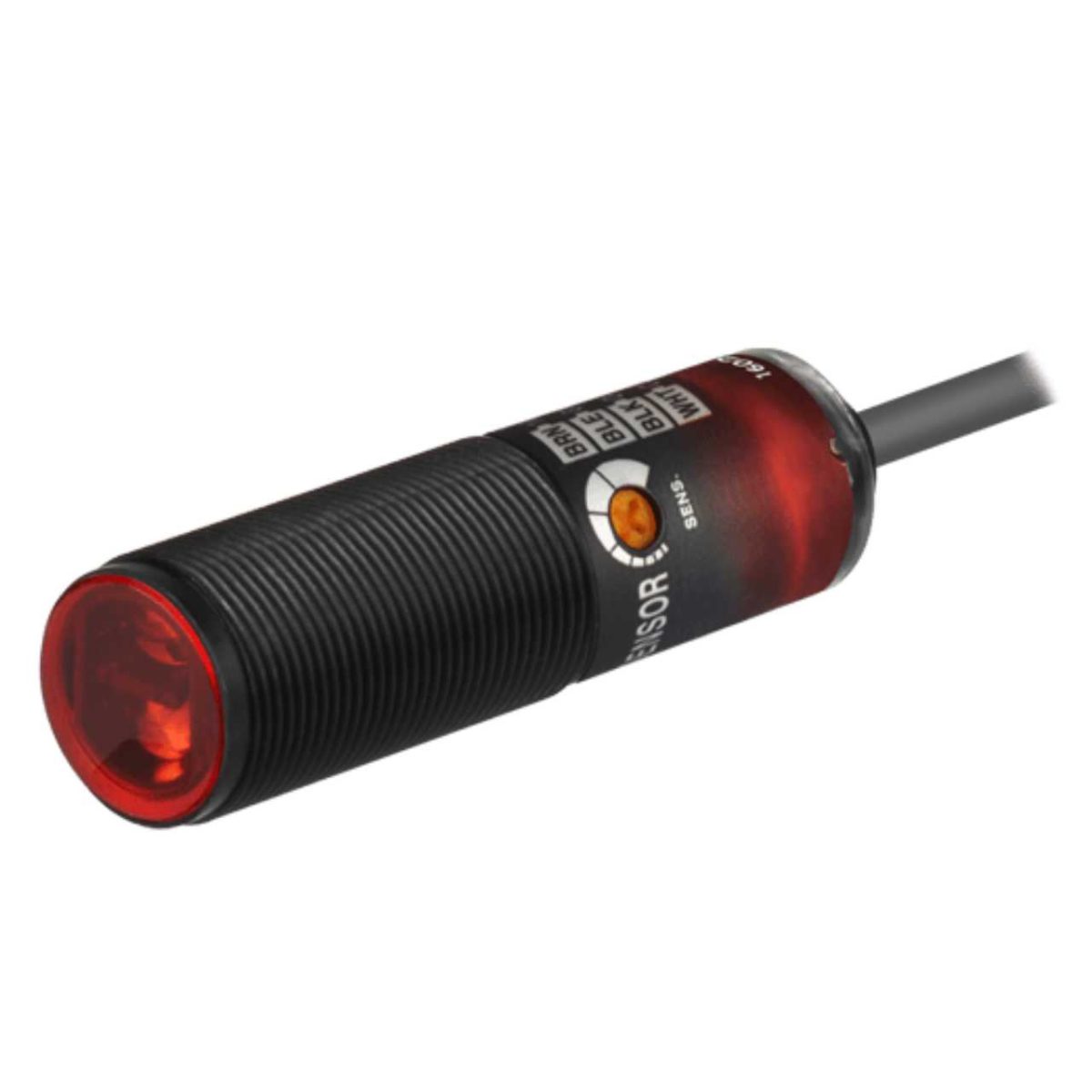

Autonics Cylindrical Photoelectric Sensor – BRQP100-DDTA-P

PNP Open collector, Cable type connection, Sensitivity adjuster

The Autonics photoelectric sensor BRQP100-DDTA-P is Diffuse reflective sensing type, comes in a cylindrical shape, sensing distance of 100mm, Response time of Max. 1ms and cylindrical installation. The standard cylindrical photo sensor can be used in diverse applications requiring non-contact detection of Opaque , Translucent material.

As a quick report, this photoelectric sensor provides:

• Diffuse reflective sensing type

• 100mm sensing distance

• Opaque, Translucent material sensing target

• Infrared LED (850nm) Light source

• 10-30VDC ±10%(ripple P-P: max. 10%) power supply

• PNP open collector control output

• Light ON/Dark ON mode selectable by control wire (white)


• IP67 ingress protection structure according to IEC standards

Body

This Autonics photoelectric sensor’s case is made of Polycarbonate, its Lens, Lens cover are made of polymethyl methacrylate acrylic.

The BRQP100-DDTA-P features IP67 ingress protection.

Connection

The Autonics sensor BRQP100-DDTA-P features standard cable type connection. This cable covers the sensor’s 4 wires. It is Ø4mm in diameter and 2 meters in length.

Sensing specifications

The sensing target for this photoelectric sensor is Opaque, Translucent material. The maximum distance that this sensor can detect its standard sensing target is 100mm. This so-called sensing distance differs from one sensing target to another, based on their material.

Control output

The BRQP100-DDTA-P features PNP open collector control output. PNP stands for Positive-Negative-Positive transistors.

Temperature

There are limitations in temperature and humidity in which BRQP100-DDTA-P photoelectric sensor is used:

• Storage temperature: -30 … 70°C

• Storage humidity: 35 to 85%RH

• Ambient temperature: -25 … 60°C

• Ambient humidity: 35 to 85%RH

Environment resistance is rated at no freezing or condensation.
