Photo Sensor 10 m Sensing Distance, NPN, Cable Type – BJ10M-TDT

Autonics Rectangular Photoelectric Sensor, BJ10M-TDT

NPN open collector, Cable type connection, General type

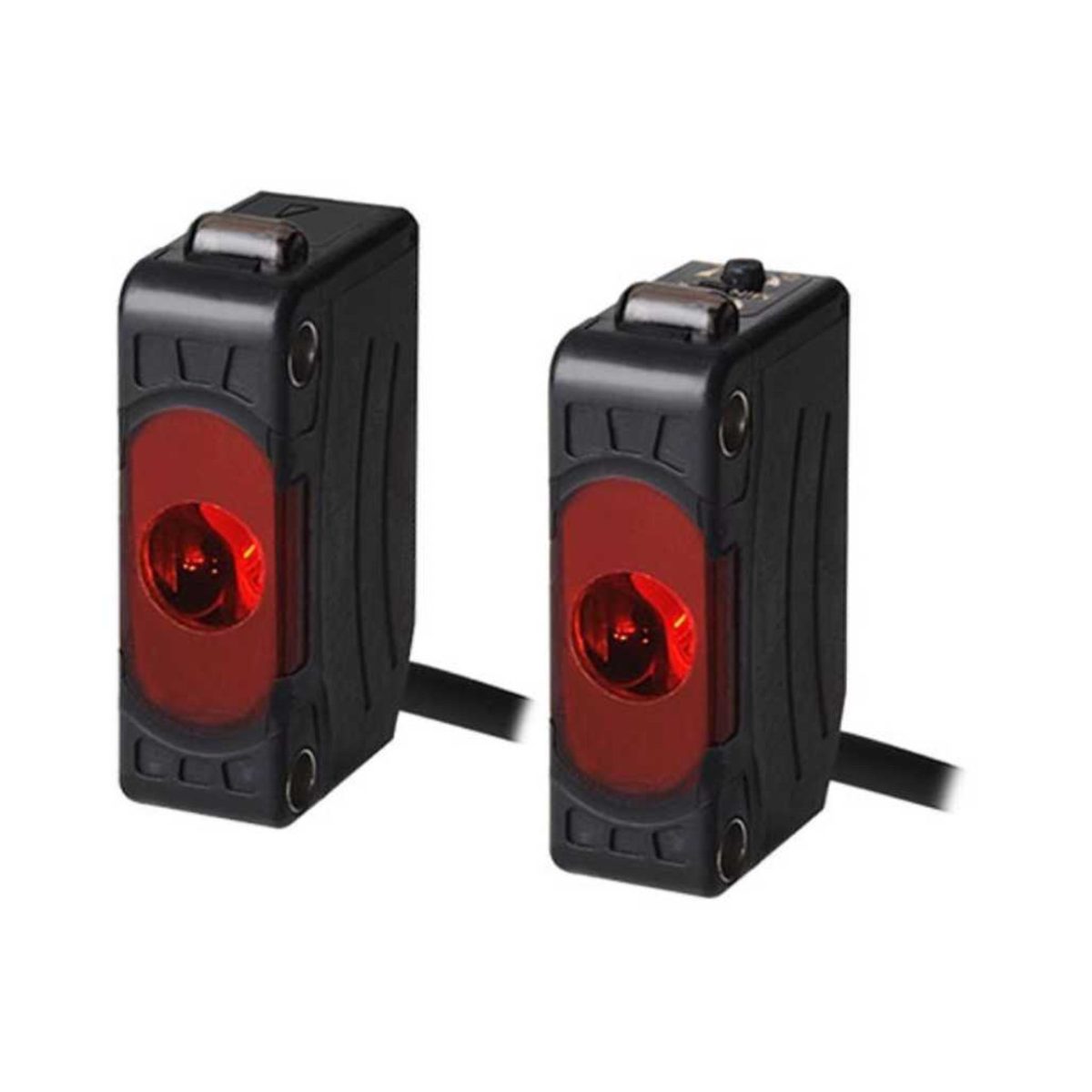

The Autonics photoelectric sensor BJ10M-TDT is Through-beam sensing type, comes in a rectangular shape, sensing distance of 10m, Response time of Max. 1ms and rectangular installation. The standard rectangular photo sensor can be used in diverse applications requiring non-contact detection of Opaque material.

As a quick report, this photoelectric sensor provides:

• Through-beam sensing type

• 10m sensing distance

• Opaque material of min. Ø12mm sensing target

• Red LED (660nm) Light source

• 12-24 VDC ±10% (ripple P-P: max. 10%) power supply

• NPN open collector control output

• Operation mode: Light ON/Dark ON (set by switch)


• Sensitivity adjuster

• Compact size: W 10.6 × H 32 × L 20 mm

• IP65 ingress protection structure according to IEC standards

Body

This Autonics photoelectric sensor’s case is made of Polycarbonate + Acrylonitrile butadiene styrene, its LED Cap is made of Polycarbonate and its Sensing part is Polymethyl methacrylate made.

The BJ10M-TDT features IP65 ingress protection.

Connection

The Autonics sensor BJ10M-TDT features standard cable type connection. This cable covers the sensor’s 3 wires. It is Ø3.5mm in diameter and 2 meters in length.

Sensing specifications

The sensing target for this photoelectric sensor is Opaque material of min. Ø12mm. The maximum distance that this sensor can detect its standard sensing target is 10m. This so-called sensing distance differs from one sensing target to another, based on their material.

Control output

The BJ10M-TDT features NPN open collector control output. NPN stands for Negative-Positive-Negative transistors.

Temperature

There are limitations in temperature and humidity in which BJ10M-TDT photoelectric sensor is used:

• Storage temperature: -40 … 70°C

• Storage humidity: 35 to 85%RH

• Ambient temperature: -25 … 55°C

• Ambient humidity: 35 to 85%RH

Environment resistance is rated at no freezing or condensation.

Industries / Applications

• Automatic Warehouse Rack

• Application example of automation system

• Rubber Extrusion / Plastic Injection Molding Process(Video)

• Potato chip manufacturing and packaging process

• Transfer of Packaged Goods

• Glass Manufacturing

• Beverage Can Transport Conveyors

• Parking Tower Entry/Exit

Still want to know more? Click here to find out about Autonics Photoelectric Sensors working principles.
