Microwave Motion Sensor On OFF Control External Microwave Sensor
Product Specification
| Operating Temperature | -20°C~+60°C | Place of Origin | China |
| Packaging Details | Bubble pack, paper flat, outer carton. | Model Number | TR-D08 |
| Supply Ability | 100000pcs per month | Certification | UL FCC |
| Brand Name | TR-Sensor | Payment Terms | L/C, T/T, Western Union |
| Interfaces | 4-pole pluggable clamp terminal(L,N,N,L’)for 0.75-1.5mm 2 cable | Price | Negotiable |
| Delivery Time | 1-3 days for sample order, 1-2 weeks for bulk order | Minimum Order Quantity | 100PCS |
| Stand-by Power | ≤1W | Working voltage | 120~277 VAC 50/60Hz |
| Switching capacity | Max.3.0A@120Vac,Max.2.0A@277Vac | Certificate | UL FCC |
DESCRIPTION
For Ceiling Light Microwave Movement Sensor 120-277VAC Operated 5.8GHz Frequency
Features:
- Adopt power switch to make sure no affect power factor.
- Unique design to save cost.

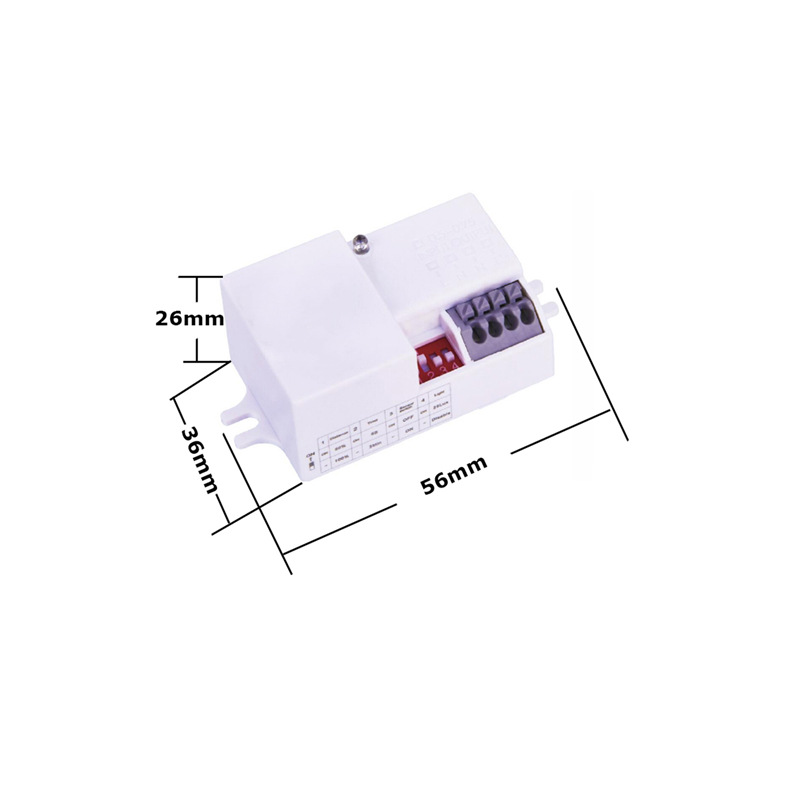

- Super compact size makes it suitable to fix within most luminaires.
- 4-pole press-in terminal (L, N, N,L′),easy assembly.
- Zero-crossing point operation helps protect the sensor against in-rush current.
- 5.8GHz high frequency microwave(C-Band license-free operation).

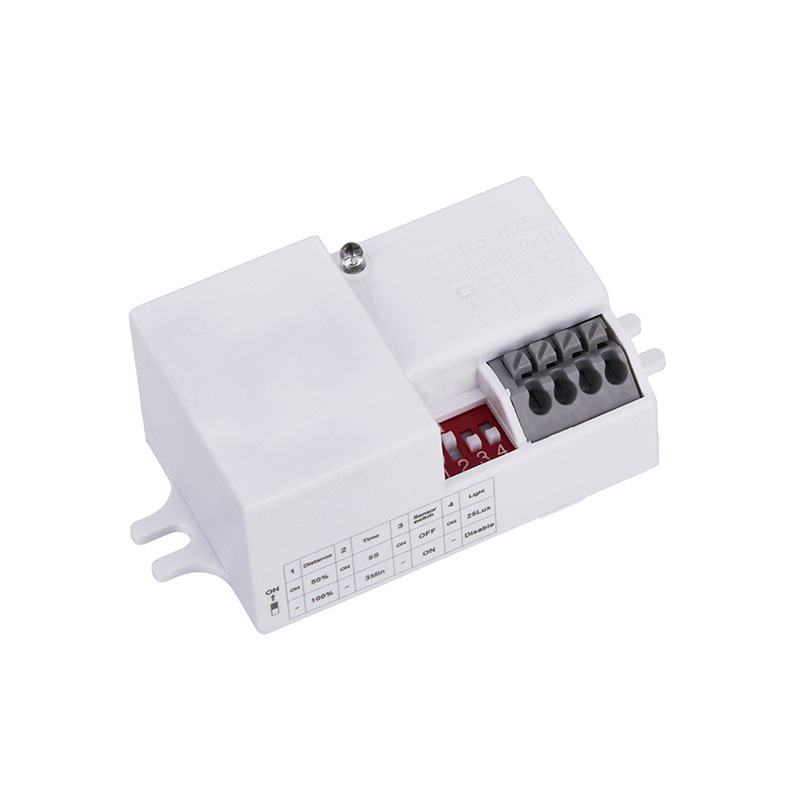

- Detection area, time delay and daylight threshold can be precisely set via DIP switch.
- Mounting height,Max.15m(ceiling mounted),Max.3m(wall mounted).
- Detection range,Max.ø14m(ceiling mounted),Max.20m(wall mounted).
Detailed Product Description
| Input | Voltage Range | 120-277Vac 50/60Hz |
| Output | Load Type | Max.3.0A@120Vac,Max.2.0A@277Vac |
| Sensor Parameters | Hold time | 5S/90S/5min/15min |
| Detection Area | 10%/50%/75%/100% | |
| Daylight Sensor | 2lux/10Lux/50Lux/disable | |
| Mode | Constant on mode/Sensor mode | |
| Mounting Height | Ceiling mounting 3-6m | |
| Sensing Area | 4-7m (Mounting height 3m) | |
| Wireless Parameters | Operating Frequency | 5.8 GHz ±75 MHz |
| Dimming Control | 0N/0FF | |
| Safety & EMC | Certificate Requirement | UL FCC |
| Others | Wiring Method | 4-pole press fit terminal (Input grey L. N. Output grey N. L’) |
| IP Rating | IP20 | |
| Packaging Requirement | Bubble pack, paper flat, outer carton. | |
| Weight | 41g | |
| Life | 50000h |
Function Demo-On/Off Control
*Light will turn on when people come ture off after people leave.
With sufficient daylight, even when motion detected, light remains OFF.
With insufficient daylight, when motion detected, light ON.
After the last detection and the present hold time elapsed, light OFF.
Application Stairwell, corridor, balcony, pathway, warehouse,etc office/commercial lighting
