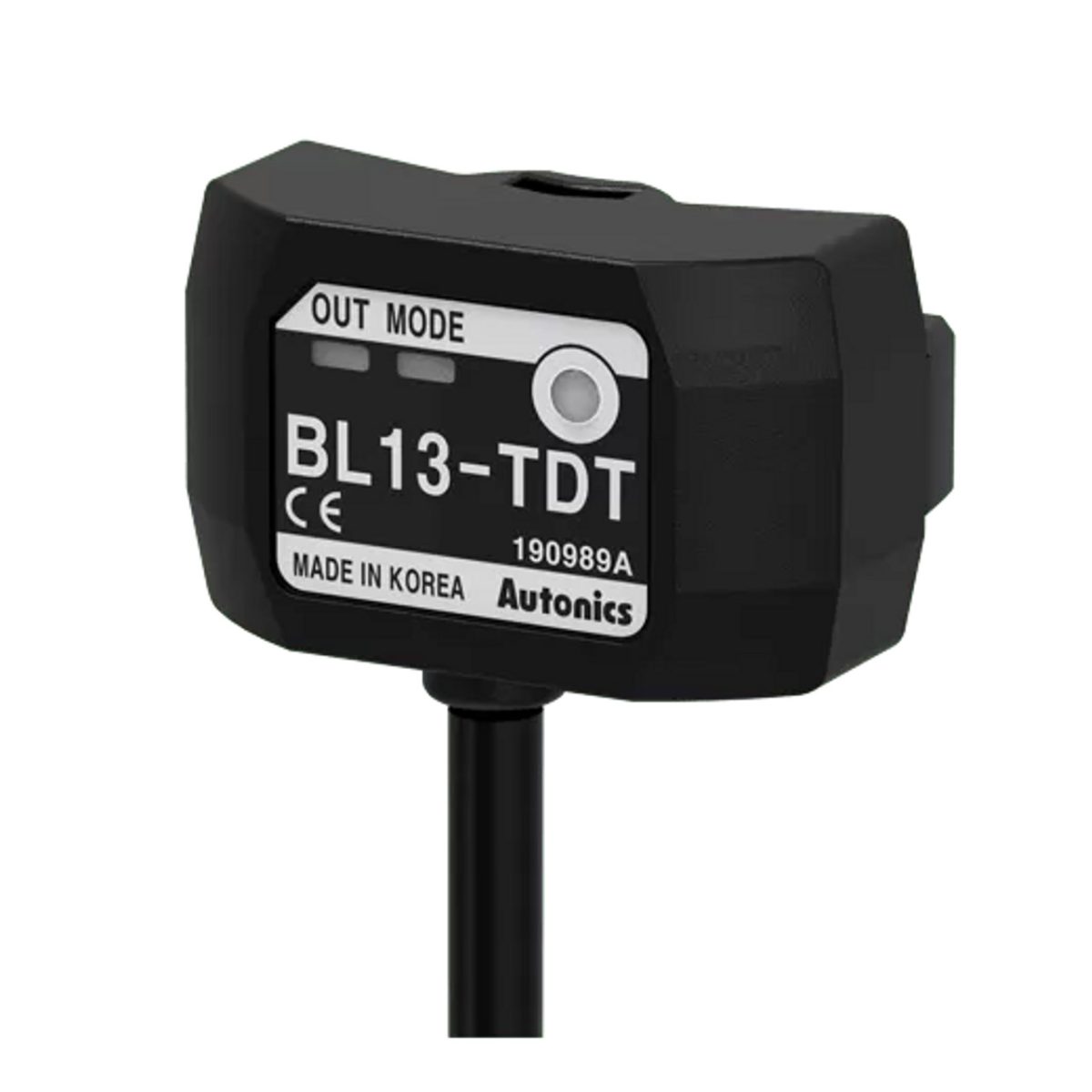

Liquid Level Photoelectric Sensors BL Series
DESCRIPTION
Product Overview
The BL Series photoelectric liquid level sensors are expertly engineered to detect the presence or absence of liquid in transparent pipes with diameters ranging from 6 to 13 mm and a thickness of less than 1 mm. These sensors offer the flexibility of selecting between Light ON and Dark ON operation modes via a simple mode switch, making them highly adaptable to various environments. Their compact design ensures easy installation and seamless integration into systems where space is at a premium. The BL Series is an ideal solution for non-contact liquid detection in transparent pipes, offering reliable performance and ease of use.
Key Features
- Compact Size: With dimensions of W 23 × H 14 × L 13 mm, the BL Series sensors are designed to fit into tight spaces, making them perfect for applications where size is a critical factor.
- Precise Liquid Detection: Capable of detecting liquid in transparent or semi-transparent pipes with diameters ranging from 6 to 13 mm and a thickness of 1 mm. This ensures accurate detection in a variety of settings.
- Selectable Operation Modes: Users can easily switch between Light ON and Dark ON operation modes using the built-in mode switch, providing flexibility in sensor application.
- Easy Status Monitoring: Equipped with a green operation mode indicator and a red operation indicator, the BL Series sensors allow for quick and easy monitoring of the sensor’s status.
- Protection Circuits: The sensors include reverse power protection and output short overcurrent protection circuits, ensuring reliable and safe operation in diverse environments.
- Optional Protection Bracket: A protection bracket (sold separately) is available for Ø12.7 mm (1/2 inch) pipes, offering additional protection from external environmental factors.
- IP64 Protection Rating: These sensors are rated IP64 according to IEC standards, providing robust resistance to dust and water, ensuring durability in harsh conditions.
Product Components
- BL Series Sensor Unit
- Binding Bands: Two binding bands suitable for Ø6 to 13 mm pipes.
- Instruction Manual: Comprehensive manual for easy installation and operation.
- Anti-Slip Tubes: Two anti-slip tubes for enhanced stability.
Applications
The BL Series sensors are perfectly suited for various industrial applications where non-contact liquid level detection is crucial. They can be used in:
- Chemical Processing: Monitoring liquid levels in chemical pipelines.
- Pharmaceutical Industry: Ensuring precise liquid measurements in production lines.
- Food and Beverage Industry: Detecting liquids in transparent tubing during processing and packaging.
- Water Treatment Plants: Monitoring fluid levels in transparent pipes for water management systems.
