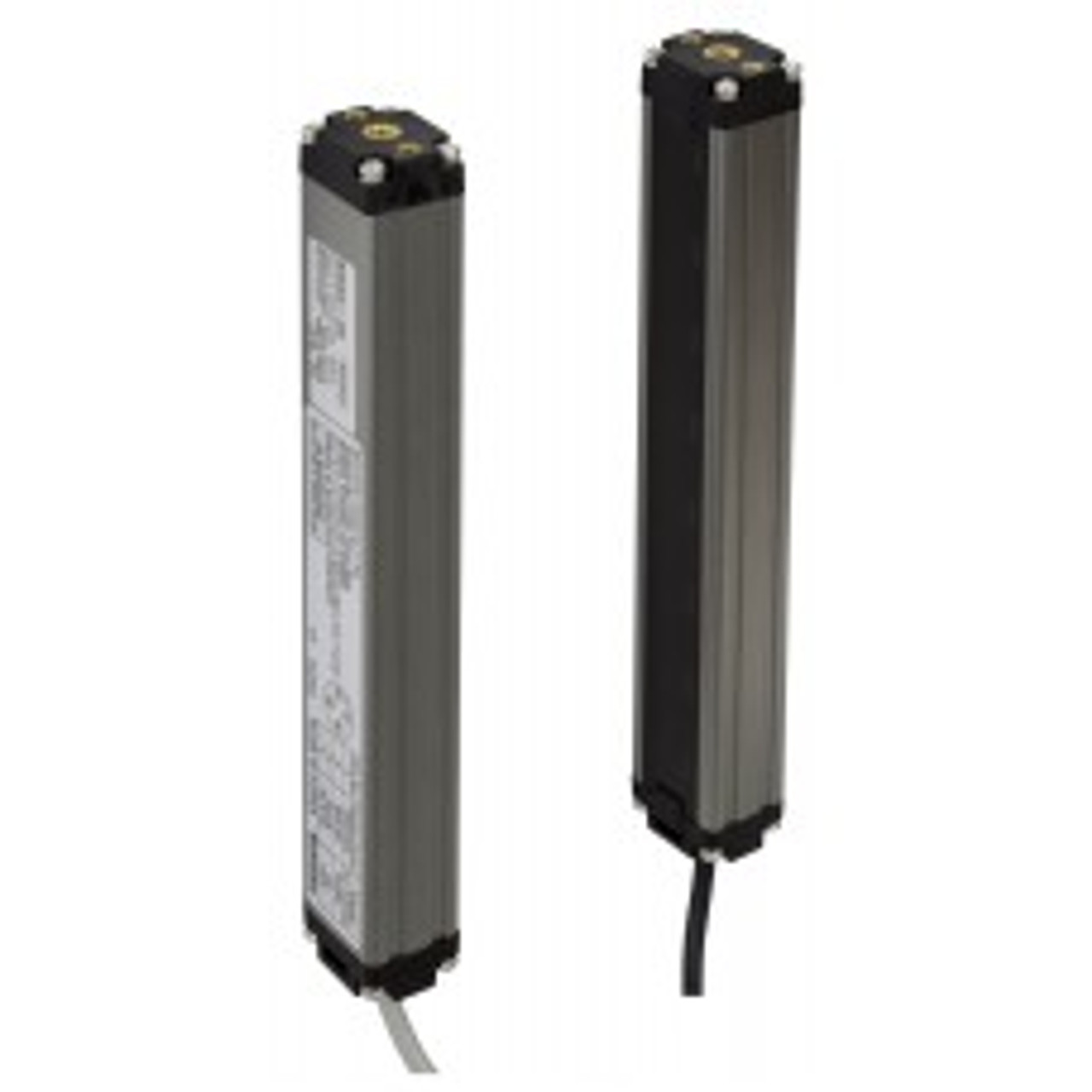

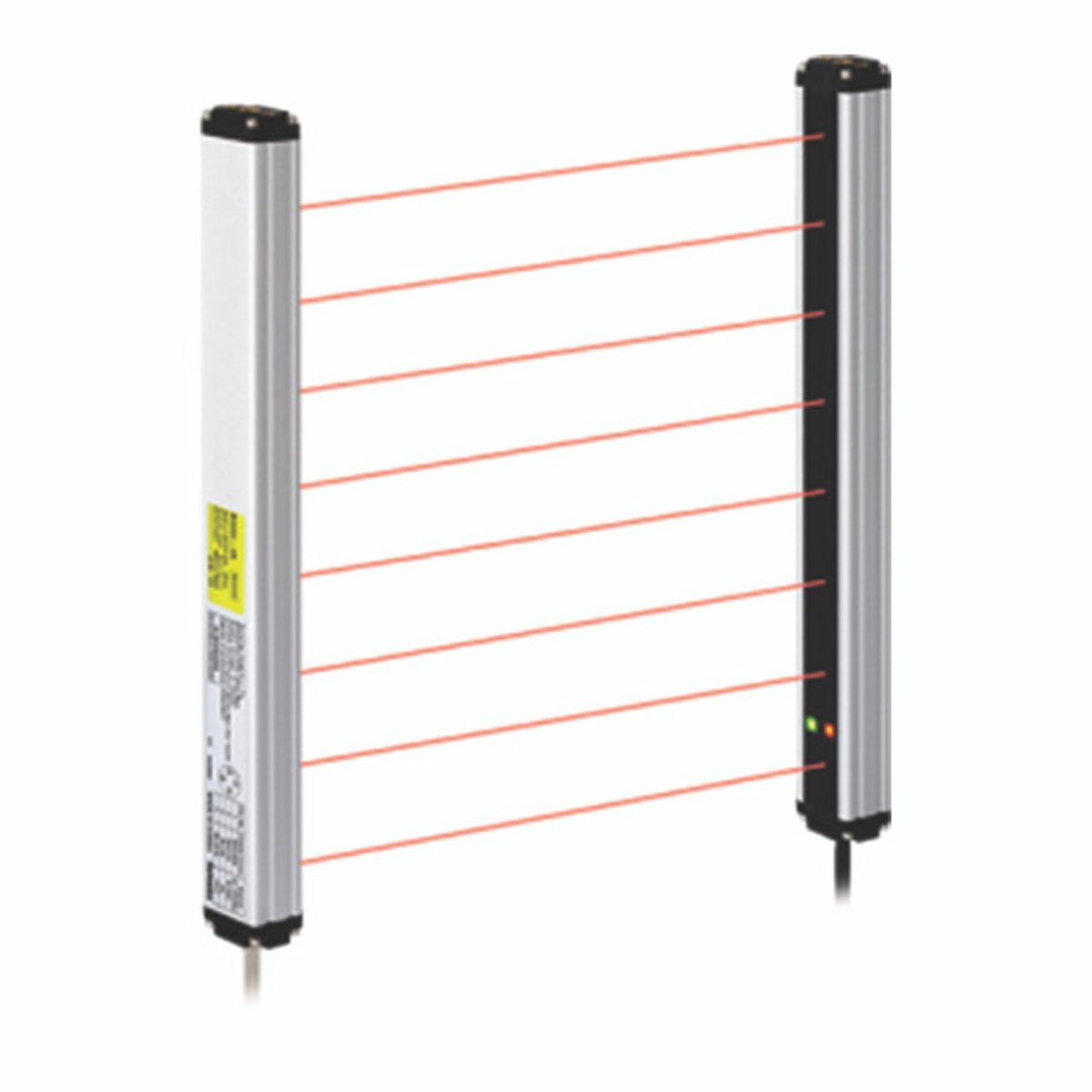

Light Curtain 24 Optical Axes, PNP Open Collector – BW40-24P
DESCRIPTION
BW series from Autonics is a range of area sensors with a variety of 22 types of products. BW40-24P from Autonics is an Area Sensor with polarity PNP (open collector output). 32pcs and 20mm optical axis pitch, 620mm sensing height and operating voltage of 12-24VDC.
BW40-24P from Autonics comes with the following properties:
- Long sensing distance up to 7M.
- 22 types of products.
(Optical axis: 20/40mm. Sensing height: 120~940mm)
- Increased sensing stability by minimizing the non-sensing area.
- Easy identification of the side, front and long-distance with high luminance twin operation indicators.
- Includes self-diagnosis function, mutual interference prevention function, external diagnosis function.
- Polished design and slim size (W 28.6 x H 22.6 x L ¡õmm).
- IP65 rated waterproof structure (IEC standard).
