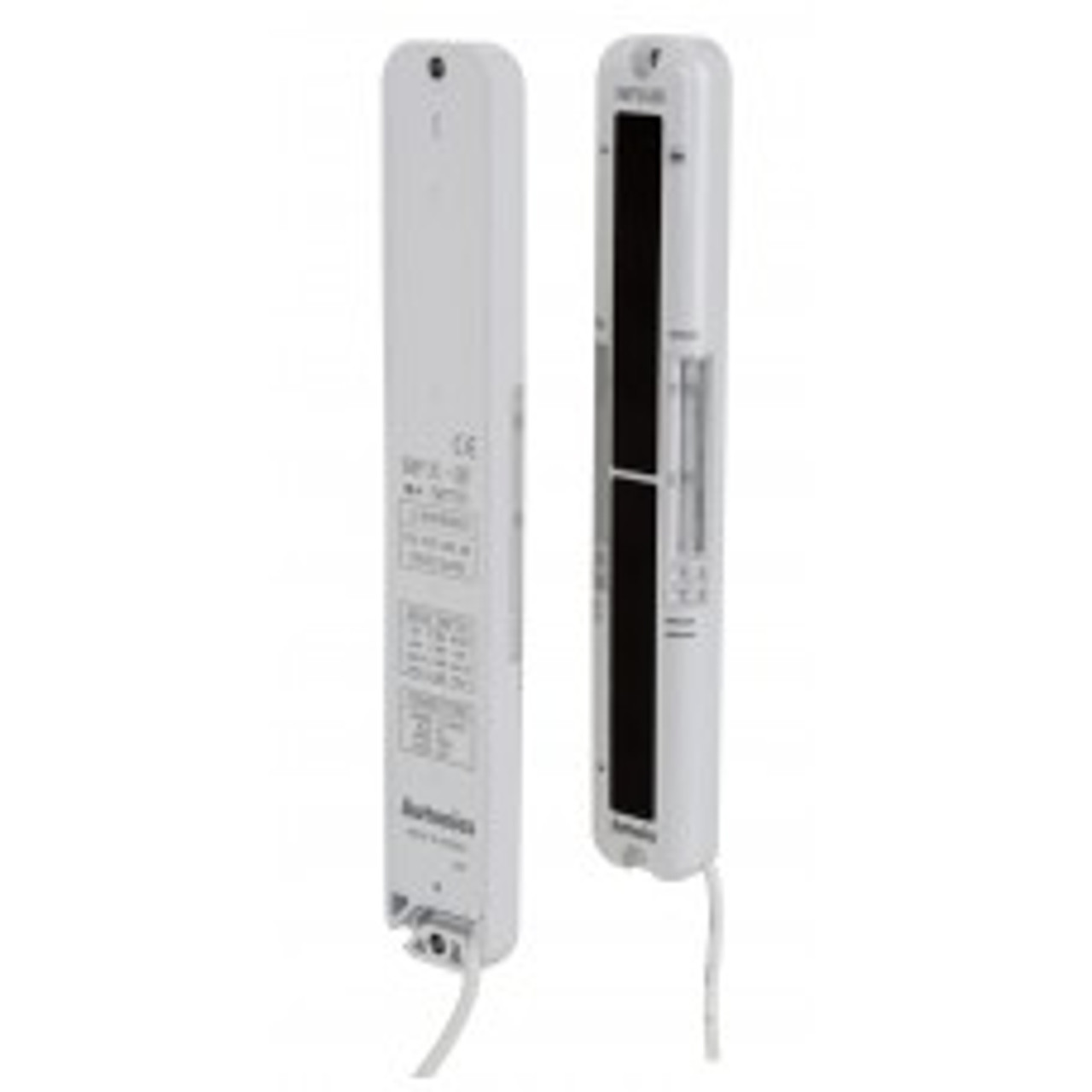

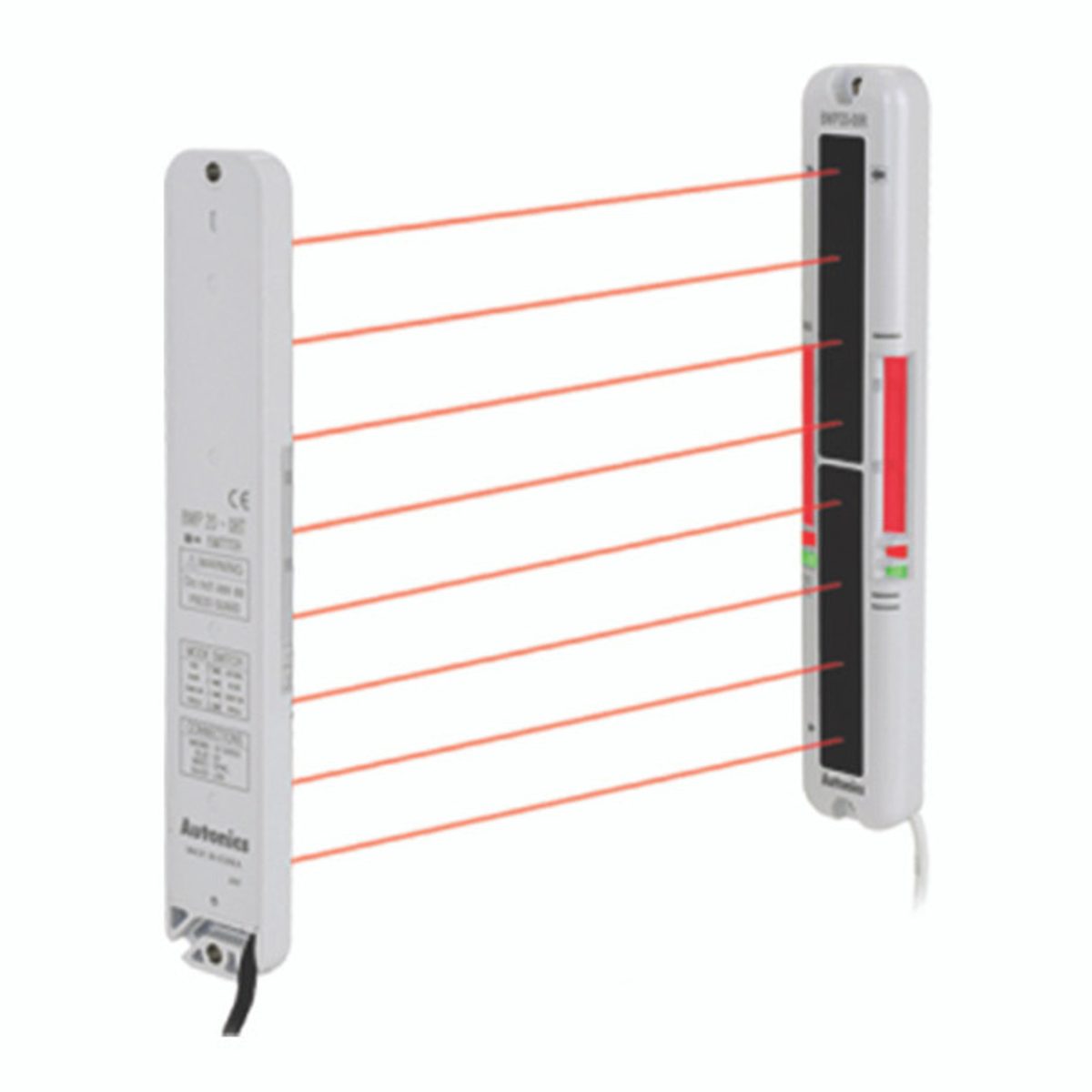

Light Curtain 20 Optical Axes, NPN Open Collector – BWP20-20
DESCRIPTION
BWP series from Autonics is a range of area sensors (plastic housing) with a variety of 4 types of products. BWP20-20 from Autonics is an Area Sensor with polarity NPN (open collector output). 20 numbers of optical axes & 20mm pitch optical axis, 300mm length, and operating voltage of 12 – 24 VDC
BWP20-20 from Autonics comes with the following properties:
- 13mm slim body with Fresnel a lens.
- Adoption of plastic (PC/ABS) injection case.
- Includes Stop transmission function, mutual interference prevention function. Job indicator blinks function. Light ON/Dark-on switching function.
- Easy to distinguishing side/front and long-distance with high luminance twin operation indicators.
- Fast response time, max 7ms.
- 4 types of products (optical axis pitch: 20mm, no. of optical axis 8, 12, 16, 20).
