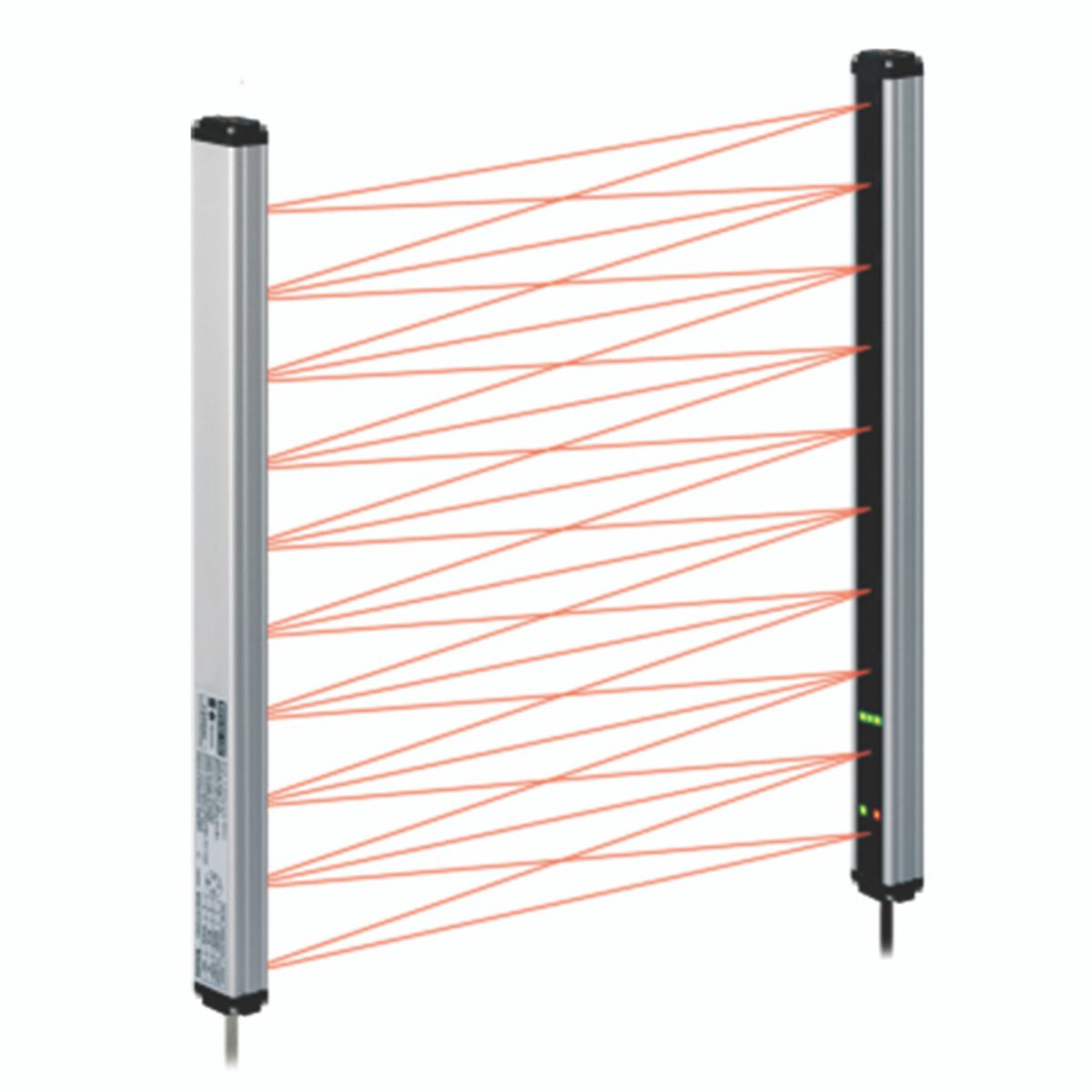

Light Curtain 14 Optical Axes, Light ON – BWC80-14H

This sensor is designed to operate at 12-24VDC with a sensing distance of 1 to 7m. The product has an aluminum case with an acrylic sensing part and an indicator providing it to work in the robust environment. The maximum current consumption for this device is only limited to max. 100mA. This device has also reverse polarity protection, makes it a reliable sensing device. The temperature range for this sensor is -20 to 60oC.

This product is not only user friendly but also it is environment friendly which is best suited for the robust environments. The device also has the electrical protection circuit built-in, which makes it an ideal and a safer device for the users.

There are various features for this device which are discussed below:

• Easy to install and easy to use.
• High luminous indicators for emitter and receiver to check the status at side, front and long distances.
• It uses 3-point cross beam netting method which minimizes non sensing areas, and increases ability to sense.
• It includes self-diagnosis function, mutual interference prevention function, external diagnosis function.
