Inductive Sensor M8, PNP NO – DW-AD-613-M8-122
DESCRIPTION

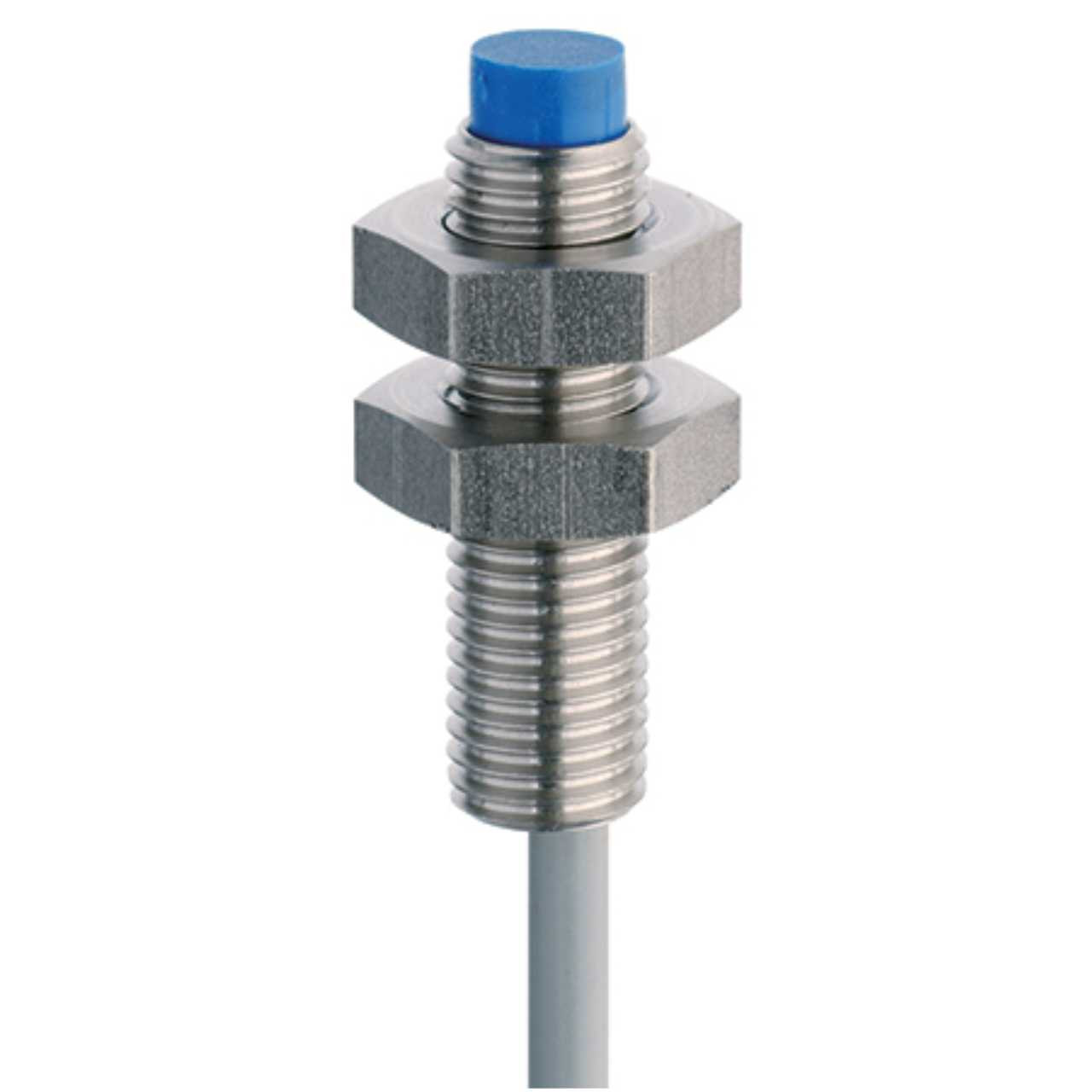

Contrinex proximity sensor M8, PNP NO DW-AD-613-M8-122
Non-embeddable (non-flush), Cable type connection, 2.5 mm sensing distance
The Contrinex proximity sensor DW-AS-623-M5 features outstanding noise protection and stable sensing performance due to its specialized sensor IC developed by Contrinex. This sensor comes in a round cylindrical shape, sensing distance of 2.5mm, sensing side diameter and housing size of M8, and Non-shield (non-flush) installation. The standard cylindrical inductive sensor can be used in diverse applications requiring non-contact detection of metallic objects.
As a quick report, this inductive proximity sensor provides:
- 8 mm sensing side diameter
- PNP Normally Open control output
- 2.5 mm sensing distance
- Non-embeddable (non-flush) installation
- Long life cycle and simple operations
- protections against short-circuits, induced overvoltages, and power supply reversal built-in
- IP67 ingress protection structure according to IEC standards
- Red LED status indicator
Body
This Contrinex proximity sensor’s case and nut parts are made of Stainless-steel V2A and its sensing side is made of PBTP (Crastin).
The DW-AD-613-M8-122 features IP67 ingress protection.
The LED on its body acts as the process indicator.
Connection
The Contrinex M8 PNP proximity sensor DW-AD-613-M8-122 features standard cable type connection. This cable covers the sensor’s 3 wires. It is 2 meters in length, and is made of PVC.
Sensing specifications
This inductive sensor’s sensing side diameter is 8 mm. This sensor’s maximum distance to detect its standard sensing target, which is a 8x8x1 mm piece of iron, is 2.5 mm. This so-called sensing distance differs from one sensing target to another, based on their material, size, etc. You could find out the sensing distance in Contrinex proximity sensors with a correction factor, mentioned in their datasheet.
This M8 PNP proximity sensor also features 0.12 mm repeat accuracy.
Control output
The DW-AD-613-M8-122 features PNP Normally Open control output. PNP stands for Positive-Negative-Positive transistors.
Temperature
The ambient temperature range that the DW-AD-613-M8-122 M8 PNP proximity sensor works properly in is -25 … 70°C.
Industries/applications:
- tool selection automated production lines
- robotic position-sensing
- control of micro-mechanisms
