Inductive Sensor M6.5, NPN NC, Flush – DW-AS-602-065-001
DESCRIPTION

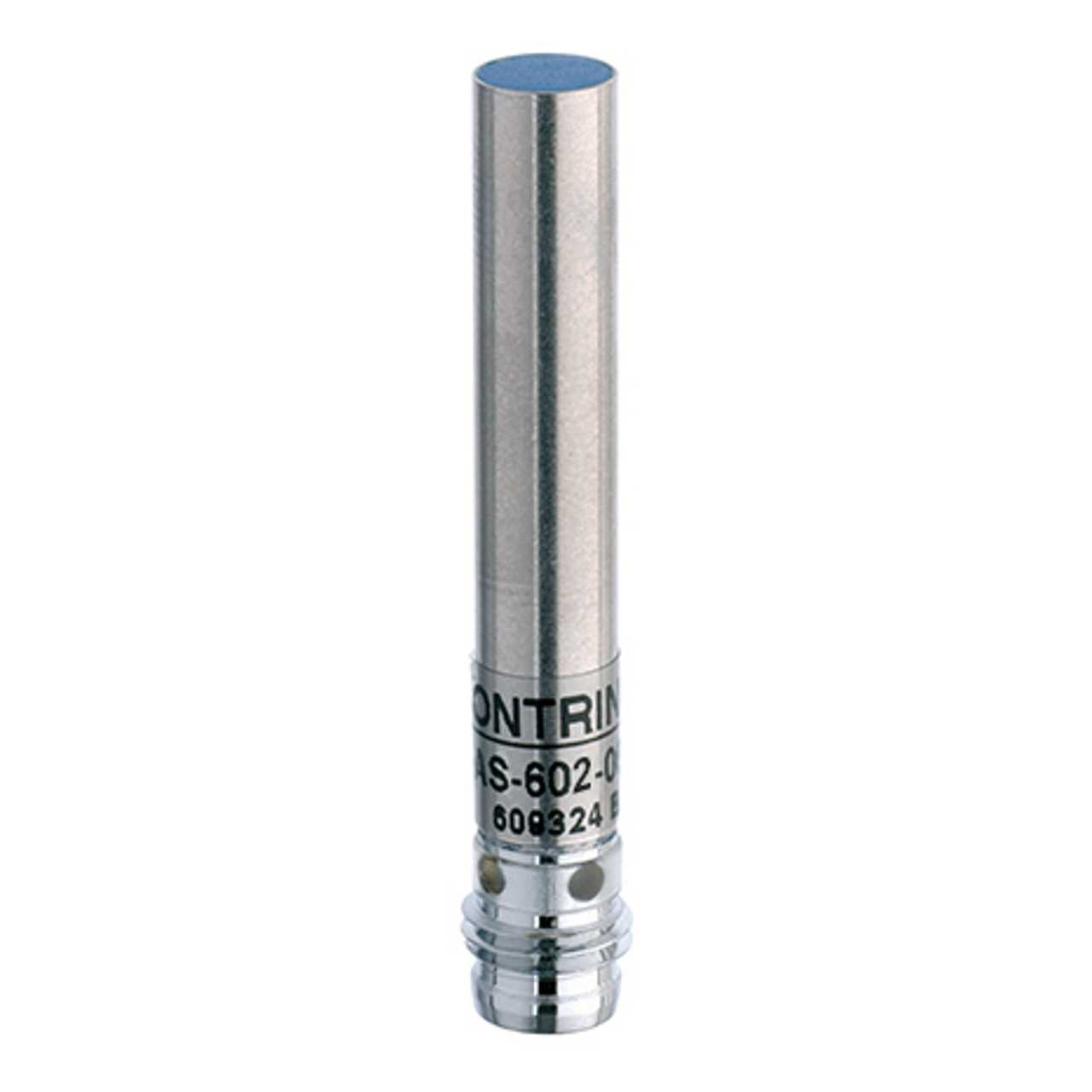

Contrinex proximity sensor, NPN NC DW-AS-602-065-001
Embeddable (flush), M8 3-pin, 1.5 mm sensing distance
The Contrinex proximity sensor DW-AS-623-M5 features outstanding noise protection and stable sensing performance due to its specialized sensor IC developed by Contrinex. This sensor comes in a round cylindrical shape, sensing distance of 1.5mm, sensing side diameter and housing size is Ø 6.5, and shield (flush) installation. The standard cylindrical inductive sensor can be used in diverse applications requiring non-contact detection of metallic objects.
As a quick report, this inductive proximity sensor provides:
- 6.5 mm housing size diameter
- NPN Normally Close control output
- 1.5 mm sensing distance
- Embeddable (flush) installation
- Long life cycle and simple operations
- protections against short-circuits, induced overvoltages, and power supply reversal built-in
- IP67 ingress protection structure according to IEC standards
- Red LED status indicator
Body
This Contrinex proximity sensor’s case and nut parts are made of Stainless-steel V2A and its sensing side is made of PA66.
The DW-AS-602-065-001 features IP67 ingress protection.
The LED on its body acts as the process indicator.
Connection
The Contrinex M6.5 proximity sensor DW-AS-602-065-001 features a potted connector S8 connection. It is a 3-pin M8 electrical connection.
Sensing specifications
This inductive sensor’s sensing side diameter is Ø 6.5. This sensor’s maximum distance to detect its standard sensing target, which is a 6.5×6.5×1 mm piece of iron, is 1.5 mm. This so-called sensing distance differs from one sensing target to another, based on their material, size, etc. You could find out the sensing distance in Contrinex proximity sensors with a correction factor, mentioned in their datasheet.
This M6.5 proximity sensor also features 0.07 mm repeat accuracy.
Control output
The DW-AS-602-065-001 features NPN Normally Close control output. NPN stands for Negative-Positive-Negative transistors.
Temperature
The ambient temperature range that the DW-AS-602-065-001 M6.5 proximity sensor works properly in is -25 … 70°C.
Industries/applications:
- tool selection automated production lines
- robotic position-sensing
- control of micro-mechanisms
