Inductive Sensor M4, PNP NC, Flush – DW-AD-624-M4
DESCRIPTION

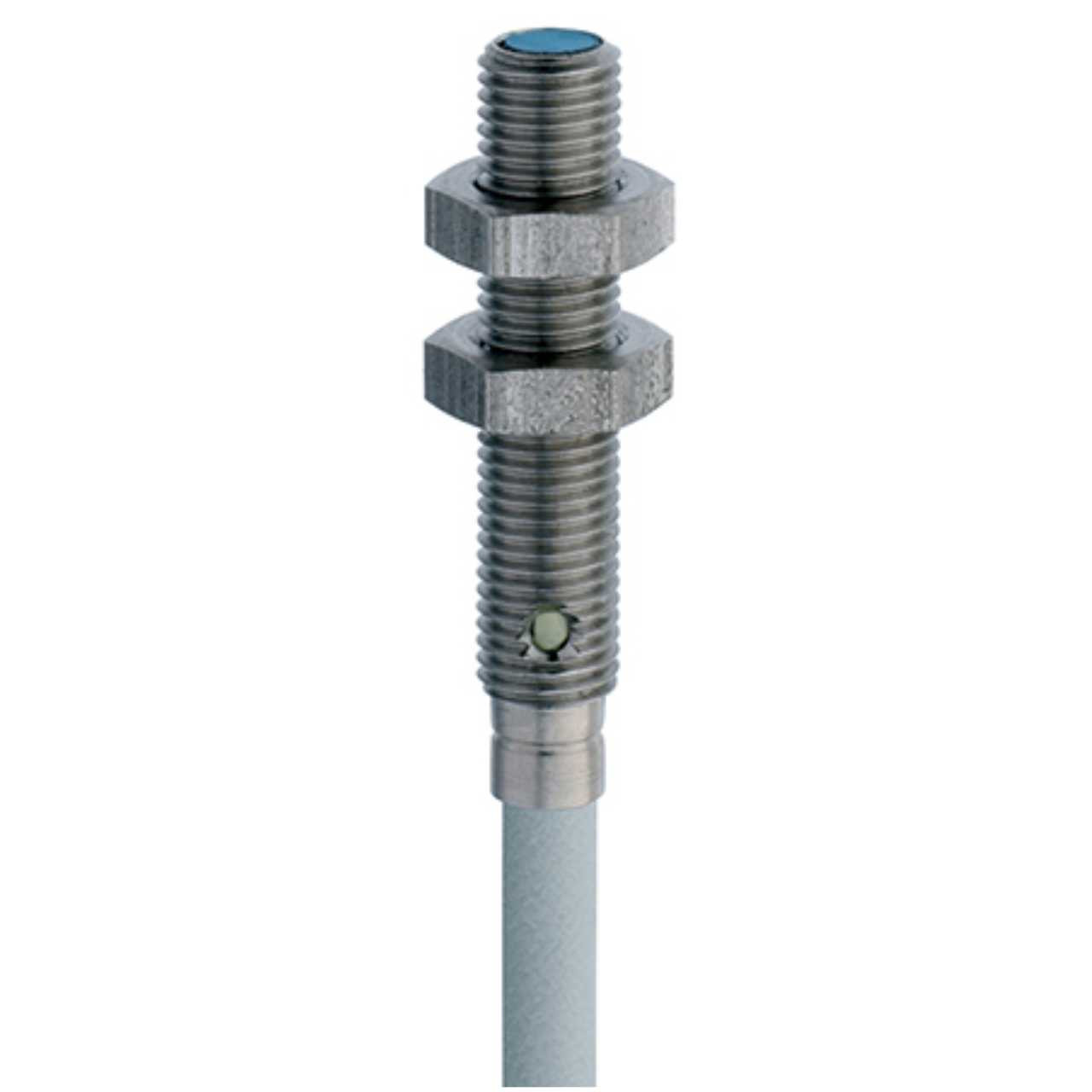

Contrinex proximity sensor M4, PNP NC DW-AD-624-M4
Embeddable (flush), Cable type connection, 1 mm Sensing distance
The Contrinex proximity sensor DW-AD-624-M4 features outstanding noise protection and stable sensing performance due to its specialized sensor IC developed by Contrinex. This sensor comes in a round cylindrical shape, sensing distance of 1mm, sensing side diameter and housing size of M4, and shield (flush) installation. The standard cylindrical inductive sensor can be used in diverse applications requiring non-contact detection of metallic objects.
As a quick report, this inductive proximity sensor provides:
- 4 mm sensing side diameter
- PNP Normally Closed control output
- 1 mm sensing distance
- Embeddable (flush) installation
- Long life cycle and simple operations
- protections against short-circuits, induced overvoltages, and power supply reversal built-in
- IP67 ingress protection structure according to IEC standards
- Red LED status indicator
Body
This Contrinex proximity sensor’s case and nut parts are made of Stainless-steel V2A and its sensing side is made of Polyester.
The DW-AD-624-M4 features IP67 ingress protection.
The LED on its body acts as the process indicator.
Connection
The Contrinex PNP M4 proximity sensor DW-AD-624-M4 features standard cable type connection. This cable covers the sensor’s 3 wires. It is 2 meters in length, and is made of PUR.
Sensing specifications
This inductive sensor’s sensing side diameter is 4 mm. This sensor’s maximum distance to detect its standard sensing target, which is a 4x4x1 mm piece of iron, is 1 mm. This so-called sensing distance differs from one sensing target to another, based on their material, size, etc. You could find out the sensing distance in Contrinex proximity sensors with a correction factor, mentioned in their datasheet.
This PNP M4 proximity sensor also features 0.02 mm repeat accuracy.
Control output
The DW-AD-624-M4 features PNP Normally Closed control output. PNP stands for Positive-Negative-Positive transistors.
Temperature
The ambient temperature range that the DW-AD-624-M4 PNP M4 proximity sensor works properly in is -25 … 70°C.
Industries / applications:
- Tool selection automated production lines
- Robotic position-sensing
- Control of micro-mechanisms
