Inductive sensor M30, PNP NO – DW-AS-633-M30-002
DESCRIPTION

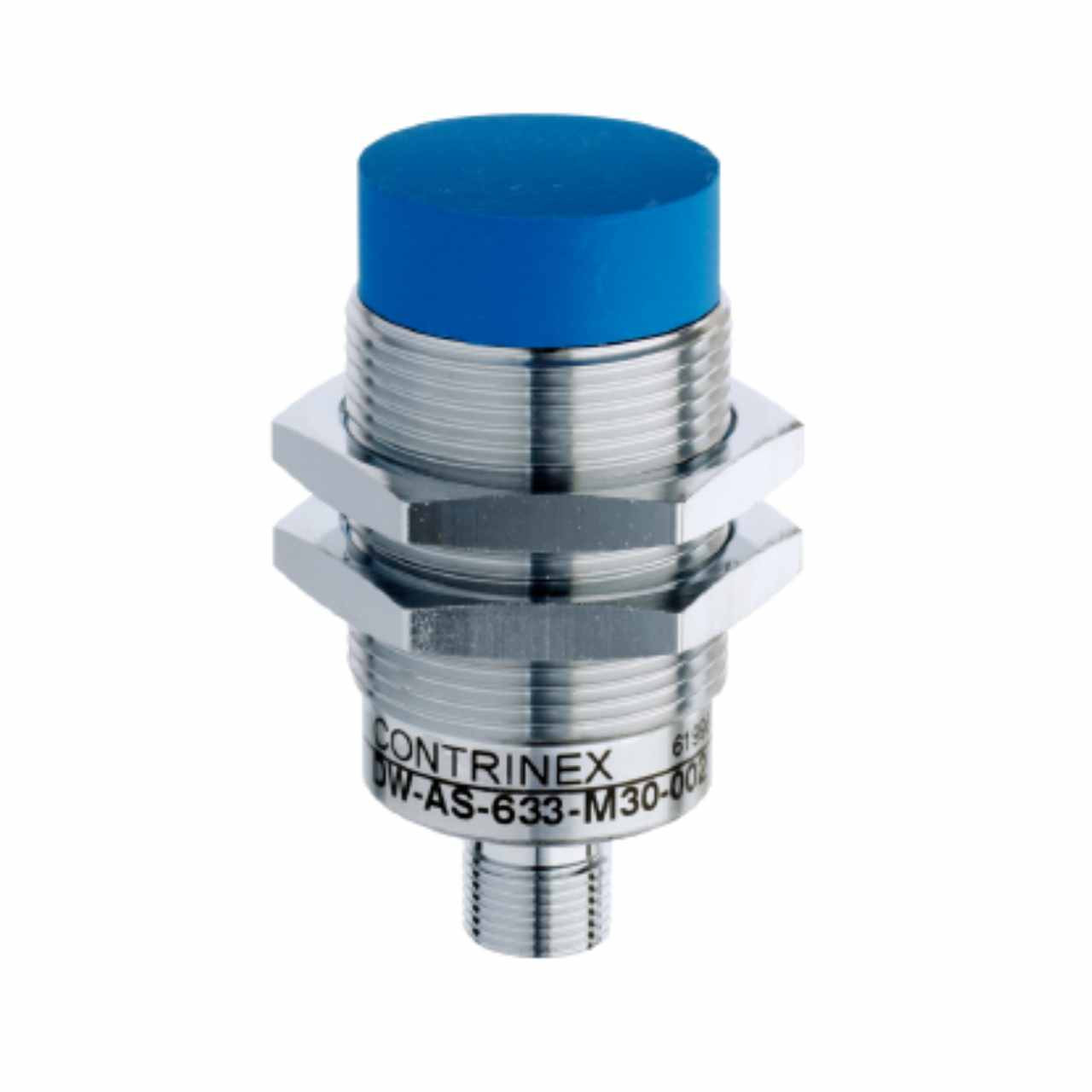

Contrinex proximity sensor M30, PNP NO – DW-AS-633-M30-002
Non-embeddable (non-flush), M12 4-pin, 25 mm sensing distance
The Contrinex proximity sensor DW-AS-623-M5 features outstanding noise protection and stable sensing performance due to its specialized sensor IC developed by Contrinex. This sensor comes in a round cylindrical shape, sensing distance of 25mm, sensing side diameter and housing size of M30, and Non-shield (non-flush) installation. The standard cylindrical inductive sensor can be used in diverse applications requiring non-contact detection of metallic objects.
As a quick report, this inductive proximity sensor provides:
- 30 mm sensing side diameter
- PNP Normally Open control output
- 25 mm sensing distance
- Non-embeddable (non-flush) installation
- Long life cycle and simple operations
- protections short-circuits and Voltage reversal
- IP67 ingress protection structure according to IEC standards
- Yellow LED status indicator
Body
This Contrinex proximity sensor’s case and nut parts are made of Nickel-plated brass and its sensing side is made of PBTP.
The DW-AS-633-M30-002 features IP67 ingress protection.
The LED on its body acts as the process indicator.
Connection
The Contrinex proximity sensor DW-AS-633-M30-002 features a 4-pin M12 electrical connection.
Sensing specifications
This inductive sensor’s sensing side diameter is 30 mm. This sensor’s maximum distance to detect its standard sensing target, which is a 75x75x1 mm, FE 360 piece of iron, is 25 mm. This so-called sensing distance differs from one sensing target to another, based on their material, size, etc. You could find out the sensing distance in Contrinex proximity sensors with a correction factor, mentioned in their datasheet.
This M30 PNP NO proximity switch also features 0.75 mm repeat accuracy.
Control output
The DW-AS-633-M30-002 features PNP Normally Open control output. PNP stands for Positive-Negative-Positive transistors.
Temperature
The ambient temperature range that the DW-AS-633-M30-002 M30 PNP NO proximity switch works properly in is -25 … 70°C.
Industries / applications:
- Tool selection automated production lines
- Robotic position-sensing
- Control of micro-mechanisms
