Inductive Sensor M30, NPN NO, Flush – PRD30-15DN
DESCRIPTION

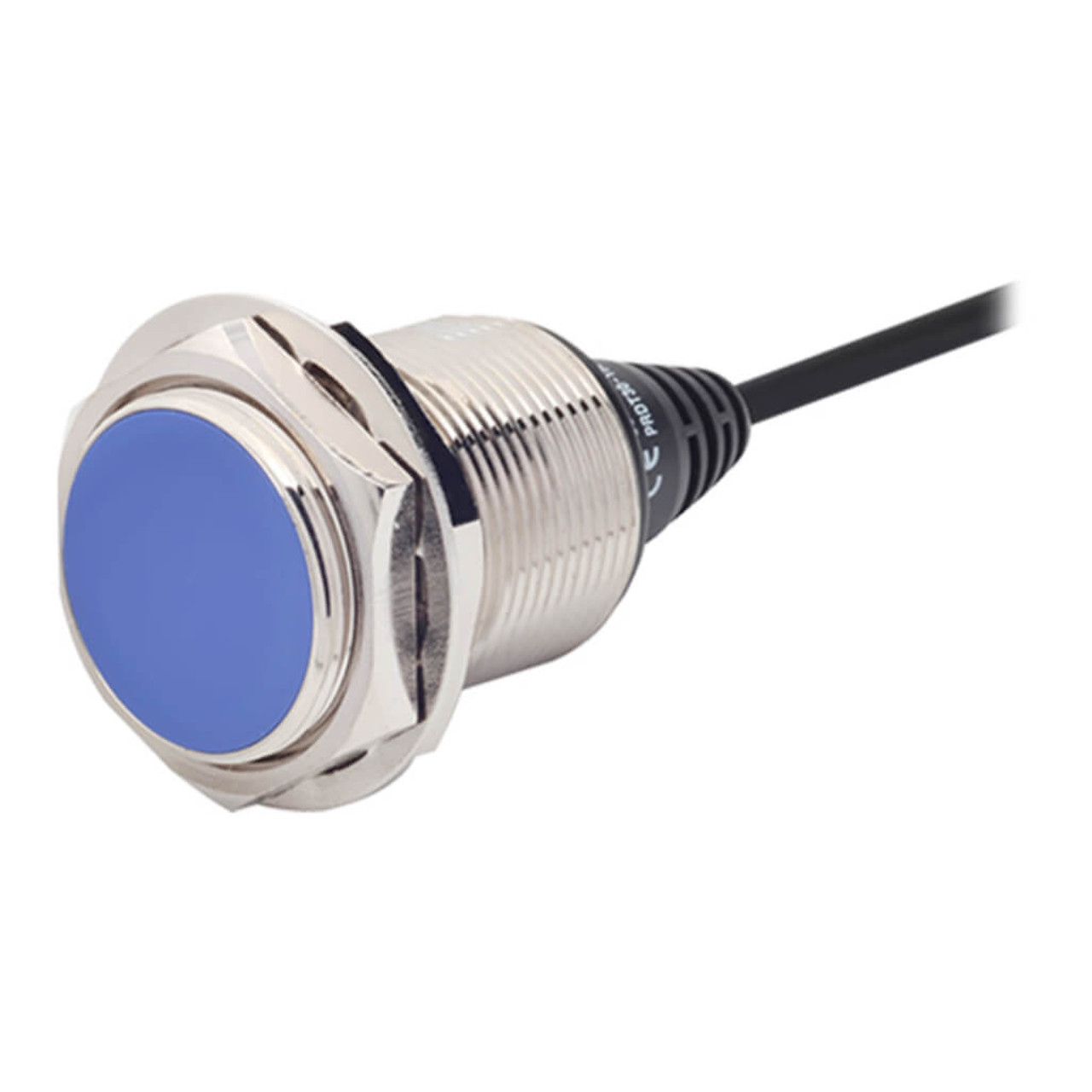

Autonics proximity sensor M30, NPN NO PRD30-15DN
Shield (flush), Long distance, 15 mm sensing distance
The Autonics proximity sensor PRD30-15DN features outstanding noise protection and stable sensing performance due to its specialized sensor IC developed by Autonics. This sensor comes in a round cylindrical shape, sensing distance of 15mm, sensing side diameter and housing size of m30 and Shield (flush) installation. The standard cylindrical inductive sensor can be used in diverse applications requiring non-contact detection of metallic objects.
As a quick report, this inductive proximity sensor provides:
- 30 mm sensing side diameter
- NPN Normally Open control output
- 15 mm sensing distance
- Shield (flush) installation
- Long sensing distance (1.5 to 2 times longer sensing distance guaranteed compared to existing models)
- Improved noise resistance
- Long life cycle and high reliability, and simple operation
- Built-in surge protection, reverse polarity protection, over-current protection circuit
- IP67 ingress protection structure according to IEC standards
- Red LED status indicator
- Alternative to micro switches and limit switches.
Body
This Autonics proximity sensor’s case and nut parts are made of nickel-plated brass.
The PRD30-15DN features IP67 ingress protection.
The red LED on its body acts as the process indicator.
Connection
The Autonics PRD series proximity sensor PRD30-15DN features standard cable type connection. This cable covers the sensor’s 3 wires.
Sensing specifications
This inductive sensor’s sensing side diameter is 30 mm. The maximum distance that this sensor can detect its standard sensing target, which is a 45x45x1 mm piece of iron, is 15 mm. This so-called sensing distance differs from one sensing target to another, based on their material, size, etc.
Although almost no one talks about the setting distance of an inductive sensor, it is a big deal to know this concept. Every sensor can detect its standard sensing target in a specified range, no matter what changes occur in ambient temperature, voltage fluctuations, etc. This distance, which is called the setting distance, is from 0 to 10.5 mm for this proximity sensor.
Control output
The PRD30-15DN features NPN Normally Open control output. NPN stands for Positive-Negative-Positive transistors.
Temperature
There are limitations in temperature and humidity in which PRD30-15DN proximity sensor is used:
- Storage temperature: -30 … 80°C
- Storage humidity: 35 to 95%RH
- Ambient temperature: -25 … 70°C
- Ambient humidity: 35 to 95%RH
Environment resistance is rated at no freezing or condensation.
Industries / applications
- Detect trays in rubber press machines of shoe manufacturing lines
- Detect the presence of carriers on conveyor belts during manufacturing of electrical parts
- Automation system example of an elevator, escalator, and parking system
- Detect and count the quantity of bottles during beverage packaging process
- Detect the plates on the turntables and control the set/fixed position of the turntables
- Limit switches to check the precise location of parts in automatic drilling machines
