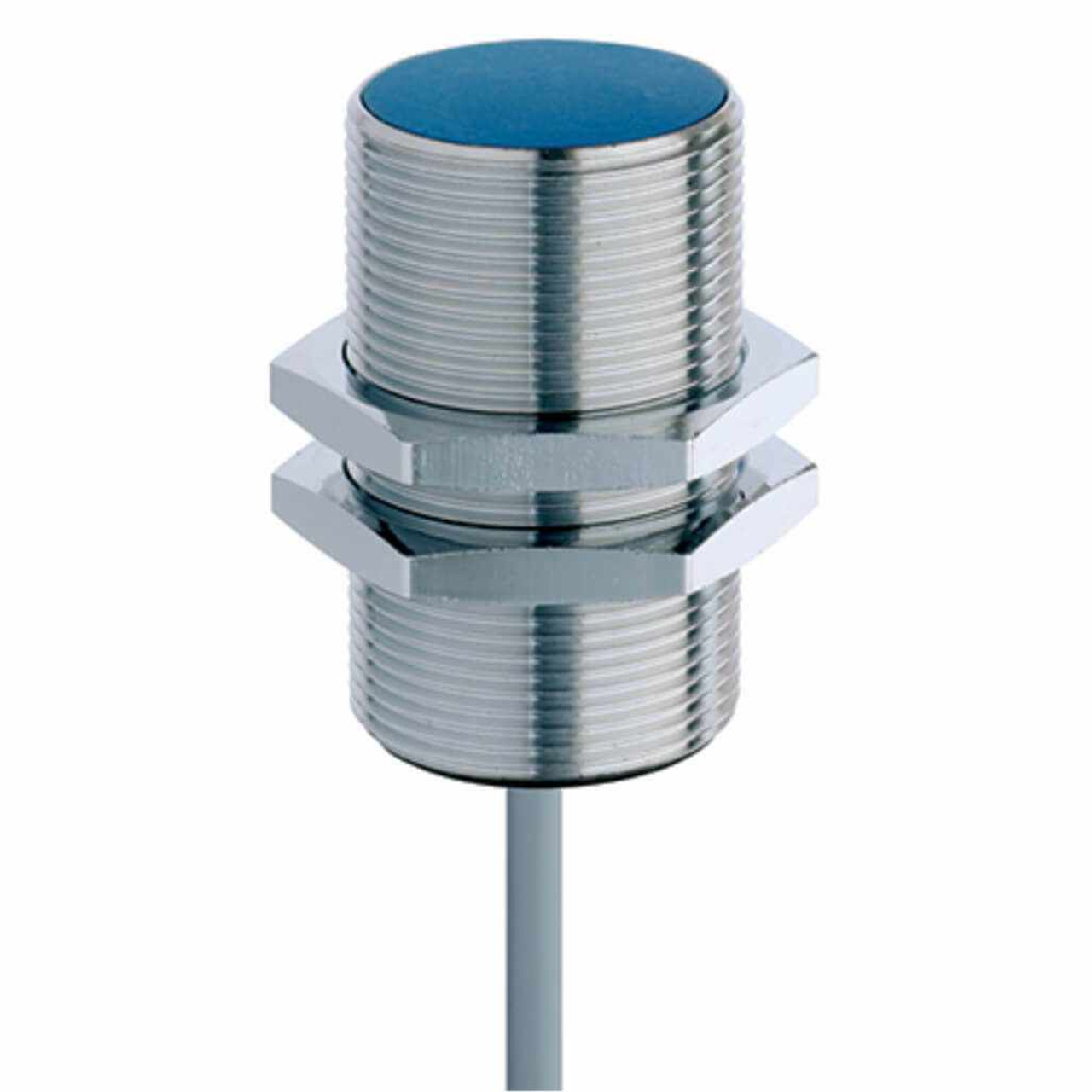

Inductive Sensor M30, 2 wire, Normally Open, Flush – DW-AD-607-M30

DESCRIPTION

Contrinex inductive sensor M30, 2-wire, NO – DW-AD-607-M30

Cable type connection, Embeddable, 10 mm Sensing distance, Standard output

Body

The DW-AD-607-M30 has housing size of M30 and the mounting type is embeddable. This proximity sensor has Chrome-plated brass housing material and has the enclosure rating IP 67.

Connection

Connection of the DW-AD-607-M30 inductive proximity sensor is 2 m cable. This cable material is made of PVC and it is a 2 wire connection.

Sensing specifications

The diameter of DW-AD-607-M30 sensing side is 30 mm and the sensing distance for this proximity sensor is 10 mm.

Control output

The control output of this products is Normally Open 2-wire with switching frequency of 25 Hz and the input for this proximity sensor is 20 to 265 VAC and 10 to 320 VDC.

Temperature

Ambient operating temperature for DW-AD-607-M30 proximity sensor is from -25 to +70°C and temperature drift is ≤ 10% Sr.

Industries / applications:

  • Counting parts in a system.
  • Automatic car washes.
  • Detection of broken metal parts of various industrial devices.
  • Detection of elevator door closure.
  • Car body assembly.
  • Production of coils and transformers.
  • Automated industrial processes.
  • Identify the smallest changes in the gears of metal gears.
  • Measure and control speed.
  • Detection and detection of mechanical movements.
  • Separation of metal parts.
  • Measurement and calculation of thickness in metal parts.
  • Measuring and calculating the distance from the parts.
  • Metal detectors.
  • Traffic lights and road traffic control.
  • To detect the presence of an object in a selected program and at the time of inspection.
  • Conveyor system control.
  • 3 important points in choosing the inductive proximity sensor.
  • Inductive proximity sensors only detect metal objects.
  • Strong magnetic fields affect the performance of inductive proximity sensors.
