Inductive Sensor M18, NPN NO – PRD18-14DN
DESCRIPTION

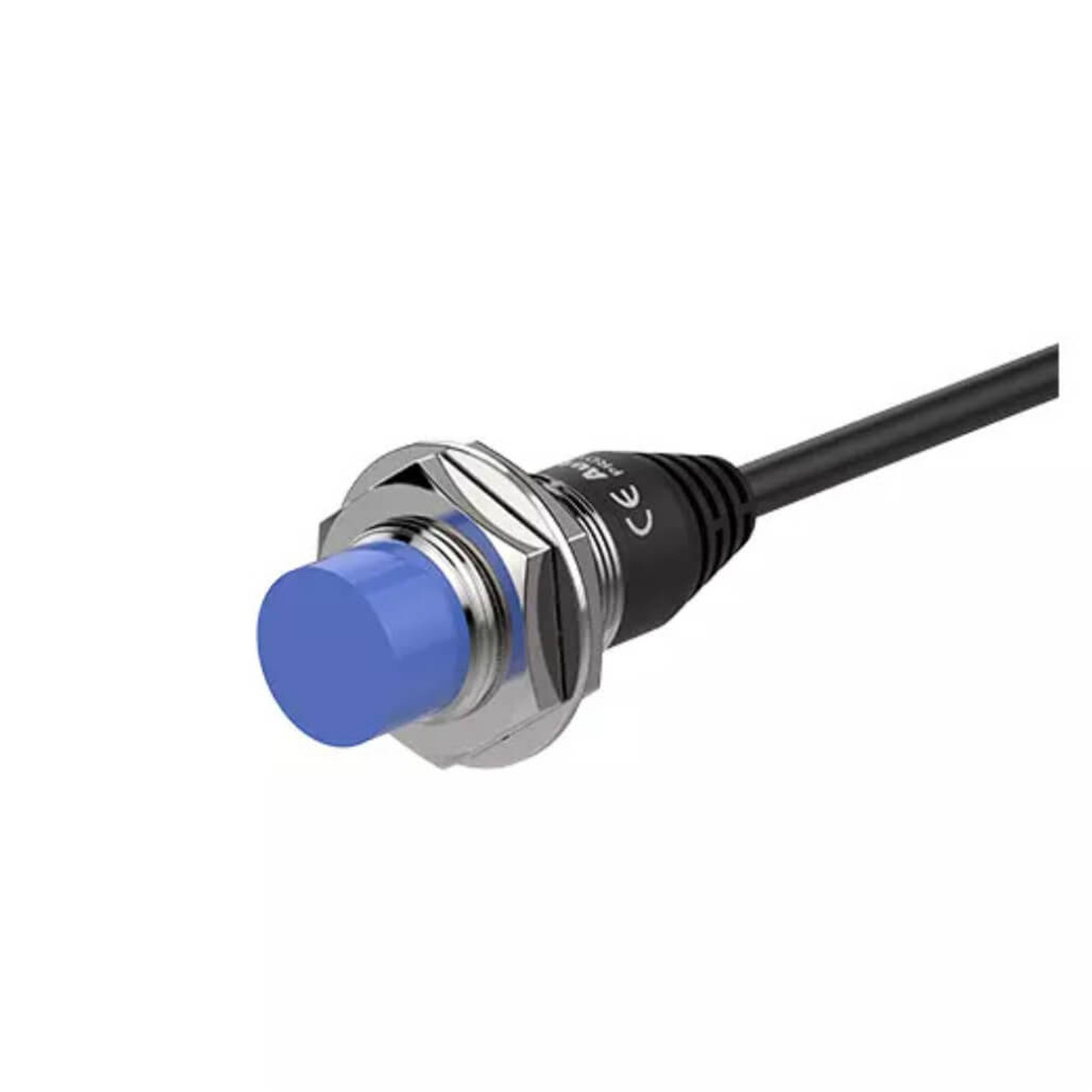

Autonics proximity sensor M18, NPN NO PRD18-14DN
Non-shield (non-flush), Long distance, 14 mm Sensing distance
The Autonics proximity sensor PRD18-14DN features outstanding noise protection and stable sensing performance due to its specialized sensor IC developed by Autonics. This sensor comes in a round cylindrical shape, sensing distance of 14mm, sensing side diameter and housing size of m18 and Non-shield (non-flush) installation. The standard cylindrical inductive sensor can be used in diverse applications requiring non-contact detection of metallic objects.
As a quick report, this cylindrical inductive sensor provides:
- 18 mm sensing side diameter
- NPN Normally Open control output
- 14 mm sensing distance
- Non-shield (non-flush) installation
- Longer sensing distance up to 25mm
- Improved noise resistance
- Long life cycle and reliable
- Reverse polarity, surge, and over-current protection
- IP67 ingress protection structure according to IEC standards
- Red LED status indicator
- Alternative to micro switches and limit switches.
Body
This Autonics proximity sensor’s case and nut parts are made of nickel-plated brass.
The PRD18-14DN features IP67 ingress protection.
The red LED on its body acts as the process indicator.
Connection
The Autonics proximity sensor PRD18-14DN features standard cable type connection. This cable covers the sensor’s 3 wires.
Sensing specifications
This inductive sensor’s sensing side diameter is 18 mm. The maximum distance that this sensor can detect its standard sensing target, which is a 40x40x1 mm piece of iron, is 14 mm. This so-called sensing distance differs from one sensing target to another, based on their material, size, etc.
Although almost no one talks about the setting distance of an inductive sensor, it is a big deal to know this concept. Every sensor can detect its standard sensing target in a specified range, no matter what changes occur in ambient temperature, voltage fluctuations, etc. This distance, which is called the setting distance, is from 0 to 9.8 mm for this proximity sensor.
Control output
The PRD18-14DN features NPN Normally Open control output. NPN stands for Negative-Positive-Negative transistors.
Temperature
There are limitations in temperature and humidity in which PRD18-14DN proximity sensor is used:
- Storage temperature: -30 … 80°C
- Storage humidity: 35 to 95%RH
- Ambient temperature: -25 … 70°C
- Ambient humidity: 35 to 95%RH
Environment resistance is rated at no freezing or condensation.
Industries / applications
- Detect trays in rubber press machines of shoe manufacturing lines
- Detect the presence of carriers on conveyor belts during manufacturing of electrical parts
- Automation system example of an elevator, escalator, and parking system
- Detect and count the quantity of bottles during beverage packaging process
- Detect the plates on the turntables and control the set/fixed position of the turntables
- Limit switches to check the precise location of parts in automatic drilling machines
Check this product applications:
- Inductive sensors check and observe presence and status of devices of hydraulic presses
- Blind detection is used in manufactured-to-measure fixtures that examine threaded inserts in molded automotive components
