Inductive Sensor M18, NPN NO – PRCML18-8DN

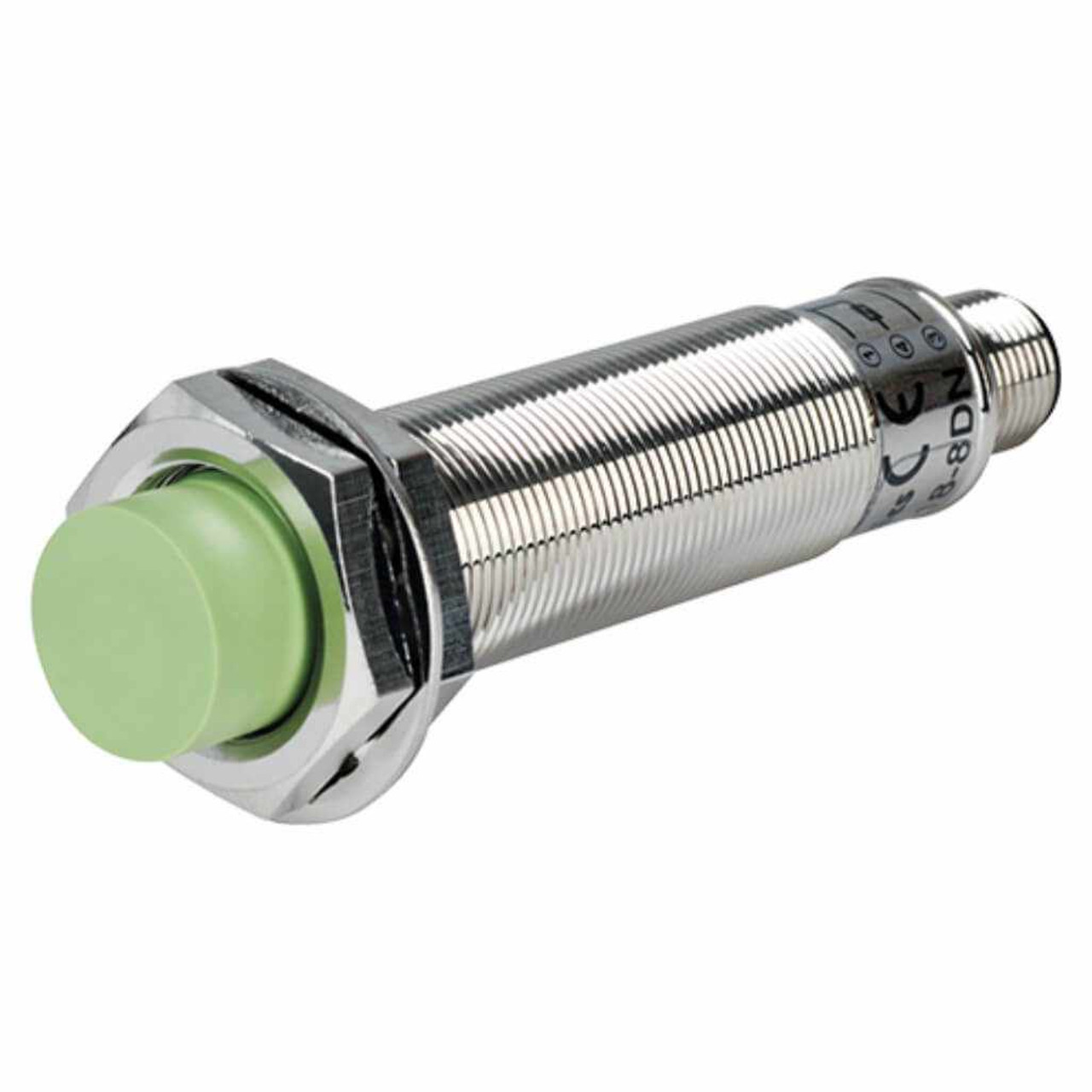

Autonics proximity sensor M18, NPN NO PRCML18-8DN

Non-shield (non-flush), Standard connector, 8 mm Sensing distance

The Autonics proximity sensor PRCML18-8DN features outstanding noise protection and stable sensing performance due to its specialized sensor IC developed by Autonics. This sensor comes in a round cylindrical shape, sensing distance of 8mm, sensing side diameter and housing size of m18 and Non-shield (non-flush) installation. The standard cylindrical inductive sensor can be used in diverse applications requiring non-contact detection of metallic objects.

As a quick report, this inductive proximity sensor provides:

• 18 mm sensing side diameter

• NPN Normally Open control output

• 8 mm sensing distance

• Non-shield (non-flush) installation

• Improved noise resistance

• Shorten the time of maintenance

• Reverse polarity, surge, and over-current protection

• IP67 ingress protection structure according to IEC standards

• Red LED status indicator

• Alternative to micro switches and limit switches.

Body

This Autonics proximity sensor’s case and nut parts are made of nickel-plated brass, its sensing side is made of PBT, and its washer is nickel plated iron made.

The PRCML18-8DN features IP67 ingress protection.

The red LED on its body acts as the process indicator.

Connection

The Autonics proximity sensor PRCML18-8DN features standard cable type connection. This black cable covers the sensor’s 3 wires.

Sensing specifications

This inductive sensor’s sensing side diameter is 18 mm. The maximum distance that this M18 NPN NO proximity sensor can detect its standard sensing target, which is an 25x25x1 mm piece of iron, is 8 mm. This so-called sensing distance differs from one sensing target to another, based on their material, size, etc.

Although almost no one talks about the setting distance of an inductive sensor, it is a big deal to know this concept. Every sensor can detect its standard sensing target in a specified range, no matter what changes occur in ambient temperature, voltage fluctuations, etc. This distance, which is called the setting distance, is from 0 to 5.6 mm for this proximity sensor.

Control output

The PRCML18-8DN features NPN Normally Open control output. NPN stands for Negative-Positive-Negative transistors.

Temperature

There are limitations in temperature and humidity in which PRCML18-8DN Autonics PR Series proximity sensor is used:

• Storage temperature: -30 … 80°C

• Storage humidity: 35 to 95%RH

• Ambient temperature: -25 … 70°C

• Ambient humidity: 35 to 95%RH

Environment resistance is rated at no freezing or condensation.

Industries / applications

• Part detection on industrial conveyor systems

• Automated production lines
