Inductive Sensor M18, NPN NO, Flush – DW-AD-601-M18
DESCRIPTION

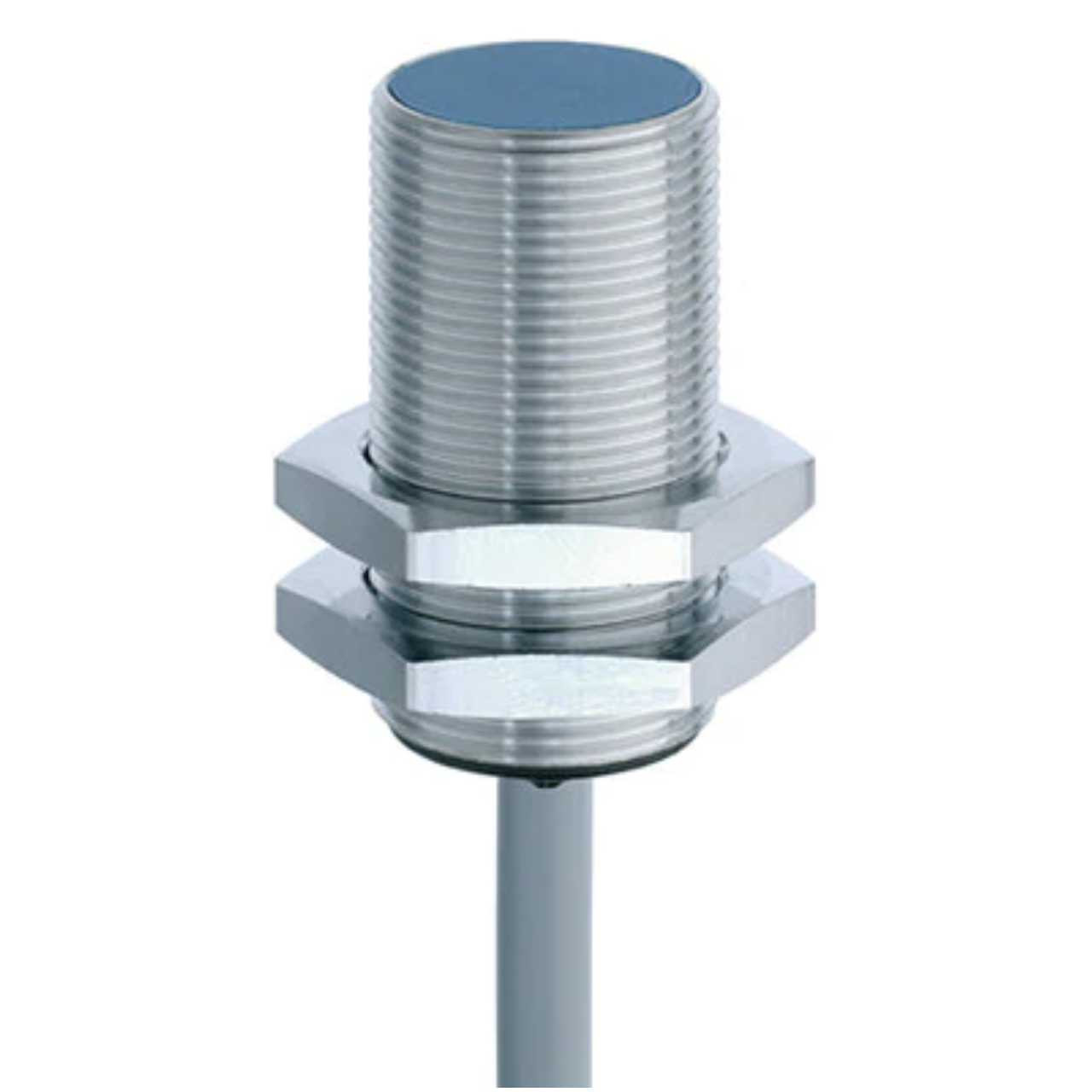

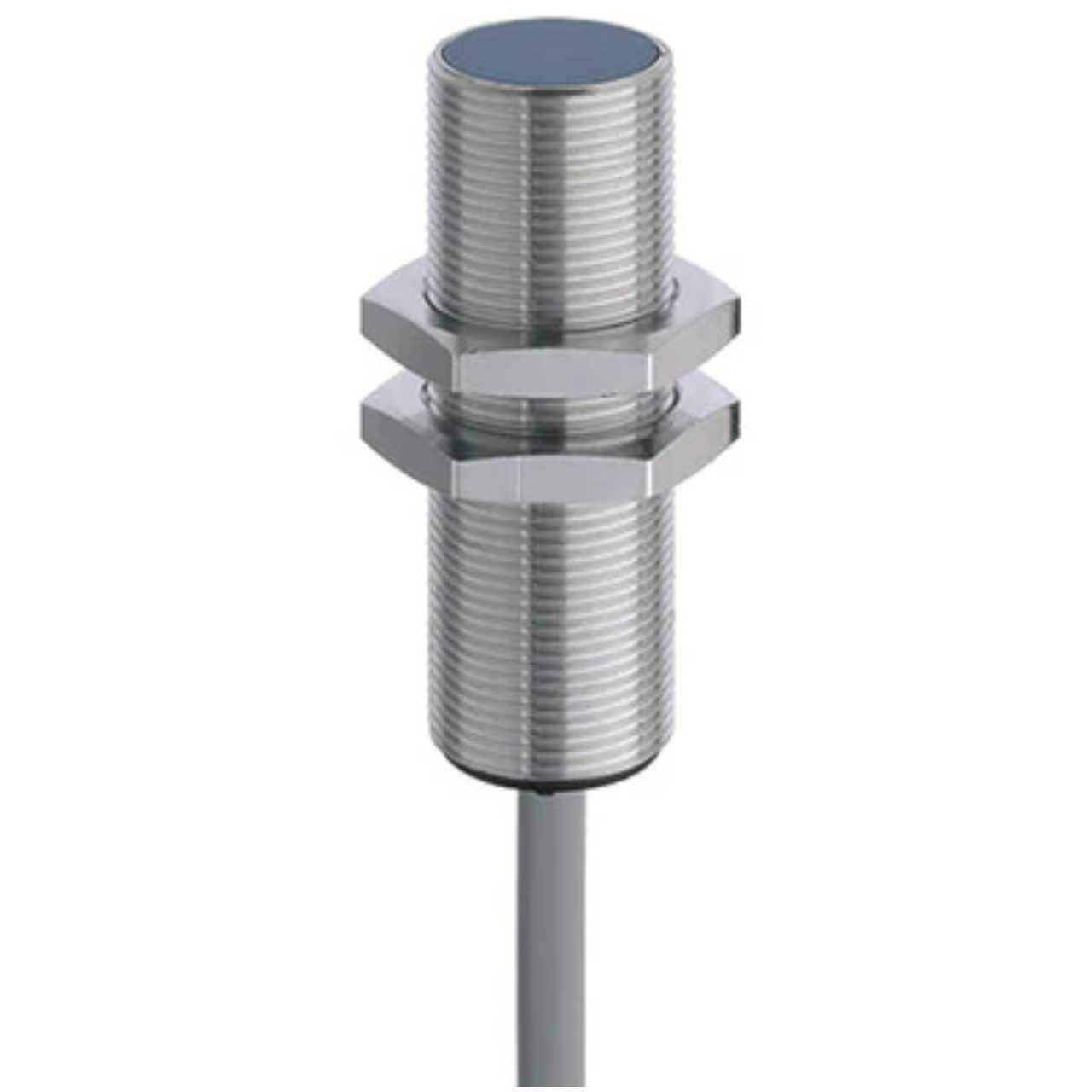

Contrinex inductive sensor M18, NPN NO – DW-AD-601-M18
Cable type connection, Embeddable, Standard output, 5 mm Sensing distance
Body
The DW-AD-601-M18 has housing size of M18 and the mounting type is embeddable. This proximity sensor has Nickel-plated brass housing material and has the enclosure rating IP 67.
Connection
Connection of the DW-AD-601-M18 inductive proximity sensor is 2 m cable. This cable material is made of PVC and it is a 3 wire connection.
Sensing specifications
The diameter of DW-AD-601-M18 sensing side is 18 mm and the sensing distance of this is 5 mm.
Control output
The control output of this products is Normally Open NPN with switching frequency of 2000 Hz and the input for this proximity sensor is 10 to 30 VDC.
Temperature
Ambient operating temperature for DW-AD-601-M18 proximity sensor is from -25 to +70°C and temperature drift is ≤ 10% Sr.
Industries / applications:
- Counting parts in a system.
- Automatic car washes.
- Detection of broken metal parts of various industrial devices.
- Detection of elevator door closure.
- Car body assembly.
- Production of coils and transformers.
- Automated industrial processes.
- Identify the smallest changes in the gears of metal gears.
- Measure and control speed.
- Detection and detection of mechanical movements.
- Separation of metal parts.
- Measurement and calculation of thickness in metal parts.
- Measuring and calculating the distance from the parts.
- Metal detectors.
- Traffic lights and road traffic control.
- To detect the presence of an object in a selected program and at the time of inspection.
- Conveyor system control.
- 3 important points in choosing the inductive proximity sensor.
- Inductive proximity sensors only detect metal objects.
- Strong magnetic fields affect the performance of inductive proximity sensors.
