Inductive Sensor M12, PNP NO – PRDCM12-8DP
DESCRIPTION

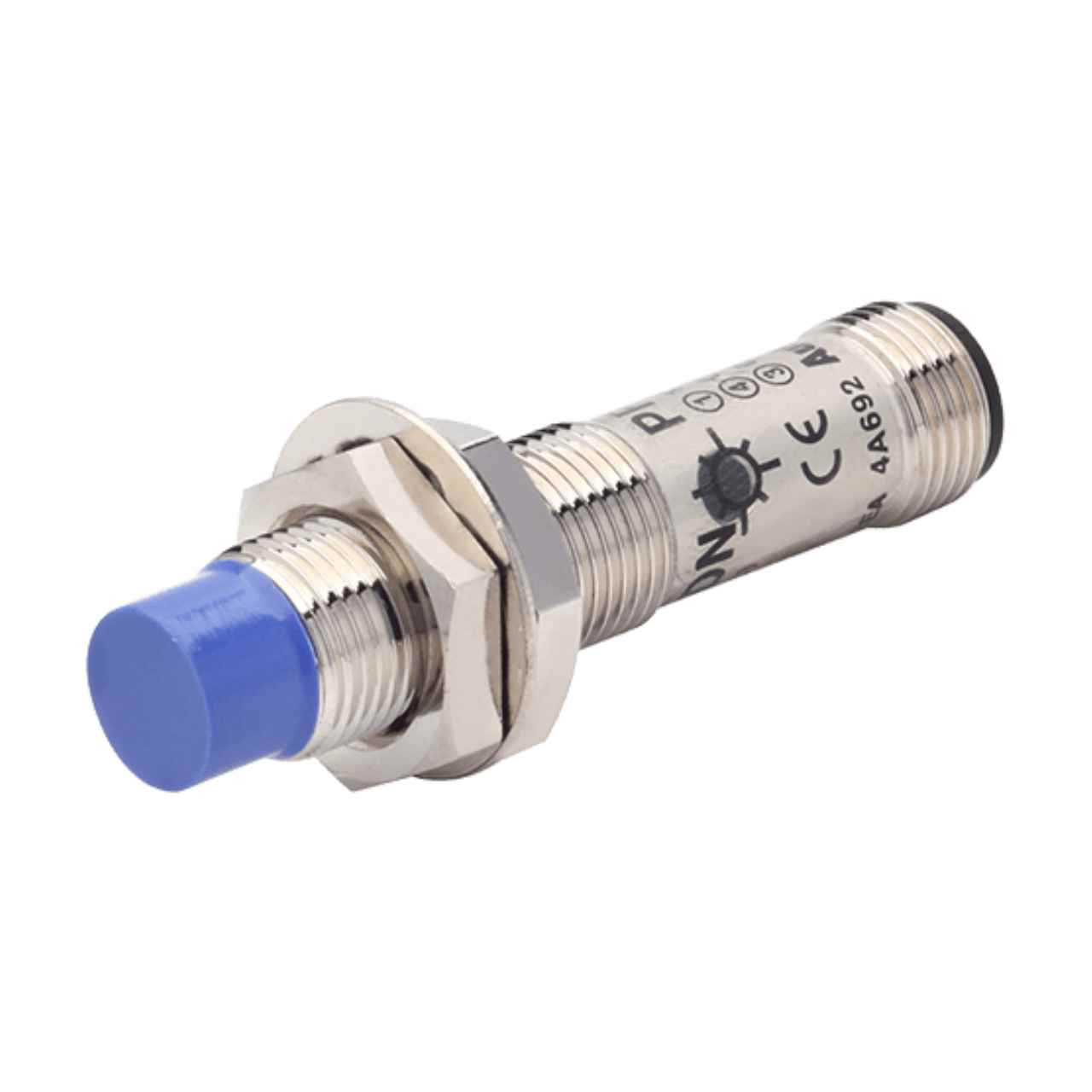

Autonics proximity sensor M12, PNP NO PRDCM12-8DP
Non-shield (non-flush), Long distance, 8 mm Sensing distance
The Autonics proximity sensor PRDCM12-8DP features outstanding noise protection and stable sensing performance due to its specialized sensor IC developed by Autonics. This sensor comes in a round cylindrical shape, sensing distance of 8mm, sensing side diameter and housing size of m12 and Non-shield (non-flush) installation. The standard cylindrical inductive sensor can be used in diverse applications requiring non-contact detection of metallic objects.
As a quick report, this inductive proximity sensor provides:
- 12 mm sensing side diameter
- PNP Normally Open control output
- 8 mm sensing distance
- Non-shield (non-flush) installation
- Long sensing distance (1.5 to 2 times longer sensing distance guaran)
- Advanced durability as comprehensive existing case and rear cap structure
- Easy to check operation from various angles with 4-side LED
- Improved the noise resistance with dedicated IC
- Shorten the time of maintenance
- Built-in surge protection, reverse polarity protection, overcurrent protection circuit
- IP67 ingress protection structure according to IEC standards
- Red LED status indicator
Body
This Autonics proximity sensor’s case and nut parts are made of nickel-plated brass.
The PRDCM12-8DP features IP67 ingress protection.
The red LED on its body acts as the process indicator.
Connection
The Autonics proximity sensor PRDCM12-8DP features standard cable type connection. This cable covers the sensor’s 3 wires.
Sensing specifications
This Autonics PRD series inductive sensor’s sensing side diameter is 12 mm. The maximum distance that this sensor can detect its standard sensing target, which is a 25x25x1 mm piece of iron, is 8 mm. This so-called sensing distance differs from one sensing target to another, based on their material, size, etc.
Although almost no one talks about the setting distance of an inductive sensor, it is a big deal to know this concept. Every sensor can detect its standard sensing target in a specified range, no matter what changes occur in ambient temperature, voltage fluctuations, etc. This distance, which is called the setting distance, is from 0 to 5.6 mm for this proximity sensor.
Control output
The PRDCM12-8DP features PNP Normally Open control output. PNP stands for Positive-Negative-Positive transistors.
Temperature
There are limitations in temperature and humidity in which PRDCM12-8DP PNP proximity sensor is used:
- Storage temperature: -30 … 80°C
- Storage humidity: 35 to 95%RH
- Ambient temperature: -25 … 70°C
- Ambient humidity: 35 to 95%RH
Environment resistance is rated at no freezing or condensation.
Industries / applications
- Detect trays in rubber press machines of shoe manufacturing lines
- Detect the presence of carriers on conveyor belts during manufacturing of electrical parts
- Automation system example of an elevator, escalator, and parking system
- Detect and count the quantity of bottles during beverage packaging process
- Detect the plates on the turntables and control the set/fixed position of the turntables
- Limit switches to check the precise location of parts in automatic drilling machines
