Inductive Sensor M12, PNP NO – PRCM12-4DP
DESCRIPTION

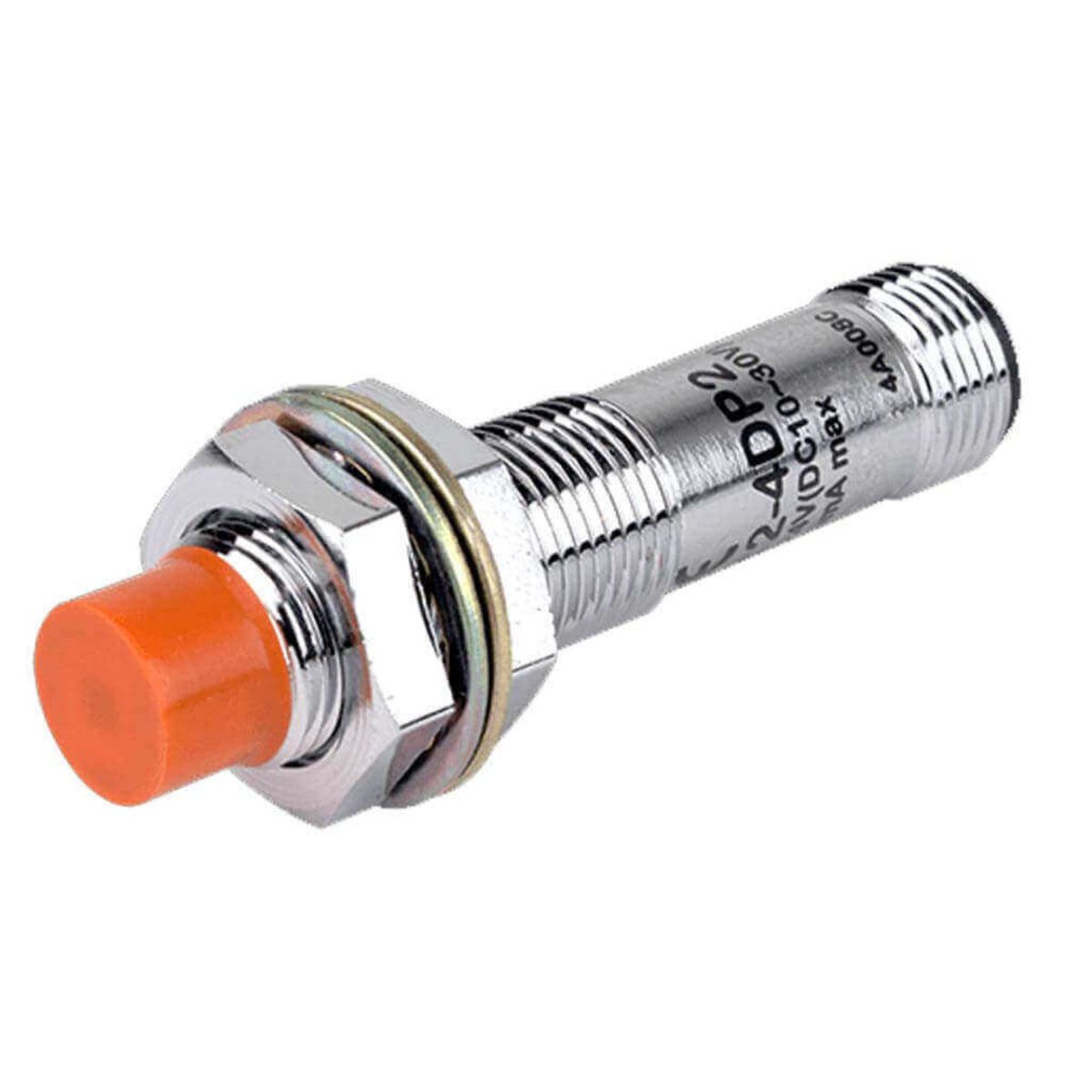

Autonics inductive proximity sensor M12, PNP NO – PRCM12-4DP
Non-shield (non-flush), Standard connector, 4 mm Sensing distance
The Autonics proximity sensor PRCM12-4DP features outstanding noise protection and stable sensing performance due to its specialized sensor IC developed by Autonics. This PNP NO proximity sensor comes in a round cylindrical shape, sensing distance of 4mm, sensing side diameter and housing size of m12 and Non-shield (non-flush) installation. The standard cylindrical inductive sensor can be used in diverse applications requiring non-contact detection of metallic objects.
Are you curious what other types of proximity sensors are available? Get the full report on types of proximity sensors.
As a quick report, this inductive proximity sensor provides:
- 12 mm sensing side diameter
- PNP Normally Open control output
- 4 mm sensing distance
- Non-shield (non-flush) installation
- Improved noise resistance
- Shorts the time of maintenance
- Reverse power polarity, surge, and over-current protection
- IP67 ingress protection structure according to IEC standards
- Red LED status indicator
- Alternative to micro switches and limit switches.
Body
This Autonics PNP NO proximity sensor’s case and nut parts are made of nickel-plated brass, its sensing side is made of PBT, and its washer is nickel plated iron made.
The PRCM12-4DP features IP67 ingress protection.
The red LED on its body acts as the process indicator.
Connection
The PRCM12-4DP features standard cable type connection. This black cable covers the sensor’s 3 wires.
Sensing specifications
This inductive PNP NO proximity sensor’s sensing side diameter is 12 mm. The maximum distance that this sensor can detect its standard sensing target, which is a 12x12x1 mm piece of iron, is 5 mm. This so-called sensing distance differs from one sensing target to another, based on their material, size, etc.
Although almost no one talks about the setting distance of an inductive sensor, it is a big deal to know this concept. Every sensor can detect its standard sensing target in a specified range, no matter what changes occur in ambient temperature, voltage fluctuations, etc. This distance, which is called the setting distance, is from 0 to 2.8 mm for this proximity sensor.
Control output
The PRCM12-4DP features PNP Normally Open control output. PNP stands for Positive-Negative-Positive transistors.
Temperature
There are limitations in temperature and humidity in which PRCM12-4DP proximity sensor is used:
- Storage temperature: -30 to 80¡æ
- Storage humidity: 35 to 95% RH
- Ambient temperature: -25 to 70¡æ
- Ambient humidity: 35 to 95% RH
Environment resistance is rated at no freezing or condensation.
Industries / applications
- Part detection on industrial conveyor systems
- Automated production lines
