Inductive Sensor M12, PNP NO, Flush – PSC0801-P
DESCRIPTION

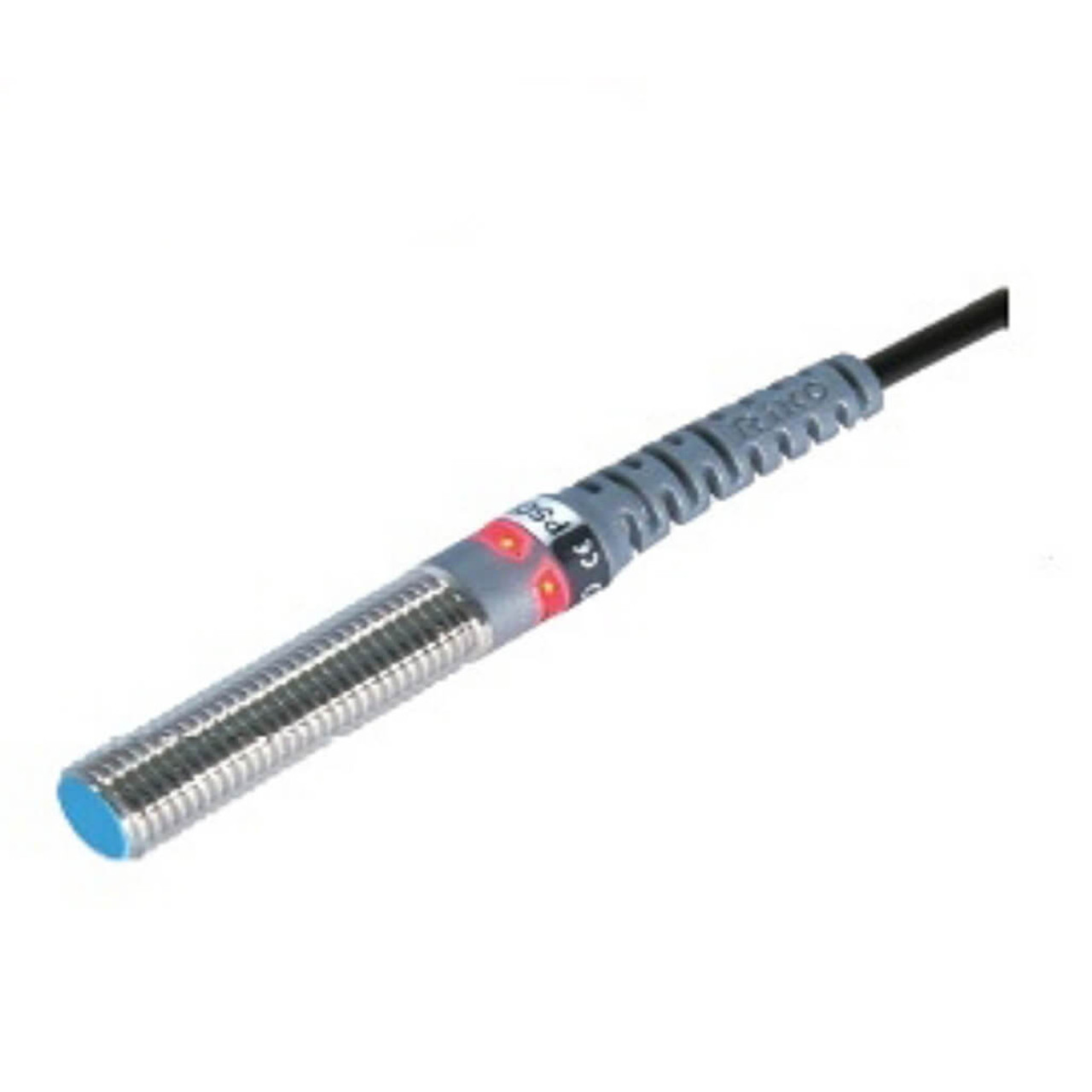

Riko proximity sensor M8, PNP NO PSC0801-P
Shielded (flush), Cable type connection, 1 mm Sensing distance
The Riko proximity sensor PSC0801-P features Special line-out design for bending resistance and tensile. It will upgrade the sensor’s durability and life. This sensor comes in a round tubular shape, sensing distance of 1mm, sensing side diameter and housing size of m8 and Shielded (flush) installation. The standard cylindrical inductive sensor can be used in diverse applications requiring non-contact detection of metallic objects.
As a quick report, this inductive proximity sensor provides:
- 8 mm sensing side diameter
- PNP NO control output
- 1 mm sensing distance
- Shielded (flush) installation
- IP67 ingress protection structure according to IEC standards
- Special line-out design for bending resistance and tensile
- Visible dual LED makes you easy to know the current operating situation.
Body
This Riko proximity sensor features IP67 ingress protection. The sensor’s special line-out design bending resistance and tensile will upgrade the durability and life of it.
Connection
The Riko proximity sensor PSC0801-P features standard cable type connection with Special line-out design for bending resistance and tensile. This black cable covers the sensor’s 3 wires. It is 2 meters in length, and is made of PVC.
Sensing specifications
This inductive sensor’s sensing side diameter is 8 mm. The maximum distance that this sensor can detect its standard sensing target, which is a 8x8x1 mm piece of iron, is 1 mm. This so-called sensing distance differs from one sensing target to another, based on their material, size, etc.
Although almost no one talks about the setting distance of an inductive sensor, it is a big deal to know this concept. Every sensor can detect its standard sensing target in a specified range, no matter what changes occur in ambient temperature, voltage fluctuations, etc. This distance, which is called the setting distance, is from 0 to 0.8 mm for this proximity sensor.
Control output
The PSC0801-P PNP NO control output. PNP stands for Positive-Negative-Positive transistors.
Temperature
There are limitations in PSC0801-P proximity sensor operating temperature. This temperature range is -20 … 60°C.
Industries / applications
- Part detection on industrial conveyor systems
- Automated production lines
