Inductive Sensor M12, PNP NO, Flush – DW-AS-503-M12
DESCRIPTION

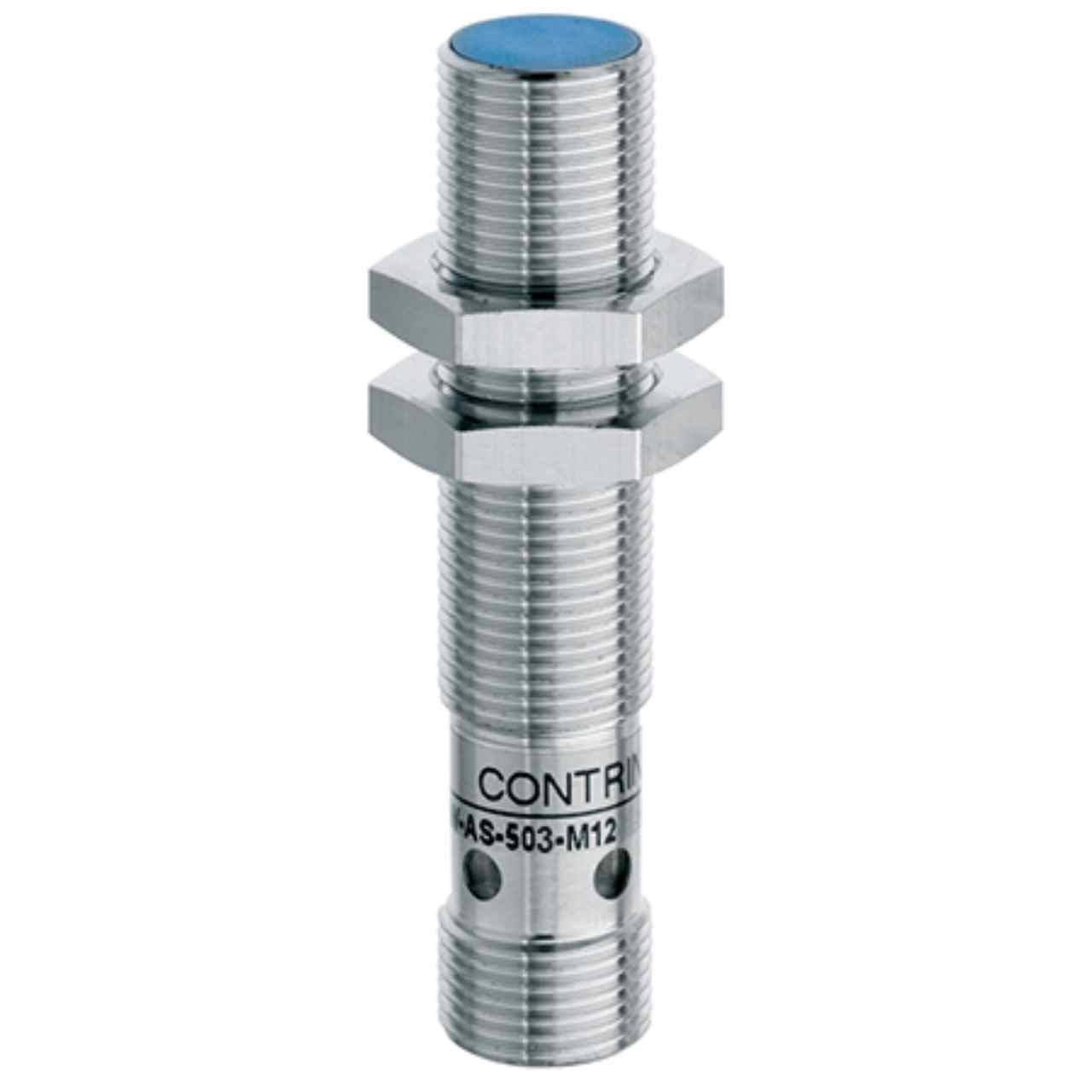

Contrinex proximity sensor M12, PNP NO – DW-AS-503-M12
Quasi-embeddable (flush), M12 4-pin, 6 mm Sensing distance
The Contrinex proximity sensor DW-AS-623-M5 features outstanding noise protection and stable sensing performance due to its specialized sensor IC developed by Contrinex. This sensor comes in a round cylindrical shape, sensing distance of 6mm, sensing side diameter and housing size of M12, and shield (flush) installation. The standard cylindrical inductive sensor can be used in diverse applications requiring non-contact detection of metallic objects.
As a quick report, this inductive proximity sensor provides:
- 12 mm sensing side diameter
- PNP Normally Open control output
- 6 mm sensing distance
- Quasi-embeddable (flush) installation
- Long life cycle and simple operations
- protections short-circuits and voltages reversal
- IP67 ingress protection structure according to IEC standards
- Yellow LED status indicator
Body
This M12 flush prox sensor’s case and nut parts are made of Chrome-plated brass.
The DW-AS-503-M12 features IP67 ingress protection.
The LED on its body acts as the process indicator.
Connection
The M12 flush prox sensor DW-AS-503-M12 features a 4-pin M12 electrical connection.
Sensing specifications
This inductive sensor’s sensing side diameter is 12 mm. This sensor’s maximum distance to detect its standard sensing target is 6 mm. This so-called sensing distance differs from one sensing target to another, based on their material, size, etc. You could find out the sensing distance in Contrinex proximity sensors with a correction factor, mentioned in their datasheet.
Control output
The DW-AS-503-M12 features PNP Normally Open control output. PNP stands for Positive-Negative-Positive transistors.
Industries / applications:
- Tool selection automated production lines
- Robotic position-sensing
- Control of micro-mechanisms
