Inductive Sensor M12, AC 2 wire, Normally Closed – PR12-4AC
DESCRIPTION

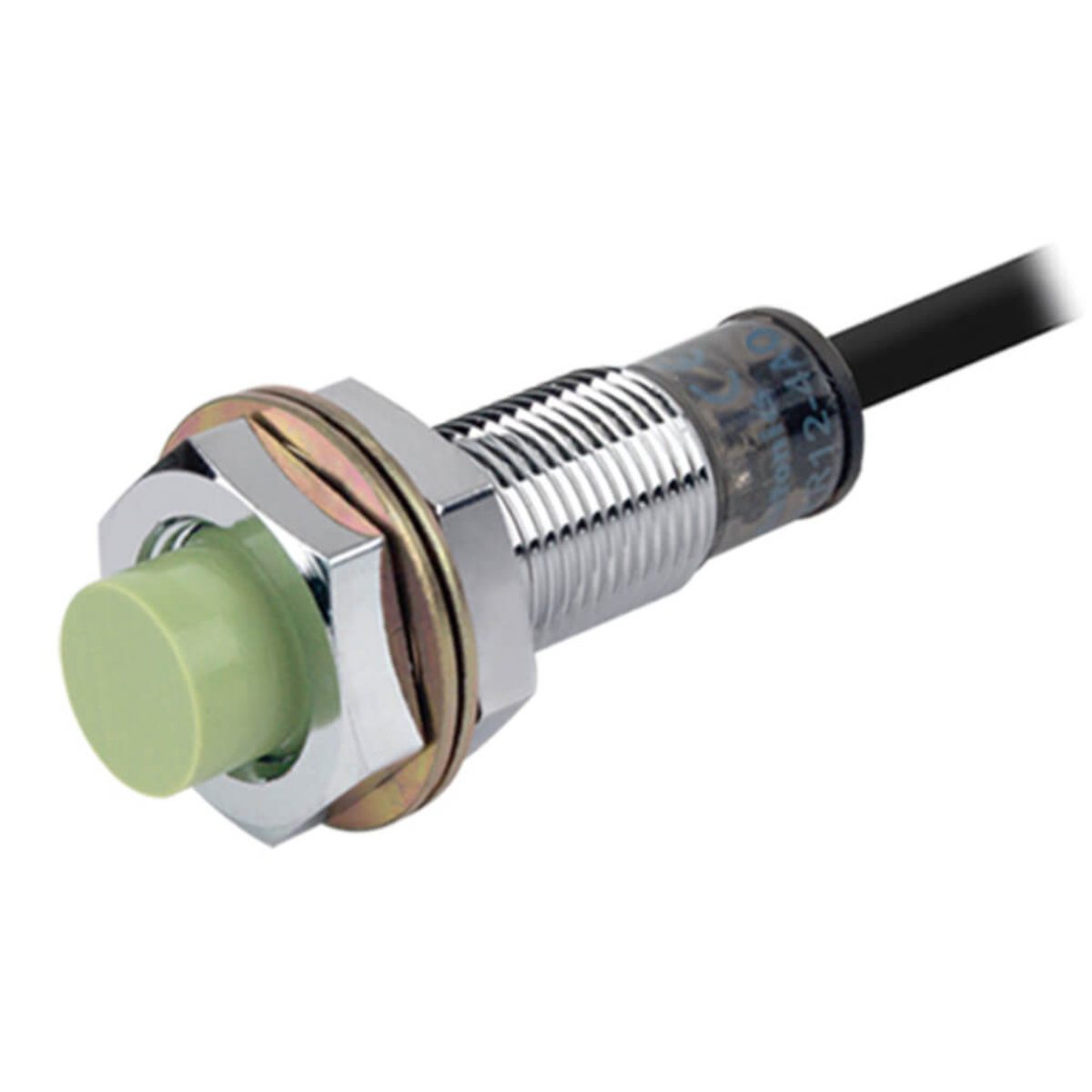

Autonics inductive proximity sensor M12, NC – PR12-4AC
Non-shield (non-flush), Cable type connection, 4 mm Sensing distance
The Autonics proximity switch PR12-4AC features outstanding noise protection and stable sensing performance due to its specialized sensor IC developed by Autonics. This sensor comes in a round cylindrical shape, sensing distance of 4mm, sensing side diameter and housing size of m12 and Non-shield (non-flush) installation. The standard cylindrical inductive sensor can be used in diverse applications requiring non-contact detection of metallic objects.
As a quick report, this inductive proximity sensor provides:
- 12 mm sensing side diameter
- Normally Closed control output
- 4 mm sensing distance
- Non-shield (non-flush) installation
- Long life cycle and reliable simple operations
- Reverse polarity, surge, and over-current protection
- IP67 ingress protection structure according to IEC standards
- Red LED status indicator
- Alternative to micro switches and limit switches.
Body
This Autonics proximity sensor’s case and nut parts are made of nickel-plated brass.
The PR12-4AC features IP67 ingress protection.
The red LED on its body acts as the process indicator.
Connection
The Autonics proximity switch PR12-4AC features standard cable type connection. This black cable covers the sensor’s 2 wires. It is 4 mm in diameter and 2 meters in length.
Sensing specifications
This inductive sensor’s sensing side diameter is 12 mm. The maximum distance that this Autonics PR Series sensor can detect its standard sensing target, which is an 12x12x1 mm piece of iron, is 4 mm. This so-called sensing distance differs from one sensing target to another, based on their material, size, etc.
Although almost no one talks about the setting distance of an inductive sensor, it is a big deal to know this concept. Every sensor can detect its standard sensing target in a specified range, no matter what changes occur in ambient temperature, voltage fluctuations, etc. This distance, which is called the setting distance, is from 0 to 2.8 mm for this proximity sensor.
Control output
The PR12-4AC features Normally Closed control output.
Temperature
There are limitations in temperature and humidity in which PR12-4AC proximity switch is used:
- Storage temperature: -30 … 80°C
- Storage humidity: 35 to 95%RH
- Ambient temperature: -25 … 70°C
- Ambient humidity: 35 to 95%RH
Environment resistance is rated at no freezing or condensation.
Industries / applications
- Part detection on industrial conveyor systems
- Automated production lines
