Inductive Sensor M12, AC 2 wire, Normally Closed, Flush – PR12-2AC
DESCRIPTION

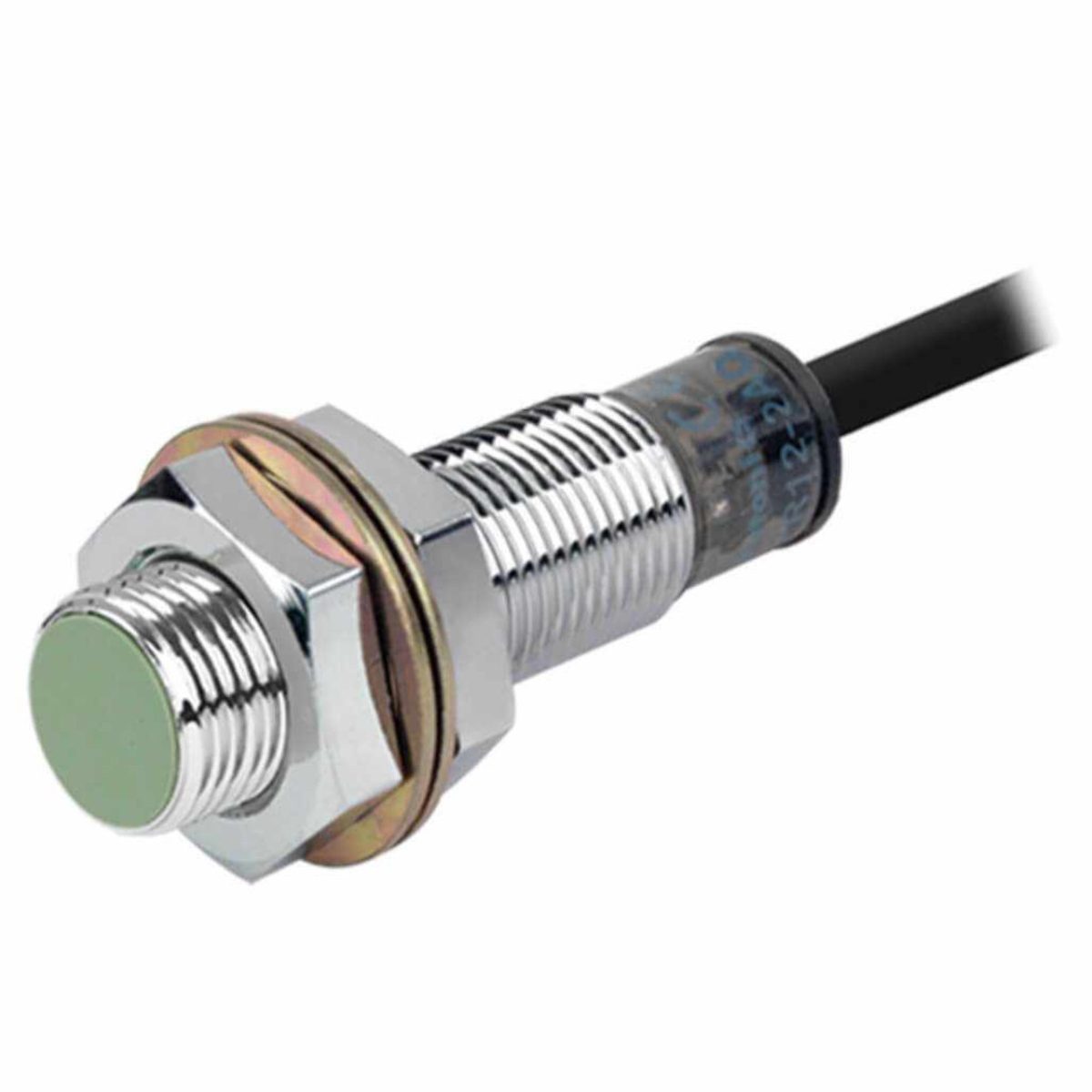

Autonics proximity sensor M12, NC PR12-2AC
Shield (flush), Cable type connection, 2 mm Sensing distance
The Autonics proximity sensor PR12-2AC features outstanding noise protection and stable sensing performance due to its specialized sensor IC developed by Autonics. This sensor comes in a round cylindrical shape, sensing distance of 2mm, sensing side diameter and housing size of m12 and Shield (flush) installation. The standard cylindrical inductive sensor can be used in diverse applications requiring non-contact detection of metallic objects.
As a quick report, this inductive proximity sensor provides:
- 12 mm sensing side diameter
- Normally Closed control output
- 2 mm sensing distance
- Shield (flush) installation
- Long life cycle and reliable simple operations
- Reverse polarity, surge, and over-current protection
- IP67 ingress protection structure according to IEC standards
- Red LED status indicator
- Alternative to micro switches and limit switches.
Body
This Autonics PR Series sensor’s case and nut parts are made of nickel-plated brass. The PR12-2AC features IP67 ingress protection.
The red LED on its body acts as the process indicator.
Connection
The Autonics Normally Closed proximity sensor PR12-2AC features standard cable type connection. This cable covers the sensor’s 2 wires. It is 4 mm in diameter and 2 meters in length.
Sensing specifications
This inductive sensor’s sensing side diameter is 12 mm. The maximum distance that this sensor can detect its standard sensing target, which is a 12x12x1 mm piece of iron, is 2 mm. This so-called sensing distance differs from one sensing target to another, based on their material, size, etc.
Although almost no one talks about the setting distance of an inductive sensor, it is a big deal to know this concept. Every sensor can detect its standard sensing target in a specified range, no matter what changes occur in ambient temperature, voltage fluctuations, etc. This distance, which is called the setting distance, is from 0 to 1.4 mm for this proximity sensor.
Control output
The PR12-2AC features Normally Closed control output.
Temperature
There are limitations in temperature and humidity in which PR12-2AC Normally Closed proximity sensor is used:
- Storage temperature: -30 … 80°C
- Storage humidity: 35 to 95%RH
- Ambient temperature: -25 … 70°C
- Ambient humidity: 35 to 95%RH
Environment resistance is rated at no freezing or condensation.
Industries / applications
- Part detection on industrial conveyor systems
- Automated production lines
