Inductive Sensor M12, 2 wire, Normally Closed, Flush – DW-AD-608-M12
DESCRIPTION

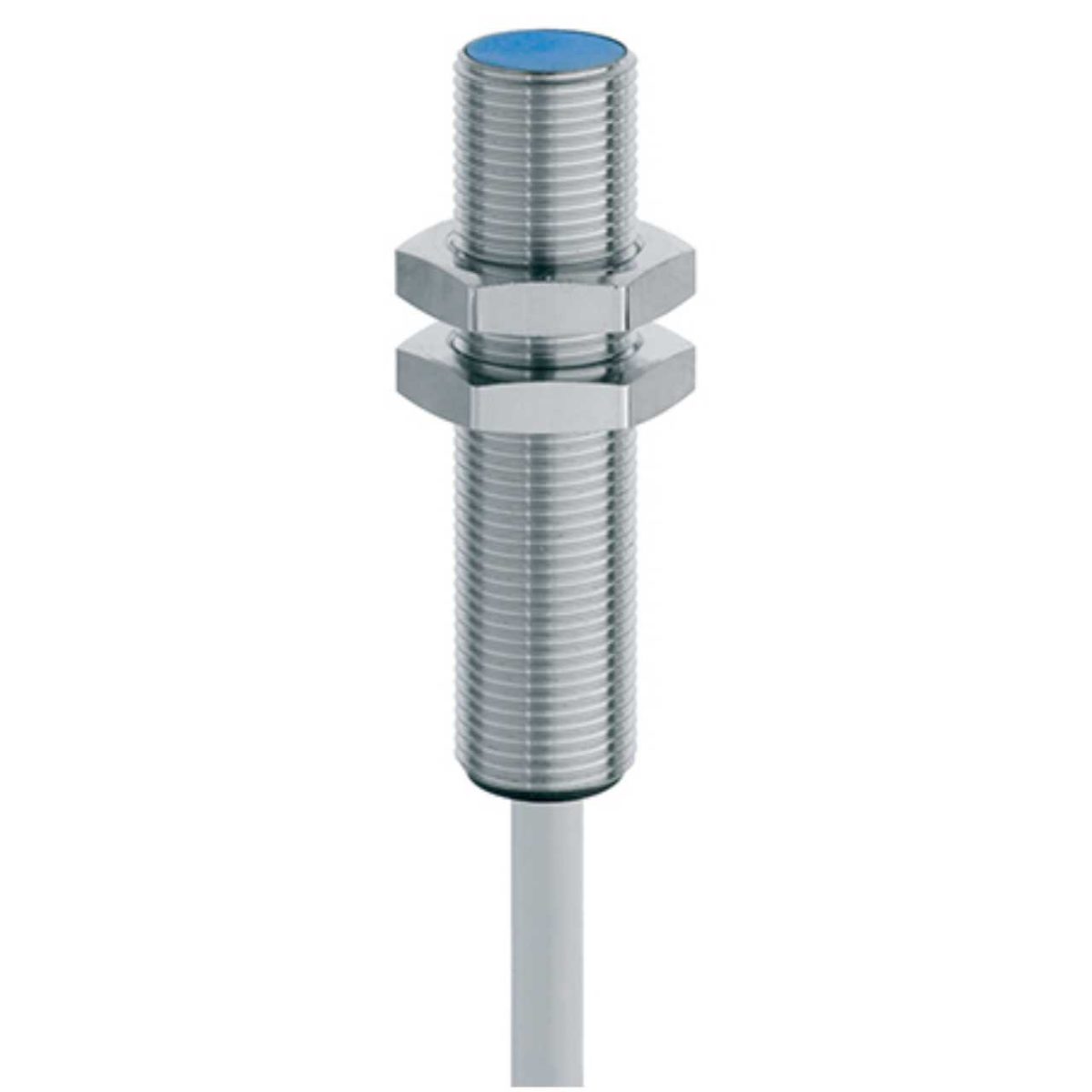

Contrinex proximity sensor M12, 2-wire NC, DW-AD-608-M12
Embeddable (flush), Cable type connection, 2 mm sensing distance
The Contrinex proximity sensor DW-AD-608-M12 features outstanding noise protection and stable sensing performance due to its specialized sensor IC developed by Contrinex. This NC pickup sensor comes in a round cylindrical shape, sensing distance of 2mm, sensing side diameter and housing size of M12, and shield (flush) installation. The standard cylindrical inductive sensor can be used in diverse applications requiring non-contact detection of metallic objects.
As a quick report, this inductive proximity sensor provides:
- 12 mm sensing side diameter
- 2-wire Normally Closed control output
- 2 mm sensing distance
- Embeddable (flush) installation
- Long life cycle and simple operations
- protections Induction built-in
- IP67 ingress protection structure according to IEC standards
- Yellow LED status indicator
Body
This Contrinex proximity sensor’s case and nut parts are made of Chrome-plated brass and its sensing side is made of PBTP (Crastin).
The DW-AD-608-M12 features IP67 ingress protection.
The LED on its body acts as the process indicator.
Connection
The Contrinex proximity sensor DW-AD-608-M12 features standard cable type connection. This cable covers the sensor’s 2 wires. It is 2 meters in length, and is made of PVC.
Sensing specifications
This inductive sensor’s sensing side diameter is 12 mm. This sensor’s maximum distance to detect its standard sensing target, which is a 12x12x1 mm piece of iron, is 2 mm. This so-called sensing distance differs from one sensing target to another, based on their material, size, etc. You could find out the sensing distance in Contrinex proximity sensors with a correction factor, mentioned in their datasheet.
This NC pickup sensor also features 0.5 mm repeat accuracy.
Control output
The DW-AD-608-M12 features 2-wire Normally Closed control output.
Temperature
The ambient temperature range that the DW-AD-608-M12 NC pickup sensor works properly in is -25 … 70°C.
Industries / applications:
- Tool selection automated production lines
- Robotic position-sensing
- Control of micro-mechanisms
