Incremental Encoder 80 mm, 30 mm Hollow Shaft – E80H30-1024-3-T-24

Autonics 80 mm Diameter Incremental Rotary Encoder – E80H30-1024-3-T-24

Radial cable type, Ø30mm Shaft inner diameter, Totem pole

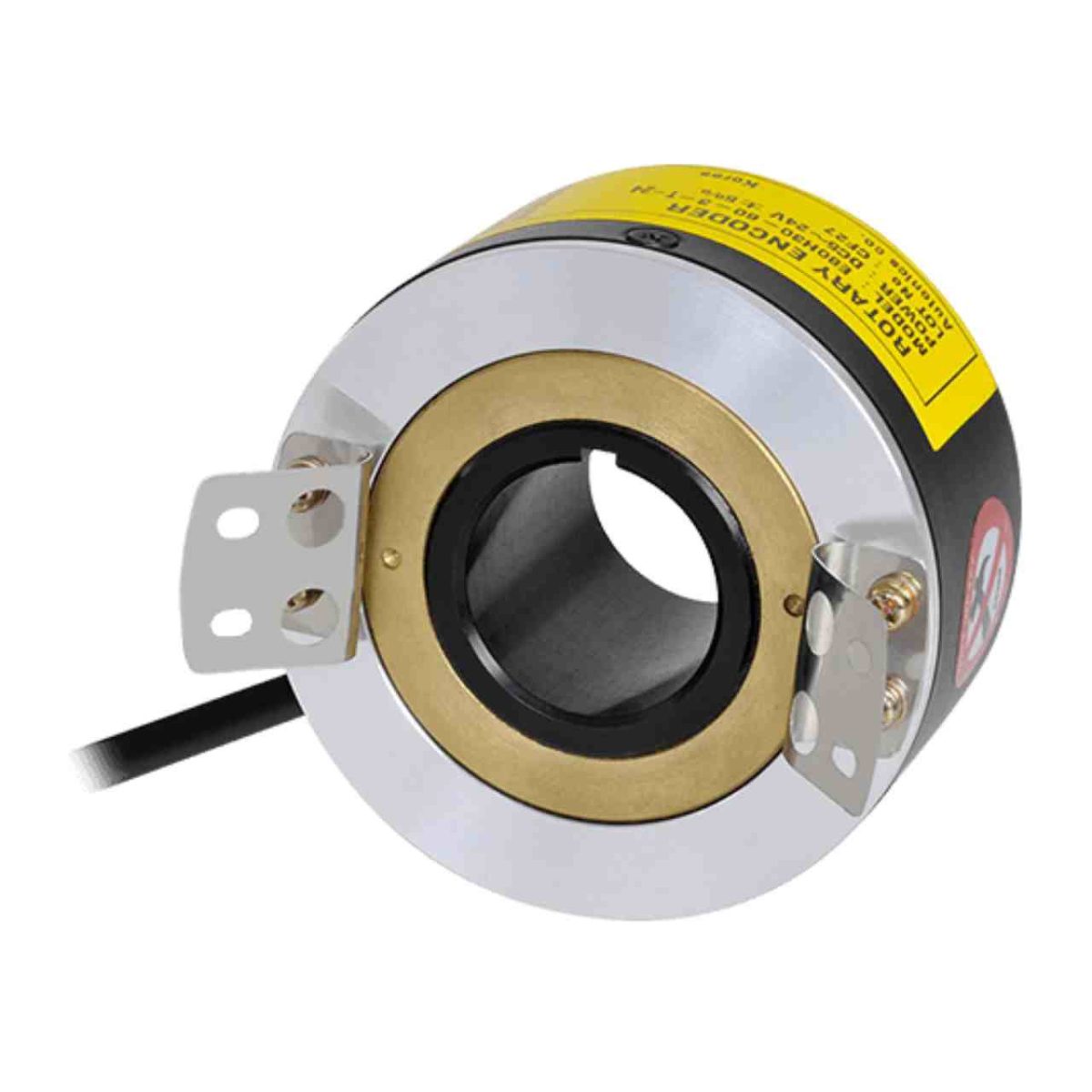

The Autonics shaft rotary encoder E80H30-1024-3-T-24 has a 80 mm diameter body and it helps to install it in application with space limitations. The starting torque is 200gf.cm. The control output for this encoder is totem pole and the output phases are A, B, Z. The maximum allowable revolution for this item is 3600 rpm. Maximum response frequency is 200 kHz. The resolution of 1024 P/R gives a great output result for this product. The radial cable type connection in this encoder makes it possible for operators to install it for most standard applications.

As a quick report, this incremental encoder provides:

• Ø30 mm Shaft inner diameter

• Max. 200gf.cm (max. 0.0196N.m) Starting torque

• 1024 P/R Resolution

• Ø 80mm housing incremental rotary encoders

• Hollow shaft

• Totem pole control output

• Power supply: 12-24VDC ±5% (ripple P-P: max. 5%)

• Radial cable type connection

• IP50 (IEC standard)

Connection

The Autonics incremental encoder E80H30-1024-3-T-24 features Radial cable type connection.

Control output

The E80H30-1024-3-T-24 features Totem pole control output and it’s output phase is A, B, Z.

Temperature

There are limitations in temperature and humidity in which E80H30-1024-3-T-24 encoder is used:

• Storage temperature: -25 … 85°C

• Storage humidity: 35 to 90%RH

• Ambient temperature: -10 … 70°C

• Ambient humidity: 35 to 85%RH

Environment resistance is rated at no freezing or condensation.

Click on the following link to view other Autonics Rotary Encoders products.
