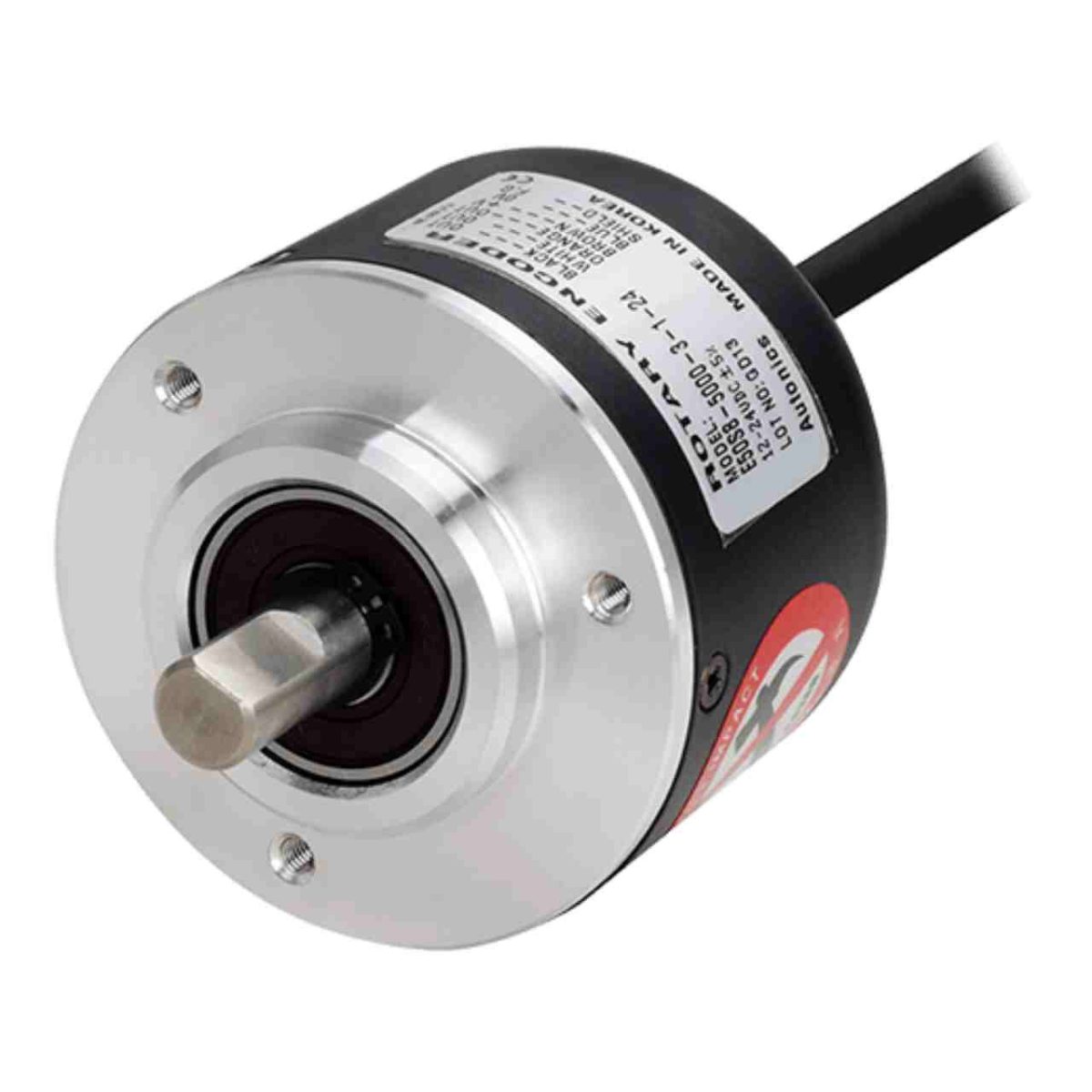

Autonics incremental encoder E50S8-250-3-T-24
Axial cable type, Ø8mm Shaft outer diameter, Totem pole
The Autonics shaft rotary encoder E50S8-250-3-T-24 has a 50 mm diameter body and it helps to install it in application with space limitations. The starting torque is 70gf.cm. The control output for this encoder is Totem pole and the output phases are A, B, Z. The maximum allowable revolution for this item is 5000 rpm. Maximum response frequency is 300 kHz. The resolution of 250 P/R gives a great output result for this product. The axial cable type connection in this encoder makes it possible for operators to install it for most standard applications.
As a quick report, this incremental encoder provides:
- Ø8 mm Shaft outer diameter
- Max. 70gf.cm (max. 0.00686N.m) Starting torque
- 250P/R Resolution
- Ø 50 mm housing, Ø 8 mm solid shaft
- Accurate measurement of angle, position, revolution, speed, acceleration, and distance
- Axial cable type
- 5000rpm Max. allowable revolution
- Totem pole control output options
- Power supply: 12-24 VDC ±5% (ripple P-P: max. 5%)
- IP50 Protection structure
Connection
The Autonics incremental encoder E50S8-250-3-T-24 features Axial cable type connection. This 5-wire cable is 5 mm in diameter and 2 meters in length.
Control output
The E50S8-250-3-T-24 features Totem pole control output and it’s output phase is A, B, Z.
Temperature
There are limitations in temperature and humidity in which E50S8-250-3-T-24 encoder is used:
- Storage temperature: -25 … 85°C
- Storage humidity: 35 to 90%RH
- Ambient temperature: -10 … 70°C
- Ambient humidity: 35 to 85%RH
Environment resistance is rated at no freezing or condensation.
Industries / applications
- Milling Machines
- Elevator Door Operation
- Position Control of Hoists
Click on the following link to view other Autonics Rotary Encoders products.
