Incremental Encoder 40 mm, 8 mm Hollow Shaft – E40H8-500-3-T-24
DESCRIPTION

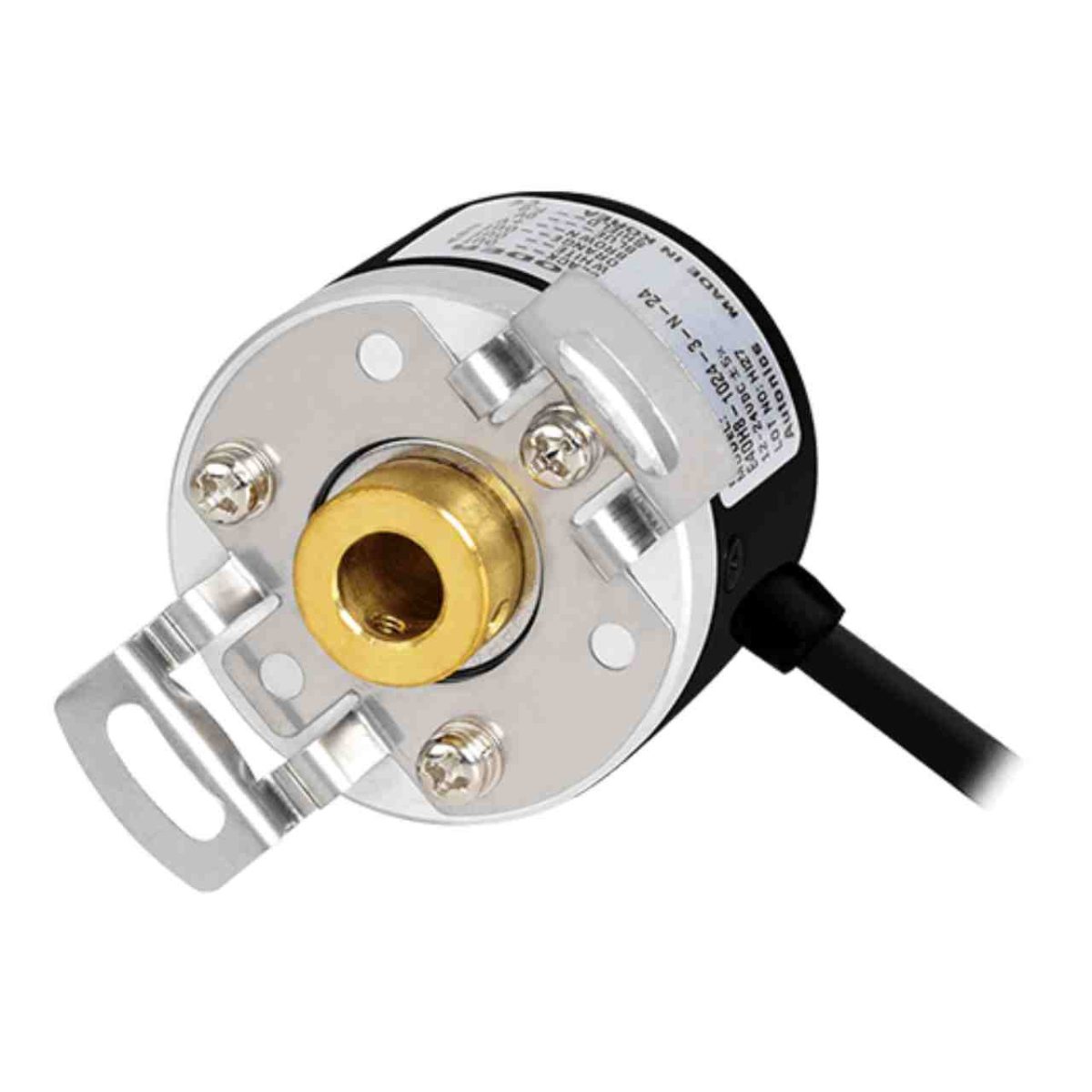

Autonics Incremental Rotary Encoder – E40H8-500-3-T-24
Radial cable type, Ø8mm Shaft outer diameter, Hollow shaft type
The Autonics shaft rotary encoder E40H8-500-3-T-24 has a 40 mm diameter body and it helps to install it in application with space limitations. The starting torque is 50gf.cm. The low shaft moment of inertia in this product lowers the effect of rotation from the applications. The control output for this encoder is totem pole and the output phases are A, B, Z. The maximum allowable revolution for this item is 5000 rpm. Maximum response frequency is 300 kHz. The resolution of 500 P/R gives a great output result for this product. The radial cable type connection in this encoder makes it possible for operators to install it for most standard applications.
As a quick report, this incremental encoder provides:
- Ø8 mm Shaft outer diameter
- Max. 50gf.cm (max. 0.0049N.m) Starting torque
- 500 P/R Resolution
- Ø 40 mm housing incremental rotary encoders
- Hollow shaft
- Easy installation in tight or limited spaces
- Low shaft moment of inertia
- Totem pole control output
- Power supply: 12-24 VDC ±5% (ripple P-P: max. 5%)
- ≤ 1 µs Response speed
- Current consumption: Totempole, NPN open collector, Voltage output: ≤ 80 mA (no load)
Connection
The Autonics incremental encoder E40H8-500-3-T-24 features Radial cable type connection which contains a cable covering its 5 wires. This cable is 5 mm in diameter.
Control output
The E40H8-500-3-T-24 features totem pole control output and it’s output phase is A, B, Z.
Temperature
There are limitations in temperature and humidity in which E40H8-500-3-T-24 encoder is used:
- Storage temperature: -25 … 85°C
- Storage humidity: 35 to 90%RH
- Ambient temperature: -10 … 70°C
- Ambient humidity: 35 to 85%RH
Environment resistance is rated at no freezing or condensation.
Industries / applications
- Elevator Door Operation
