Incremental Encoder 40 mm, 6 mm Shaft – E40S6-2000-3-T-24

Autonics incremental encoder E40S6-2000-3-T-24

Radial cable type, Ø6mm Shaft outer diameter, Totem pole

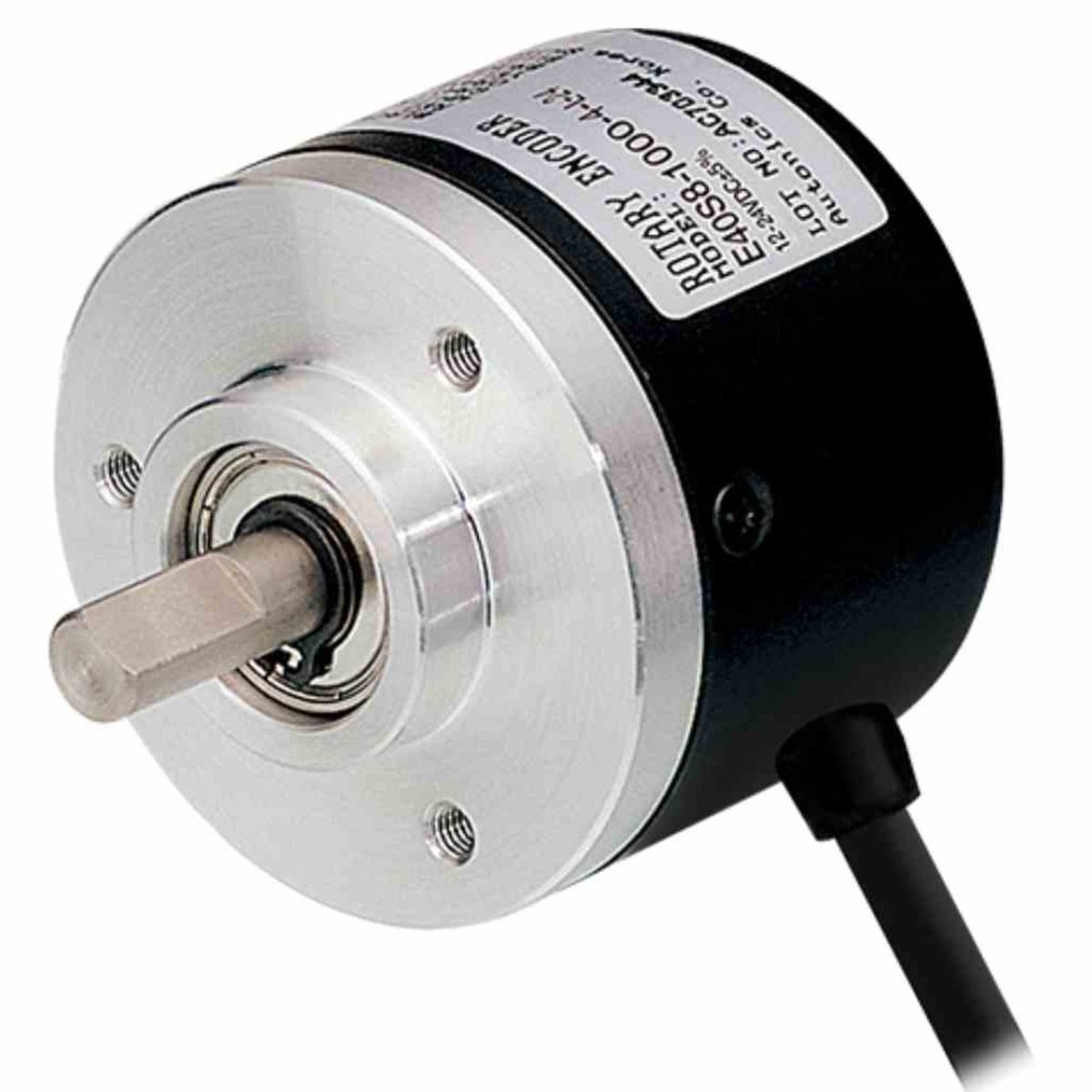

The Autonics shaft rotary encoder E40S6-2000-3-T-24 has a 40 mm diameter body and it helps to install it in application with space limitations. The starting torque is 40gf.cm. The low shaft moment of inertia in this product lowers the effect of rotation from the applications. The control output for this encoder is totem pole and the output phases are A, B, Z. The maximum allowable revolution for this item is 5000 rpm. Maximum response frequency is 300 kHz. The resolution of 2000 P/R gives a great output result for this product. The radial cable type connection in this encoder makes it possible for operators to install it for most standard applications.

As a quick report, this incremental encoder provides:

• Ø6 mm Shaft outer diameter

• Max. 40gf.cm (max. 0.00392N.m) Starting torque

• 2000 P/R Resolution

• Ø 40 mm housing incremental rotary encoders

• Shaft type

• Easy installation in tight or limited spaces

• Low shaft moment of inertia

• Totem pole control output

• Power supply: 12-24 VDC ±5% (ripple P-P: max. 5%)

Connection

The Autonics incremental encoder E40S6-2000-3-T-24 features Radial cable type connection. This cable is 5 mm in diameter and 2 meters in length.

Control output

The E40S6-2000-3-T-24 features Totem pole control output and it’s output phase is A, B, Z.

Temperature

There are limitations in temperature and humidity in which E40S6-2000-3-T-24 encoder is used:

• Storage temperature: -25 … 85°C

• Storage humidity: 35 to 90%RH

• Ambient temperature: -10 … 70°C

• Ambient humidity: 35 to 85%RH

Environment resistance is rated at no freezing or condensation.

Industries / applications

• Rubber Extrusion / Plastic Injection Molding Process

• Milling Machines

• Position Control of Hoists

• Elevator Door Operation

Click on the following link to view other Autonics Rotary Encoders products.
