Incremental Encoder 30 mm, 4 mm Shaft – E30S4-100-3-T-24

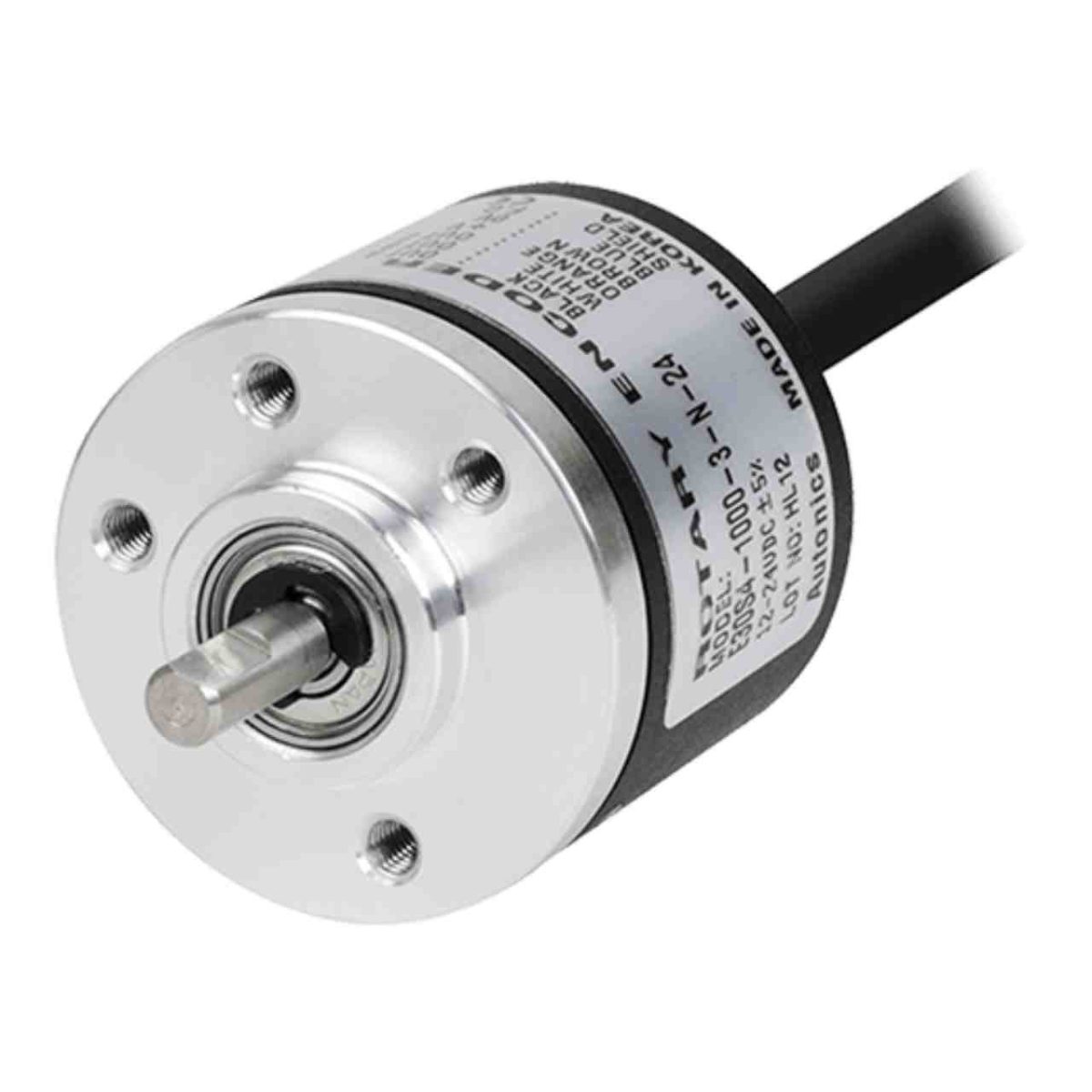

Autonics Incremental Rotary Encoder – E30S4-100-3-T-24

Axial cable type, Ø4mm Shaft outer diameter, Totem pole Output

The Autonics shaft rotary encoder E30S4-100-3-T-24 has a 30 mm diameter body and it helps to install it in application with space limitations. The starting torque is 40gf.cm. The low shaft moment of inertia in this product lowers the effect of rotation from the applications. The control output for this encoder is totem pole and the output phases are A, B, Z. The maximum allowable revolution for this item is 5000 rpm. Maximum response frequency is 300 kHz. The resolution of 100 P/R gives a great output result for this product. The radial cable type connection in this encoder makes it possible for operators to install it for most standard applications.

As a quick report, this incremental encoder provides:

• Ø4 mm Shaft outer diameter

• ≤ 0.002 N m Starting torque

• 100 P/R Resolution

• Ø30 mm housing

• Easy installation in tight or limited spaces

• Low shaft moment of inertia

• Power supply: 12-24 VDC ±5% (ripple P-P: max. 5%)

• Axial cable type

• IP50 Protection structure

• ≤ 30 mA Inflow current

• ≤ 0.4 VDC Residual voltage

• ≤ 10 mA Outflow current

• ≤ 1 µs Response speed

Connection

The Autonics incremental encoder E30S4-100-3-T-24 features Axial cable type connection. This cable is 5-wires and 5 mm in diameter and 2 meters in length.

Control output

The E30S4-100-3-T-24 features Totem pole control output and it’s output phase is A, B, Z.

Temperature

There are limitations in temperature and humidity in which E30S4-100-3-T-24 encoder is used:

• Storage temperature: -25 … 85°C

• Storage humidity: 35 to 90%RH

• Ambient temperature: -10 … 70°C

• Ambient humidity: 35 to 85%RH

Environment resistance is rated at no freezing or condensation.
