Hydrostatic Level Transmitter 600 mbar, 4 – 20 mA, 2 m Cable

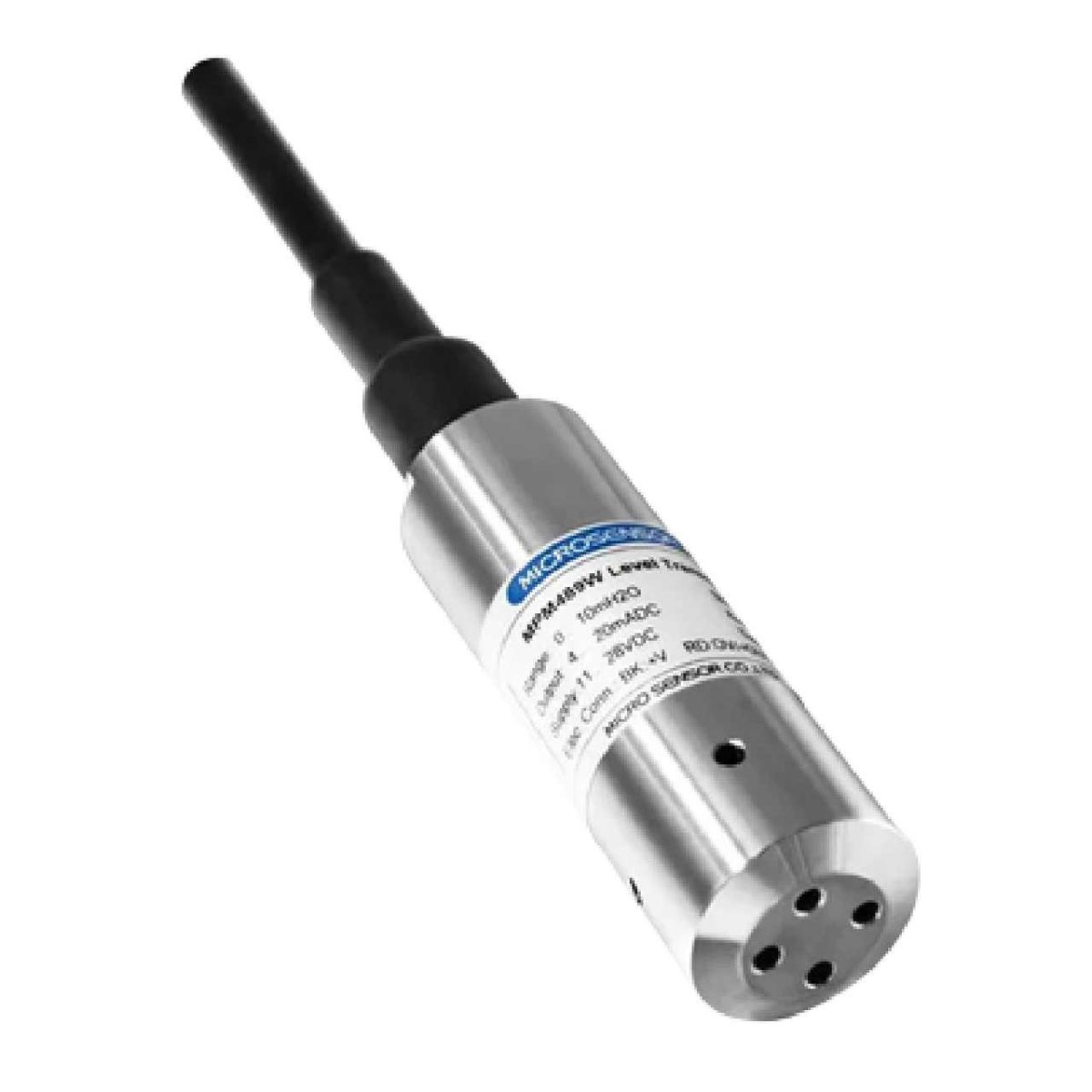

Microsensor Submersible Level Transmitter – MPM489W-[0-6mH2O]2-V1-E-22

Cable type connection, 2-wire, Gauge pressure sensor

For general industrial applications, the fully sealed submersible level transmitter MPM489W was developed. This level transmitter has a dedicated circuit and a piezoresistive sensing element that are contained in a high-strength stainless steel enclosure and have exceptional stability and dependability.
The Microsensor product is the perfect choice for field service and automation control because it has an integrated structure and standard outputs.
The sensor may be used for a prolonged period of time in liquids that are compatible with the material thanks to the tightly sealed connection between the cable and housing.

Take a look at Microsensor Company  page: One Of The Top Sensing Solutions Provider!

As a quick report, this submersible level transmitter provides:

• Integrated structure, no extra adjustment required

• CE, RoHS and CCS approved

• 2 times FS Overpressure

• 10g, 55Hz ~ 2000Hz Vibration

• 100g, 11ms Shock

• IP68 ingress protection

• 11V~28V DC Power supply

• 4mA~20mA DC Output signal

• SS 316L Isolated diaphragm material

• SS 304 Housing material

• Zero Thermal drift: ≤ ±0.05% FS/°C

• Span Thermal drift: ≤ ±0.05£¥ FS/°C

• 2-wire Output format

• ≤(U-11)/0.02 (Ω) Load Resistance

Body

This Microsensor level transmitter’s isolated diaphragm is made of SS 316L and its housing is made of SS 304.

The MPM489W-[0-6mH2O]2-V1-E-22 features IP68 ingress protection.

Connection

The Microsensor submersible level transmitter MPM489W-[0-6mH2O]2-V1-E-22 features standard cable type connection. This cable covers the sensor’s 2 wires. It is 2 meters in length, and is made of PE.

Industries / applications

• Level measurement of sewage

• Level measurement of sea water

• Level measurement of underground water

• Level measurement of chemical plant wasted water

• Water or liquid measure and control of medicine

• Metallurgy

• Electricity

• Mine

• City water supply

• Drainage

• Hydrology

Temperature

There are limitations in temperature and humidity in which MPM489W-[0-6mH2O]2-V1-E-22 submersible level transmitter is used:

• Application temperature: -20°C ~ 70°C

• Storage temperature: -20°C ~ 85°C
