High Pressure Proximity Sensor M14, PNP NO, Flush – DW-AD-503-P20
DESCRIPTION

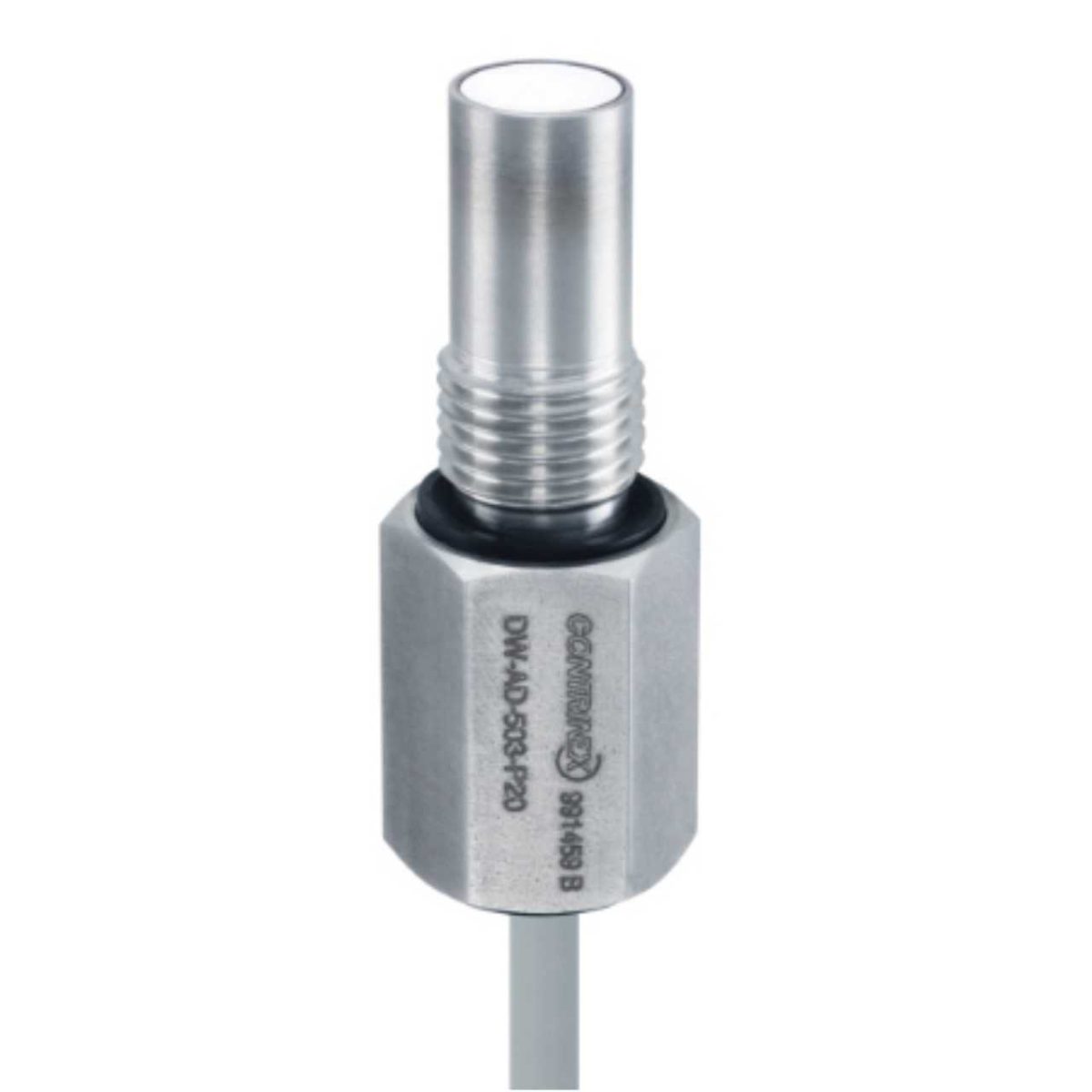

Contrinex High Pressure proximity sensor M14, PNP NO DW-AD-503-P20
Embeddable (flush), Cable type connection, 3 mm Sensing distance
The Contrinex high pressure proximity sensor DW-AD-503-P20 features outstanding noise protection and stable sensing performance due to its specialized sensor IC developed by Contrinex. This sensor comes in a round cylindrical shape, sensing distance of 3mm, sensing side diameter and housing size of M14, and shield (flush) installation. The standard cylindrical inductive sensor can be used in diverse applications requiring non-contact detection of metallic objects.
As a quick report, this inductive high pressure proximity sensor provides:
- 14 mm sensing side diameter
- PNP Normally Open control output
- 3 mm sensing distance
- Embeddable (flush) installation
- Long life cycle and simple operations
- protections against short-circuits and induced overvoltages
- IP68 ingress protection structure according to IEC standards
Body
This Contrinex high pressure proximity sensor’s case and nut parts are made of Stainless-steel V4A.
The DW-AD-503-P20 features IP68 ingress protection.
Connection
The Contrinex M14 proximity sensor DW-AD-503-P20 features standard cable type connection. This cable covers the sensor’s 3 wires. It is 2 meters in length, and is made of PUR.
Sensing specifications
This inductive sensor’s sensing side diameter is 14 mm. This sensor’s maximum distance to detect its standard sensing target is 3 mm. This so-called sensing distance differs from one sensing target to another, based on their material, size, etc. You could find out the sensing distance in Contrinex proximity sensors with a correction factor, mentioned in their datasheet.
Control output
The DW-AD-503-P20 features PNP Normally Open control output. PNP stands for Positive-Negative-Positive transistors.
Temperature
The ambient temperature range that the DW-AD-503-P20 M14 proximity sensor works properly in is -25 … 70°C and 70 … 100°C.
Industries/applications:
- Tool selection automated production lines
- Robotic position-sensing
- Control of micro-mechanisms
