Handle Type Incremental Encoder 100P/R Resolution, Line Driver Output – ENH-100-2-L-5

Autonics Manual Handle Type Pulse Generator – ENH-100-2-L-5

Normal “L” Click stopper position, Line drive Output, Terminal block type Connection

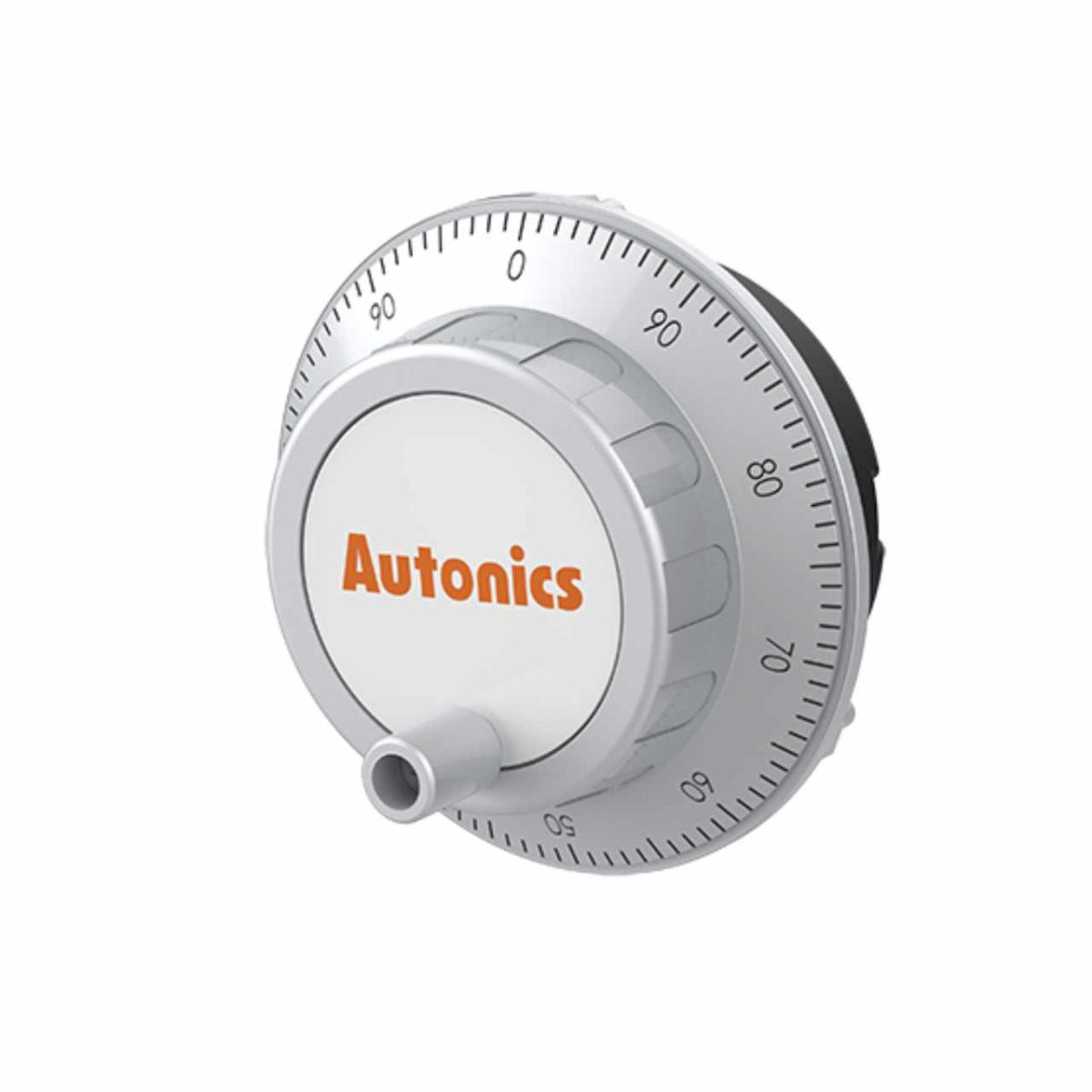

The Autonics manual handle type pulse generator ENH-100-2-L-5 is a rotary encoder that has a response frequency of 10kHz and can handle a maximum allowable revolution of 200rpm (normal) and 600rpm (peak). The starting torque is 1kgf.cm (0.098N.m). The resolution of this encoder is 100P/R, with output phase A, A ?, B and B ?. It also has click stopper position in normal “L” and control output in totem pole.

As a quick report, this manual handle type pulse generator provides:

• 100 P/R Resolution

• A, A ?, B, B ? Output phase


• ≤ 0.2 µs Response speed

• 10 KHz Max. response freq.

• ≤ 0.098 N m Starting torque

• Max. allowable revolution: 200rpm(Normal), 600rpm(Peak)

• Click stopper position: Normal “L”

• Line drive control output

• Power supply: 5VDC ±5% (ripple P-P: max. 5%)

• IP50 (IEC standard)

Connection

The Autonics incremental encoder ENH-100-2-L-5 features terminal block type connection.

Control output

The ENH-100-2-L-5 features Line drive control output and it’s output phase is A, A ?, B, B ?.

Temperature

There are limitations in temperature and humidity in which ENH-100-2-L-5 encoder is used:

• Storage temperature: -25 … 85°C

• Storage humidity: 35 to 90%RH

• Ambient temperature: -10 … 70°C

• Ambient humidity: 35 to 85%RH

Environment resistance is rated at no freezing or condensation.
