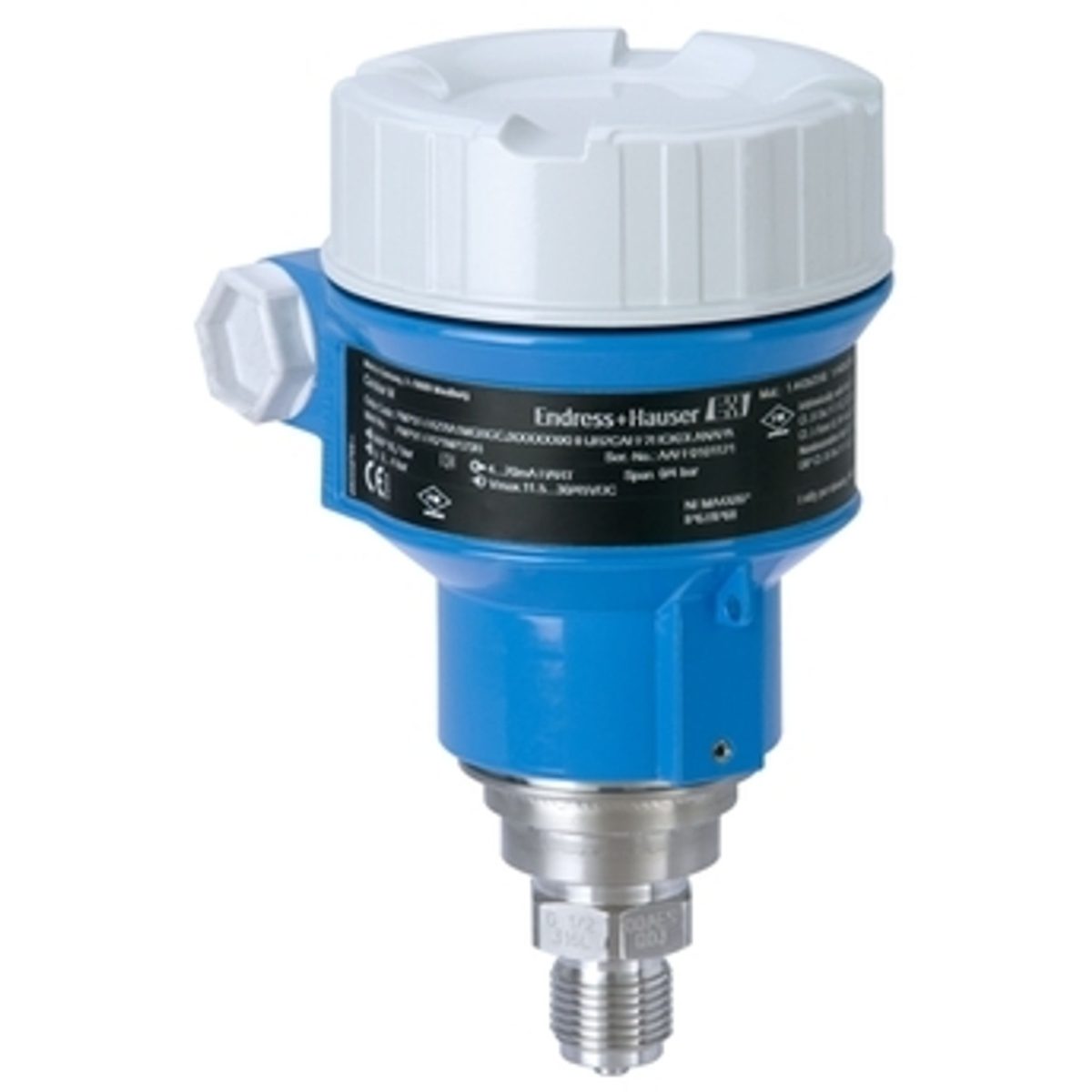

Gauge pressure Cerabar PMC11
DESCRIPTION
Application
The Cerabar PMC11 stands out as the most cost-effective compact pressure transmitter in its category. Equipped with a capacitive, oil-free ceramic sensor, it is capable of measuring gauge pressures ranging from 400 mbar to 40 bar. This model is specifically designed for standard applications in the process industry, enduring harsh conditions thanks to its construction with premium materials such as 316L stainless steel and 99.9% Al2O3.
This pressure transducer, featuring an oil-free ceramic sensor, is ideal for measuring gauge pressure in both gases and liquids.
Process Connections: Threaded
Process Temperature Range: -25°C to +85°C (-13°F to +185°F)
Pressure Range: 400 mbar to 40 bar (6 to 600 psi)
Accuracy: ±0.5% of span
Benefits
The Cerabar PMC11 ensures easy and efficient installation and setup within the plant due to its compact design and customizable measurement ranges.
With a reference accuracy of 0.5% along with exceptional long-term stability and repeatability, it guarantees high-quality process monitoring for standard applications.
The capacitive oil-free measuring cell, featuring high abrasion resistance and undergoing 100% test coverage during production, ensures prolonged process availability.
