Fork Sensor 30 mm Sensing Distance, NPN Open Collector Output – BUP-30S
DESCRIPTION

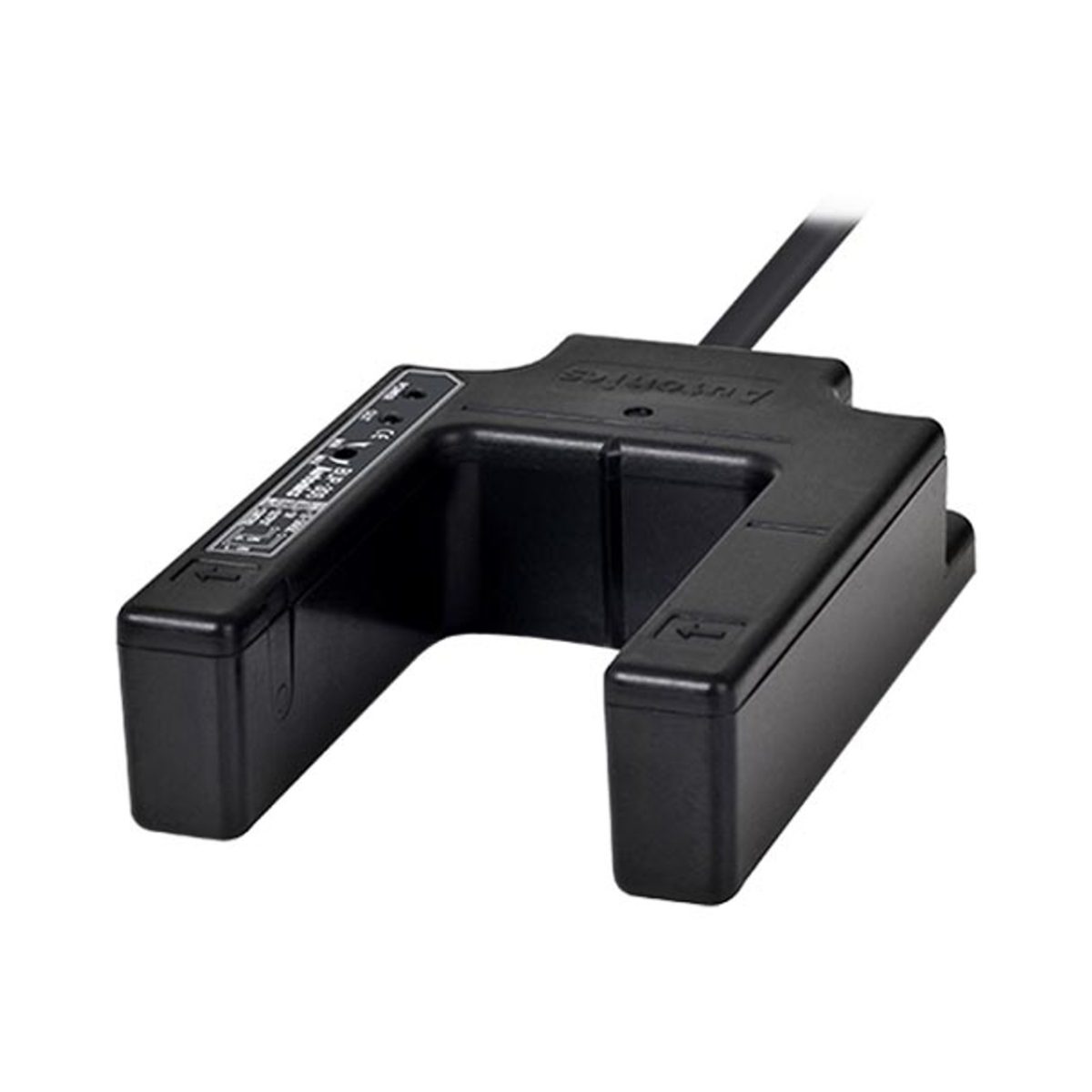

Autonics 1-channel U-shaped Photoelectric Sensor, BUP-30S
NPN Open collector, Cable type connection, Sensitivity adjustable
The Autonics photoelectric sensor BUP-30S is Through-beam sensing type, comes in a U shape, sensing distance of 30mm, Response time of Max. 1ms. The standard fork photo sensor can be used in diverse applications requiring non-contact detection of Opaque material.
As a quick report, this photoelectric sensor provides:
- Through-beam sensing type
- Sensing Cannel: 1-channel
- 30mm sensing distance
- Opaque material of min. Ø1.5mm sensing target
- Infrared LED (940nm) Light source
- 12-24 VDC ±10% (ripple P-P: max. 10%) power supply
- NPN Open collector control output
- Operation mode: Light ON/Dark ON (set by control wire)
- Sensitivity adjuster
- ≤ 30 mA Current consumption
- Reverse power protection circuit, output short overcurrent protection circuit
- IP50 ingress protection structure according to IEC standards
Body
This Autonics photoelectric sensor’s case is made of ABS, its Cap is made of PC.
The BUP-30S features IP50 ingress protection.
Connection
The Autonics sensor BUP-30S features standard cable type connection. This cable covers the sensor’s 4 wires. It is Ø4mm in diameter and 2 meters in length.
Sensing specifications
The sensing target for this photoelectric sensor is Opaque material of min. Ø1.5mm. The maximum distance that this sensor can detect its standard sensing target is 30mm. This so-called sensing distance differs from one sensing target to another, based on their material.
Control output
The BUP-30S features NPN open collector control output.
Temperature
There are limitations in temperature and humidity in which BUP-30S photoelectric sensor is used:
- Storage temperature: -25 … 70°C
- Storage humidity: 35 to 85%RH
- Ambient temperature: -10 … 60°C
- Ambient humidity: 35 to 85%RH
Environment resistance is rated at no freezing or condensation.
Industries / Applications
- Application example of automation system
- Potato chip manufacturing and packaging process
- Packaging Material Inspection
- Elevator Car Position Control
- Elevator Car Drive Operation
